Quick Details
-
Material:
-
glass fused to steel, glass fused steel
-
Weight:
-
1000
-
Size:
-
1000, 20m3 t0 18000 m3
-
Power:
-
100
-
Weight (KG):
-
1000 kg
-
Type:
-
bolted steel tank
-
Application:
-
water storage , waste management digester
-
Certification:
-
NSF , BSCI
-
Other name:
-
glass lined steel tank , glass fused steel tank , vitreous steel tank
-
color:
-
dark green, dark blue, and customized
-
design standard:
-
AWWA D-103 , OSHA
-
After Warranty Service:
-
Video technical support
Quick Details
-
Core Components:
-
storage tanks
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Shijiazhuang Zhengzhong Technology Co., Ltd
-
Material:
-
glass fused to steel, glass fused steel
-
Weight:
-
1000
-
Size:
-
1000, 20m3 t0 18000 m3
-
Power:
-
100
-
Weight (KG):
-
1000 kg
-
Type:
-
bolted steel tank
-
Application:
-
water storage , waste management digester
-
Certification:
-
NSF , BSCI
-
Other name:
-
glass lined steel tank , glass fused steel tank , vitreous steel tank
-
color:
-
dark green, dark blue, and customized
-
design standard:
-
AWWA D-103 , OSHA
-
After Warranty Service:
-
Video technical support
durable Fusion Bonded Epoxy Tanks As vegetable oils tank
Note: Dear Customer, different volumes of tanks have different prices, please consult our online sales for the quotation of every tank before you place an order. Thank you!
Fusion-Boned Epoxy Steel Tanks Specification
|
Application |
Test Standard |
Result |
|
Coating Color |
Standard RAL 5015 sky blue |
Other colors are available |
|
Dry Film Thickness
|
Average Dry Thickness
|
5~10 mils /125 ~250 microns(internal) 5~10 mils /125 ~250 microns(epoxy primer+ topcoat) |
|
Holiday Test |
≥1100V (all panels) |
Zero-discontinuity at test voltage |
|
Hot water immersion 90 days, 70° |
AWWA C550-05 |
Meets/exceeds standard |
|
Corrosion Resistance |
Salt Spray ISO 9227/ASTM B117 |
Pass |
|
Impact Resistance |
ASTM D2794 |
Pass 160 in-ibs direct & reverse impact |
|
PH Range |
3~12 |
|
|
Abrasion Resistance |
Adhesion ASTM D3359 |
Adhesion ASTM D3359 |
|
Hardness |
ISO15184 / ASTM D3363 |
2H |
|
Chemical Immersion test |
50% NaOH, 50% H2S04 |
Meets/exceeds industry standard |
|
UV Resistance |
outdoor exposure testing |
5 years |
|
Color Stability |
outdoor exposure testing |
5 years |

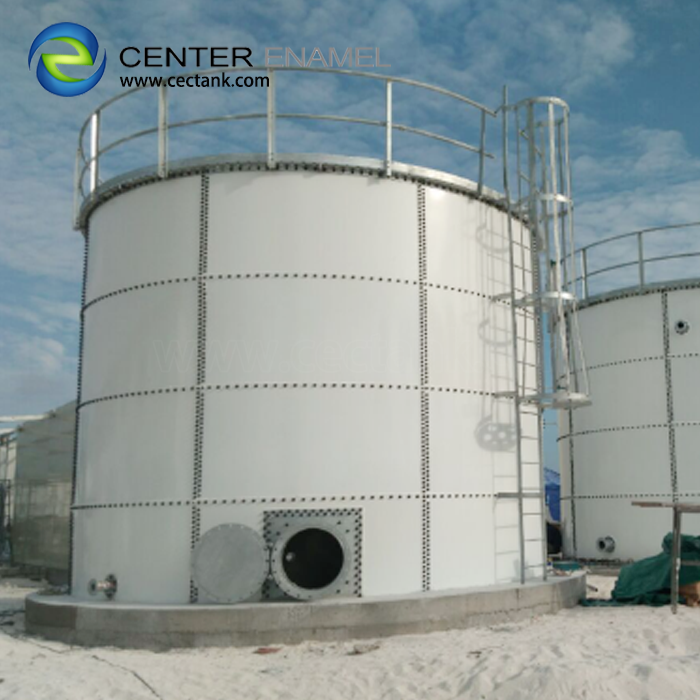

Shijiazhuang Zhongzhong Technology Co., Ltd (Center Enamel) . is a leading global storage tank manufacturer. The company adheres to independent research and continuous innovation, developing numerous advanced and environmentally friendly products guided by the market. It is not only the first manufacturer of Glass Fused To Steel Tank tanks in China but also the most experienced bolted tank manufacturer in Asia. The product range includes Glass Fused To Steel Tank tanks, fusion bonded epoxy tanks, stainless steel tanks, galvanized tanks, and aluminum dome roof s, providing global customers with services such as tank design and manufacturing, installation, commissioning, and technical support.
The engineering design, product testing, and quality system of Center Enamel 's products strictly adhere to international standards such as AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA, and others. The tanks are widely used in drinking water, industrial wastewater, urban sewage, bioenergy, leachate from landfills, agriculture, and other applications.
To date, Center Enamel 's products have been exported to more than 90 countries, including the United States, Australia, Canada, Malaysia, Indonesia, Russia, the United Arab Emirates, Panama, Brazil, South Africa, etc. As an outstanding tank system supplier with over 30 years of experience, Shijiazhuang Zhongzhong Technology Co., Ltd. sincerely hopes to establish long-term cooperative relationships with local partners worldwide, contributing continuously to the development of the industry.
