Quick Details
-
Brand Name:
-
CVR
-
Model Number:
-
W-9
-
Dimension (L x W x H):
-
932X360X530mm(Wxhxd)
-
Type:
-
Line Array System
-
Size:
-
2X12" Lf, 2X8 Mf, 2X3 Hf
-
Frequency Response:
-
52Hz-20kHz 3dB
-
Sensitivity:
-
Lf104dB, Mf108dB, Hf111dB
-
Material:
-
Neodymium outdoor speaker
-
Finish:
-
Water-Proof,Birch Plywood
-
Net Weight:
-
55kg
-
Dimension:
-
932X360X530mm(Wxhxd)
-
Warranty:
-
Two Years Free Warranty
Quick Details
-
Power:
-
(RMS)Lf2X600W, Mf500W, Hf200W, (RMS)Lf2X600W, Mf500W, Hf200W
-
Frequency Range (Hz):
-
NA
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CVR
-
Model Number:
-
W-9
-
Dimension (L x W x H):
-
932X360X530mm(Wxhxd)
-
Type:
-
Line Array System
-
Size:
-
2X12" Lf, 2X8 Mf, 2X3 Hf
-
Frequency Response:
-
52Hz-20kHz 3dB
-
Sensitivity:
-
Lf104dB, Mf108dB, Hf111dB
-
Material:
-
Neodymium outdoor speaker
-
Finish:
-
Water-Proof,Birch Plywood
-
Net Weight:
-
55kg
-
Dimension:
-
932X360X530mm(Wxhxd)
-
Warranty:
-
Two Years Free Warranty

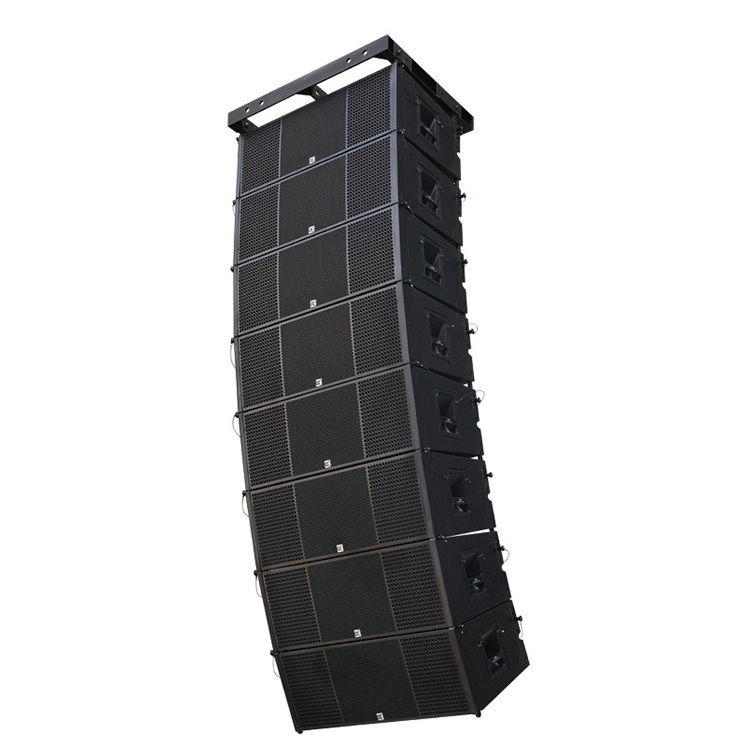

CVR professional line array system outdoor speakers
DESCRIPTION & APPLICATION
The W-9 professional line array system outdoor speaker which is made of two 12''neodymium woofers, two high sensitivity 8'' midrange speaker units, two 3'' titanium neodymium compression drivers,the drivers by two independent plane wave converter, with a innovative directly horn which generate parallel wave in the front.
W-9 speaker box is trapezoid shaped, hi, mid, low driver units all with independent horn output, which improved the speaker sound, maximum lowed the intervention between the drivers. The precise positioning position between the driver units which verified the speaker box very small, but also to ensure the gap between the cabinet to cabinet minimize. Even several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application W-9 professional line array system outdoor speaker performance excellent to large stadiums, big outdoor concerts, commercial events, etc.
TECHNICAL SPECIFICATIONS
|
Model |
W-9 |
|
Type |
professional line array system outdoor speaker |
|
Frequency Response |
52Hz-20KHz±3dB |
|
Power handling |
LF 2×600W(RMS)2×1200W(PEAK) |
|
|
MF 500W(RMS)1000W(PEAK) |
|
|
HF 200W(RMS)400W(PEAK) |
|
Sensitivity |
LF 104dB(1W@1M) |
|
|
MF 108dB(1W@1M) |
|
|
HF 111dB(1W@1M) |
|
Max S.P.L |
LF 135dB(PEAK/1M) |
|
|
MF 135dB(PEAK/1M) |
|
|
HF 134dB(PEAK/1M) |
|
LF section |
2×12" (310mm)neodymium woofer |
|
|
75mm(3in) coil |
|
Nominal impedance |
8 ohm |
|
MF section |
2×8" (210mm)neodymium MF |
|
|
65mm(2.5in)coil |
|
Nominal impedance |
8 ohm |
|
HF section |
2×3"neodymium compression driver |
|
|
with 75mm titanium diaphragm |
|
Nominal impedance |
16 ohm |
|
Output section |
3-channel |
|
Dispersion pattern |
110°H×7.5°V |
|
Finish |
Water-proof,wear-resistant textured black paint |
|
Array design |
Arrays of less than 3×W-9 will |
|
|
provide poor dispersion control and |
|
|
are neither recommended nor supported |
|
Speaker cables |
LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-) |
|
Rigging system |
Please refer to the W-9 user |
|
|
manual before any operation |
|
Input connectors |
2×Neutrik NL8 |
|
Recommend crossover |
LF 60Hz-250Hz |
|
|
MF 250Hz-1.8kHz |
|
|
HF 1.8kHz-20KHz |
|
Dimensions |
932×360×530mm(W×H×D) |
|
Package dimensions |
1000×430×600mm/0.26cbm |
|
Enclosure |
Birch Plywood |
|
Net weight |
55kg |
|
Gross weight |
59kg |
QUALITY NEODYMIUM SPEAKERS
APPLICATIONS
Several boxes combination can also with a precise point forming a line array group, resulting in excellent sound quality, each box is installed with hanging assembly, can be convenient for hanging, assembling, which application professional line array system outdoor speaker performance excellent to large stadiums, big outdoor concerts, commercial events, etc.
