JYP125 Mini lathe machine multi-purpose mini mill/drill combo lathe milling /drilling lathe machine

JYP125 Mini lathe machine multi-purpose mini mill/drill combo lathe milling /drilling lathe machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $499

≥20 Sets

US $459

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Range of Spindle Speed(r.p.m):: 560 - 2500 r.p.m

Max. Turned Length (mm):: 100 mm

Spindle Motor Power(kW):: 120W

Year:: NEW

Place of Origin:: China

Brand Name:: RICHON/INTEGRITY

Model Number:: JYP125

Voltage:: 220V-240V

Dimension(L*W*H):: 57*35*48CM

Weight (KG):: 25 KG

Core Components:: Other

Name:: Lathe Machine

Machine Type:: Horizontal Metal Turning combination Lathe Machine

Product type:: Economical Lathe

Function:: Metal Turning

Automatic Grade:: Semi-automatic Lathe

Key word1:: manual lathe, drilling machines, drilling milling machines

Key words2:: drill lathe

Precision:: High Precision Machine

CNC or Not:: Nomal

Usage:: Mechanical Metal Lathe Cutting

Quick Details

Max. Length of Workpiece (mm):: 180 mm

Machining Capacity:: Light Duty

Spindle Bore(mm):: 9mm

Range of Spindle Speed(r.p.m):: 560 - 2500 r.p.m

Max. Turned Length (mm):: 100 mm

Spindle Motor Power(kW):: 120W

Year:: NEW

Place of Origin:: China

Brand Name:: RICHON/INTEGRITY

Model Number:: JYP125

Voltage:: 220V-240V

Dimension(L*W*H):: 57*35*48CM

Weight (KG):: 25 KG

Core Components:: Other

Name:: Lathe Machine

Machine Type:: Horizontal Metal Turning combination Lathe Machine

Product type:: Economical Lathe

Function:: Metal Turning

Automatic Grade:: Semi-automatic Lathe

Key word1:: manual lathe, drilling machines, drilling milling machines

Key words2:: drill lathe

Precision:: High Precision Machine

CNC or Not:: Nomal

Usage:: Mechanical Metal Lathe Cutting

Click here to get quotation

PRODUCT DESCRIPTION

METAL TURNING , MILLING , DRILLING

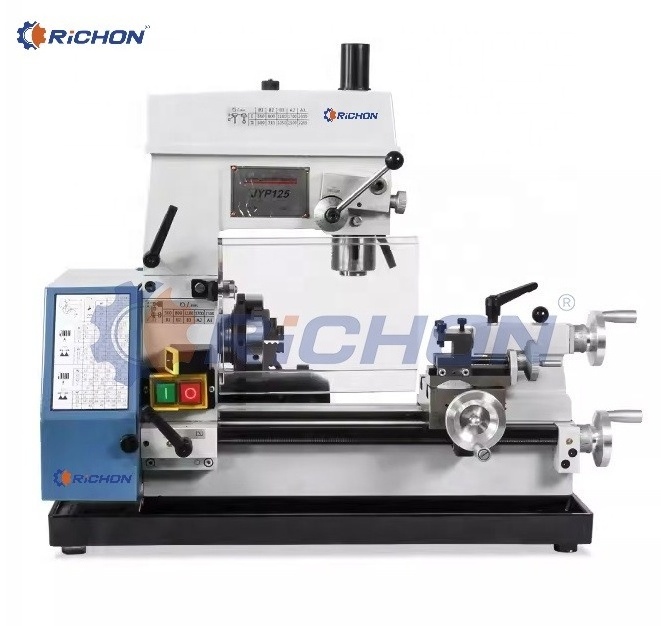

JYP125 multifunctional

micro mini machine

Mini turning, drilling and milling machine

cast iron body, all-metal gears, can process aluminum parts, copper parts, wood nylon, etc.

suitable for school laboratory teaching demonstrations, home DIY small aircraft parts, watch parts repair.

Turning function	Maximum workpiece rotation diameter on the bed	125mm
		Maximum workpiece length	180mm
		Maximum workpiece rotation diameter on the tool holder	60mm
		Spindle through hole diameter	9mm
		Spindle taper hole	MT.1
		Number of metric threads processed	8
		Machining metric thread pitch range	0.4-1.5mm
		Number of inch threads processed	8
		Processing inch thread pitch range	0.0028-0.005 1/n''
		Longitudinal feed level	2
		Longitudinal feed amount of tool holder per spindle revolution	0.07-0.14mm
		Tailstock sleeve travel	18mm
		Tailstock sleeve tapered hole	MT.1
		Spindle speed range and series	560-2500 r/min 5steps
		Motor Power	120W
Drilling and milling funtion	Maximum drilling diameter	6mm
		Distance from spindle end face to worktable	180mm
		Distance from spindle centerline to column surface	125mm
		Rotation angle of the main drilling and milling head box around the column	360°
		Spindle speed range and series	500-2500 r/min 10steps
		Drilling and milling head box vertical lifting stroke	60mm
		Working surface length and width	85*60mm
		Workbench T-slot width	8mm
		Spindle sleeve movement amount	40mm
OTHER	Weight	22/25kg
		Machine size	523041cm
		Packing size	573548cm
