Quick Details
-
Fiber Type:
-
G652D
-
Fiber count:
-
48 core as request
-
Central Strength Member:
-
FRP
-
Loose Tube:
-
PBT
-
Filler Rope:
-
LDPE
-
Outer Sheath:
-
MDPE
-
Armour:
-
Aramid yarn
-
Water Blocking Layer:
-
Flooding compound
-
Span length:
-
120m
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Brand Name:
-
Wabao or OEM
-
Model Number:
-
ADSS
-
Place of Origin:
-
Shanghai, China
-
Fiber Type:
-
G652D
-
Fiber count:
-
48 core as request
-
Central Strength Member:
-
FRP
-
Loose Tube:
-
PBT
-
Filler Rope:
-
LDPE
-
Outer Sheath:
-
MDPE
-
Armour:
-
Aramid yarn
-
Water Blocking Layer:
-
Flooding compound
-
Span length:
-
120m
-
Certification:
-
CE/ROHS/ISO9001

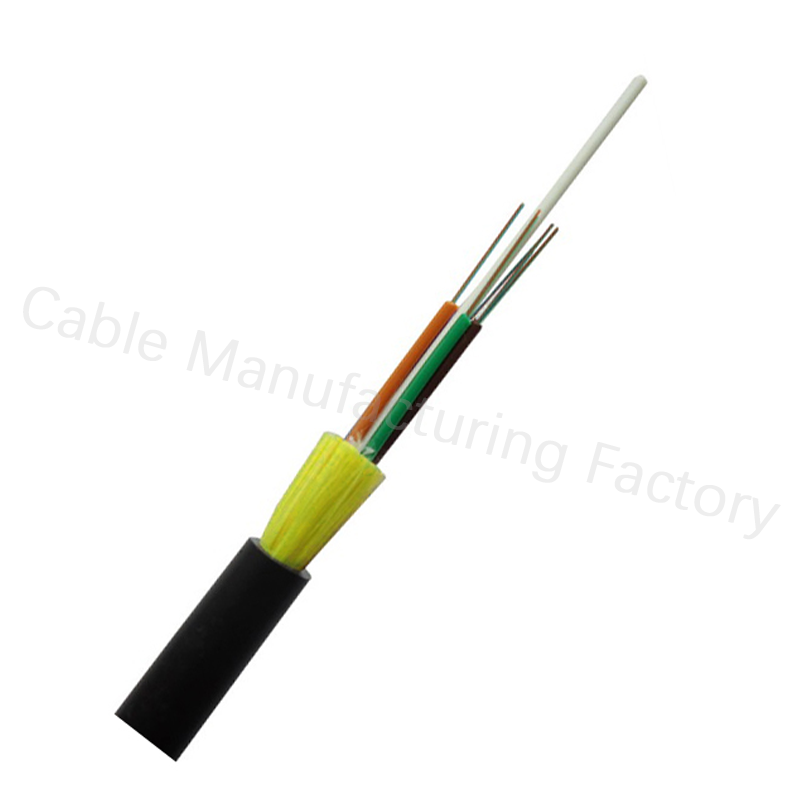

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with stranded layer of aramid yarns and then the cable is completed with PE outer sheath.
The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied. The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans.
Feature
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths
* Good performance of tensile strength and temperature
* The design life span is 30 years
Technical data
|
No. of cable
|
|
|
48
|
||
|
Design(StrengthMember+Tube&Filler)
|
|
|
1+5
|
||
|
Fiber type
|
|
|
G.652D
|
||
|
|
|
Material
|
FRP
|
||
|
|
|
Diameter(±0.05mm)
|
1.5
|
||
|
|
|
Material
|
PBT
|
||
|
|
|
Diameter(±0.05mm)
|
2.1
|
||
|
|
|
Thickness(±0.03mm)
|
0.35
|
||
|
|
|
MAX.NO./per
|
12
|
||
|
Water Blocking Layer
|
|
Material
|
Water blocking yarn& Water blocking tape
|
||
|
Additional Strength Member
|
|
Material
|
Aramid Yarn
|
||
|
|
|
Material
|
MDPE
|
||
|
|
|
Thickness
|
1.8（nominal）
|
||
|
|
|
Color
|
Black.
|
||
|
Cable Diameter(±0.2mm)
|
|
10.3
|
|
||
|
Cable Weight(±10.0kg/km)
|
|
72
|
|
||
|
Attenuation(dB/km)
|
1310nm
|
≤0.35
|
|
||
|
Coefficient
|
1550nm
|
≤0.21
|
|
||
|
Cable breaking strength(RTS)
|
|
7
|
|
||
|
Working Tension (MAT)
|
|
2.8
|
|
||
|
Span Length
|
|
120
|
|
||
|
Crush Resistance(N/100)
|
Short Term
|
2200
|
|
||
|
|
Long Term
|
1100
|
|
||
|
Min. bending radius(mm)
|
Without Tension
|
10.0×Cable-φ
|
|
||
|
|
Under Maximum Tension
|
20.0×Cable-φ
|
|
||
|
Temperature range（℃）
|
Installation
|
-20~+60
|
|
||
|
|
Transport&Storage
|
-40~+70
|
|
||
|
|
Operation
|
-40~+70
|
|
||
Application
