- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MP
-
Model Number:
-
MP23850
-
Model:
-
MP238/50
-
No load current(A):
-
12A
-
Output Power:
-
35KW
-
KV:
-
70
-
MAX AMP:
-
350A
-
ESC:
-
120V 500A
-
Shaft:
-
15mm Accessory
-
RESISTANCE (omh)::
-
0.0052
-
Size:
-
238/50( without shaft )
Quick Details
-
Speed(RPM):
-
5000
-
Continuous Current(A):
-
150A, 180A
-
Efficiency:
-
90%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MP
-
Model Number:
-
MP23850
-
Model:
-
MP238/50
-
No load current(A):
-
12A
-
Output Power:
-
35KW
-
KV:
-
70
-
MAX AMP:
-
350A
-
ESC:
-
120V 500A
-
Shaft:
-
15mm Accessory
-
RESISTANCE (omh)::
-
0.0052
-
Size:
-
238/50( without shaft )
MP238/50 30KW max power and 18kw rated power Motor
Model No: MP238/50 70KV brushless motor
Max voltage: 100V
Max current: 350A
Rated current: 170A
No load current: 12..2A
Resistance: 0.0052ohm
Dimension: 238mm*50mm
Weight: 5kg
ESC: 120V 500A
Thrust: 85kg-90kg
Propeller: 4213 or 5095 carbon fiber propeller

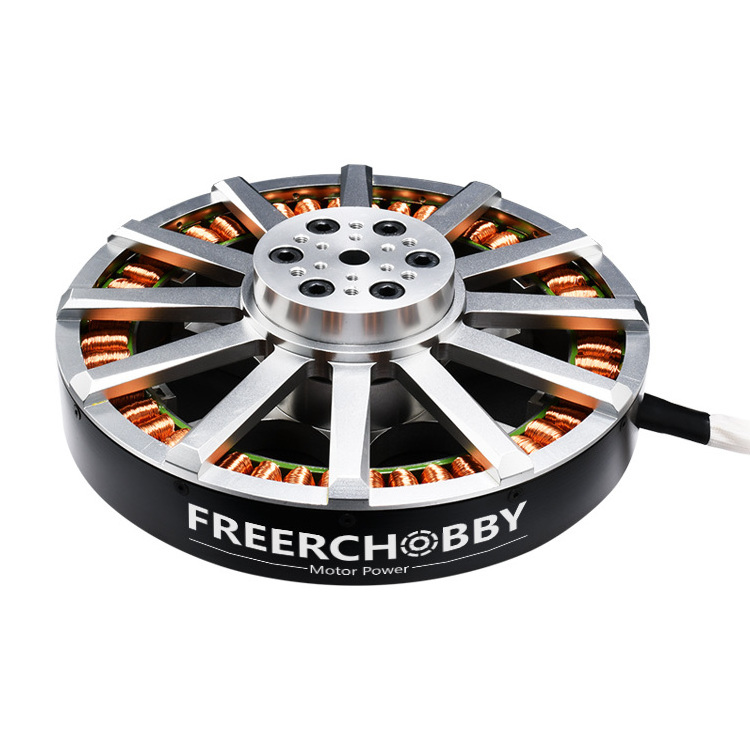

Product Picture:
| Motor: 238/50 ESC: 120V 500A ESC Prop:4295 | |||||
| KV | Voltage(v) | Current(A) | Thrust(kg) | RMP | Temp(degree) |
| 48 | 109 | 31 | 20.6 | 2560 | 32.6 |
| 48 | 109 | 60 | 33.3 | 3200 | 36 |
| 48 | 109 | 90 | 45 | 3720 | 38 |
| 48 | 109 | 120 | 53 | 4030 | 39 |
| 48 | 109 | 150 | 62.6 | 4320 | 40 |
| 48 | 109 | 171 | 70 | 4500 | / |
| 48 | 109 | 190 | 72 | 4580 | 55 |
