Quick Details
-
Brand Name:
-
SMARTS
-
Color:
-
White
-
Max power:
-
0.95w
-
waterproof rate:
-
IP20
-
Dimming Mode:
-
Dimming, 1CH
-
Input Voltage Range:
-
110-265V
-
Output:
-
DALI Signal
-
Physical Size(mm):
-
86*86*40mm
-
Certificate:
-
CE, RoHS
-
N.W./pcs:
-
0.19kg
-
Trade term:
-
EXW
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
MANUAL SWITCH
-
Place of Origin:
-
China
-
Brand Name:
-
SMARTS
-
Color:
-
White
-
Max power:
-
0.95w
-
waterproof rate:
-
IP20
-
Dimming Mode:
-
Dimming, 1CH
-
Input Voltage Range:
-
110-265V
-
Output:
-
DALI Signal
-
Physical Size(mm):
-
86*86*40mm
-
Certificate:
-
CE, RoHS
-
N.W./pcs:
-
0.19kg
-
Trade term:
-
EXW

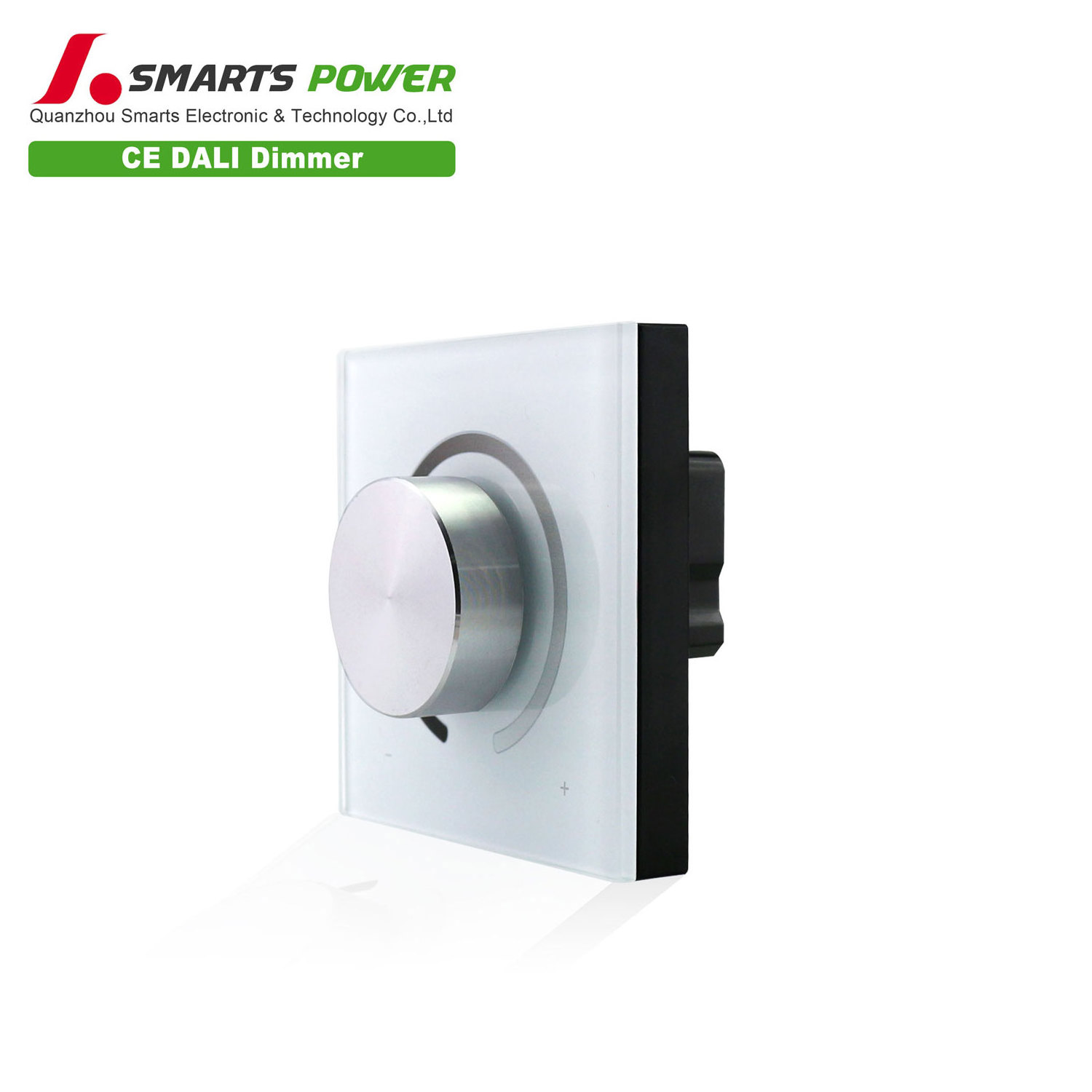

12v strip light dimmer dali wall light control switch ce 240v
| Technical Parameters | Feature | |
| Input Voltage | 110-265VAC |
1)DALI dimming way: dimming by broadcasting direct arc power level
2)Max output current:65mA DC .It could be connected 32 DALI drivers if maximuin consumption current is 2mA of each driver. 3)Led indicator : When the dimmer is ON ,the led indicator is OFF. When the dimmer is OFF ,the led indicatore is ON |
| Frequency | 50/60Hz | |
| Output Voltage | 16V (+/-5%) | |
| Output Current | 65mA | |
| Output Power | 0.95W | |
| Working Temp. | -20-50℃ | |
| Size | 86*86*51mm (L*W*H) | |
| Weight | 190G | |
Part of Device
Wiring Diagram
Operation
Short press the dimmer is ON/OFF
When the dimmer is ON ,long press the rotary key to dim the brightness up or down.
When the dimmer is off ,long press the rotary key to turn on dimmer and dim the brightness as well.
When the dimmer is ON ,rotate the rotary key to fine brightness.
Working Principle
1.AC Input directly and provide 65mA output current to the DALI signal line
2.With memory function, when power is on, it could automatically return to the state before power-off.
3.Add a power-off detection circuit, EEPROM could be done only if power failure , to avoid continuous
reading and writing EEPROM in order to extend the service life of the dimmer
Instruction manual
