Quick Details
-
Application:
-
construction
-
Rated Lifting Moment:
-
1250KN.m
-
Span:
-
60m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Weight (KG):
-
45000 kg
-
Color:
-
Yellow or optional
-
Electric components:
-
Schneider
-
Tower section:
-
Sheet-mounted type for high quality tower crane
-
Section dimension:
-
1.6*1.6*3m or 1.85*1.85*3.0m
-
Working environment temperature:
-
-20℃~40℃
-
Raw materials:
-
high quality manganese steel for flat-top tower crane
-
Configurations:
-
air conditioner, black box and remote control
-
Company type:
-
factory for crane
Quick Details
-
Rated Loading Capacity:
-
8t
-
Max. Lifting Height:
-
163m
-
Marketing Type:
-
POPULAR
-
Application:
-
construction
-
Rated Lifting Moment:
-
1250KN.m
-
Span:
-
60m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HAISHAN
-
Weight (KG):
-
45000 kg
-
Color:
-
Yellow or optional
-
Electric components:
-
Schneider
-
Tower section:
-
Sheet-mounted type for high quality tower crane
-
Section dimension:
-
1.6*1.6*3m or 1.85*1.85*3.0m
-
Working environment temperature:
-
-20℃~40℃
-
Raw materials:
-
high quality manganese steel for flat-top tower crane
-
Configurations:
-
air conditioner, black box and remote control
-
Company type:
-
factory for crane
Our factory
11 years golden suppier in China, exported to more than 50 countries. 25 years history.

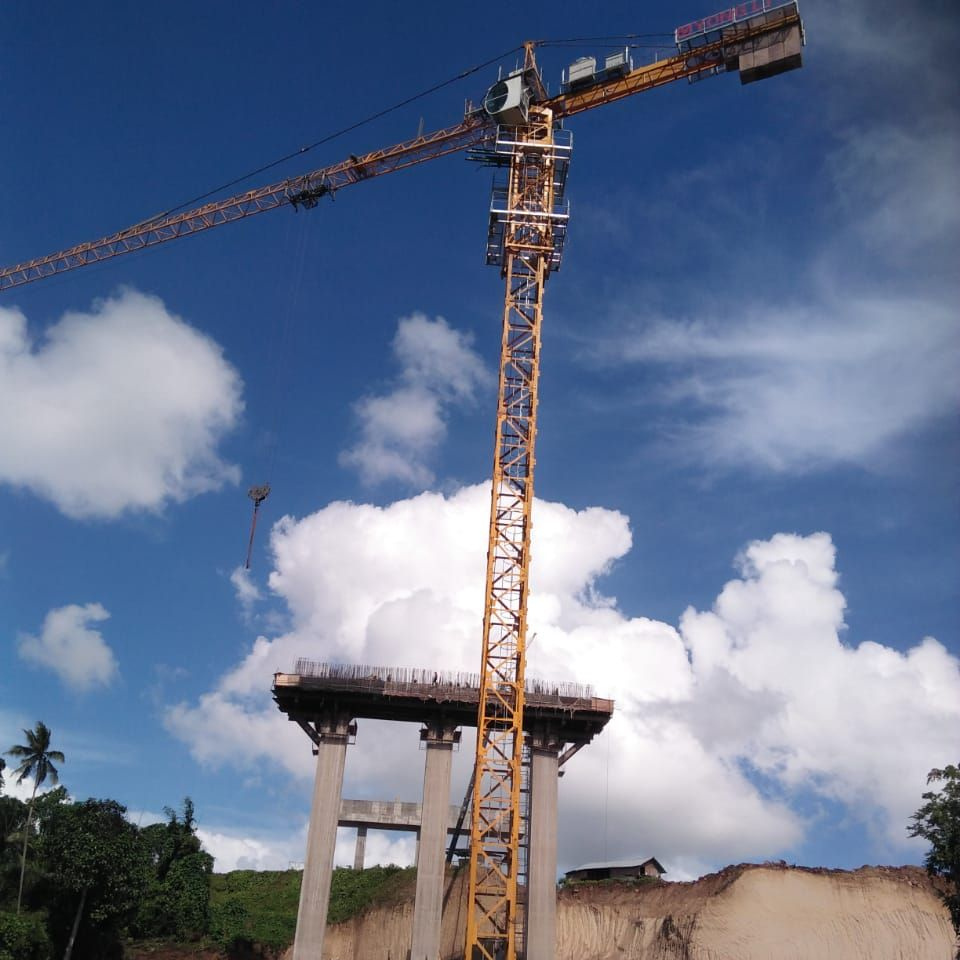

8T Tower Crane for Sale
1.1 The tower could be heightened with hydraulic climbing standard sections, and the tower height could be adjusted according to the actual building height, and the tower crane lifting capability wont be affected even it is heightened.
1.2 High working speed, good speed adjusting performance, stable operation and high working efficiency. The lifting mechanism adopts tri-speed motor and single reduction ratio reducer, and could realize functions of low speed with heavy load and high speed with light load. The luffing carriage could move along the horizontal boom to realize the radius changing, and it is easy to be installed. Slewing mechanism adopts planetary gear reducer, equipped with moment limiting type coupling, and it has functions of high lifting capacity, stable startup, reliable working condition, and working normal in wind, etc.
1.3 Wide working range and wide application.
Through changing and adjusting some parts or associated devices, the tower crane could be installed independently from or attached to a building, to meet different requirements. The max lifting height could reach to 120m under attached installation method (multiply factor 2), and 29m to be supply height under stationary type.
1.4 Various kinds of safety devices are equipped to guarantee working safe and reliable.
It is equipped with the following safety devices: lifting height limit switch, carriage luffing limit switch, slewing limit switch, moment limit device and lifting weight limit device, etc.
1.5 The driver cabin is laid aside independently, with god sight vision, which creates a good operation environment for operator. Reasonable layout of the whole equipment, which appears to be comfortable.
1.6 The lifting boom adopts rigid dual tension bar to be supporting parts, which structured to be simple.
1.7 Convenient operation and easy to be maintained.
