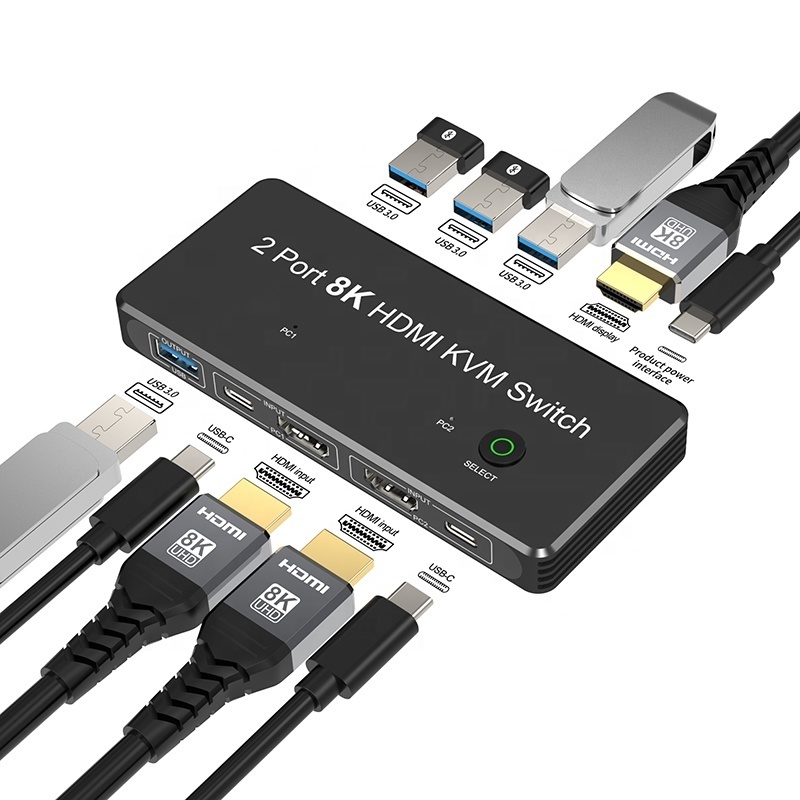

8K 2Port HDMI 2 Port KVM Switch 2x1 2 In 1 Out USB 3.0 KVM Switch HDMI 2.1 Switcher 2 Input 1 Output Support Led Indicators

2Port HDMI 2.1 8K KVM Switch,This HDMI Switchers allows you to connect
from two PCs(via HDMI to HDMI or mini dp to HDMI,usb-c to HDMI,DP to
HDMI cables) to One Monitors(via HDMI to HDMI or HDMI to DP cables),you
can press"SELECT"button to switch between two pcs.***While
using,plugging one USB-A to USB-C cable in "Input DC/5V Port"to your USB
Devices to power the switch is necessary

HDMI KVM Switch dual one HDMI Monitor with 4xUSB3.0 Output Port,2 PCs
sharing the same one USB Keyboard,USB Mouse,USB Printer,USB Disks etc.
Notes: If you would like to make your connected USB Devices work,you
must connect the USB-A to USB-C Cables from the PC1 Input Port or PC2
Input Port to your comouter which you have pluged HDMI Cables(or
relatively cables),If not plug in,USB Devices will not work***.This
ensure the Switch can work like an USB Hub.

HDMI 2.1 4K@120Hz Video Output,with this switch,you can max output
8K@60Hz 4K@120Hz resolution in your external HDMI Monitor,This requires
that your PCs and Relatively Cables/Monitors both supports the max
resolution you would like to output.Two Personal Computers share one
Screen(press"select"button to switch between them).***The HDMI 8K Cable
max supports 2m+2m

Widely used in many occasions,this HDMI 2.1 KVM Switch can be used in
many occasions, solve the problem of lack of USB devices**.If you have
two pcs,but you have only one set of keyboard,mouse,u-disks,by using our
This KVM Switch,you can easily to control two of your computers by
pluging mouse,keyboard,U-disks in our switcher's USB Output Port(Switch
between two PCs)

Guide to Use this HDMI 2.1 KVM Switcher:

1:Connect the "Input PC1 and Input PC2"s HDMI Port to your two PCs via your own
HDMI Cables(or USB-C to HDMI,Mini displayport to HDMI cables)

2:Connect the USB-C Port beside the HDMI in the"Input PC1 and Input PC2"via our
Supplied USB-C to USB-A cables to your PCs which had plugged HDMI cable
in.Please note that the USB-A to USB-C cable can only be plugged into
the computer with the HDMI cables connected, not other computers.

3:Connect the"HDMI Output"Port to your Monitors via your own HDMI to HDMI or HDMI to DP Cables.

4:Connect the ”Input DC/5V"Port to your usb devices to power the switch via the
Supplied USB-A to USB-C cable.Note:this is necessary,or the switch would
not work.

5:Connect the 4xUSB3.0 Output to your USB Devices,like USB
Mouse,USB Keyboard,USB Disks,USB Printer etc.Note:If you would like to
make the USB Devices work,you must connect the USB-A to USB-C Cables
from the PC1 Input Port or PC2 Input Port to your computer which you
have pluged HDMI Cable(or relatively cables).

6:Press"Select"Button
to switch between two HDMI PCs.If one PC's screen appears in the
external Monitor,The corresponding LED indicator will show blue.

Notes While Using:

1: If you would like to output 8K@60Hz or 4K@120Hz via our switch in your
external Monitor,your PC ,your cables and your monitors should all
support 8K@60Hz or 4K@120Hz
2:The USB-C Port in HDMI Input 1 and HDMI
Input 2 is used for connecting to your PCs(the PC which had plugged DP
cable in) to work as USB Hub,it is stritcly forbidden to connect to USB
Hub or Docking Directly.The USB-C 5V DC Port is only used to connect to
power the switch..
