Quick Details
-
Voltage:
-
380V
-
Power:
-
18.5kw
-
Dimension(L*W*H):
-
1.8x1.8x12m
-
Weight (KG):
-
20000
-
Usage:
-
Drying Wet Materials
-
Heating source:
-
coal,natural gas,diesel,bimoass
-
Raw material:
-
Multiple Material
-
Advantage:
-
Energy saving
-
Application material:
-
sand,ore,sawdust,Cow Chicken Manure,etc
-
Color:
-
Gray
-
Dryig process:
-
Continuous rotary type
-
Installation:
-
Dispatch Engineer
-
Temp. Range:
-
80-600°C
-
Product name:
-
Rotary dryer
Quick Details
-
Type:
-
Rotary Drying Equipment
-
Place of Origin:
-
China
-
Brand Name:
-
Zhongke
-
Voltage:
-
380V
-
Power:
-
18.5kw
-
Dimension(L*W*H):
-
1.8x1.8x12m
-
Weight (KG):
-
20000
-
Usage:
-
Drying Wet Materials
-
Heating source:
-
coal,natural gas,diesel,bimoass
-
Raw material:
-
Multiple Material
-
Advantage:
-
Energy saving
-
Application material:
-
sand,ore,sawdust,Cow Chicken Manure,etc
-
Color:
-
Gray
-
Dryig process:
-
Continuous rotary type
-
Installation:
-
Dispatch Engineer
-
Temp. Range:
-
80-600°C
-
Product name:
-
Rotary dryer
ROTARY DRYER
(DRYING MACHINE)
Rotary drier is mainly used in construction metallurgy chemistry cement industries for drying slag clay and so on The rotary drier is made up of the rotary shell lifting plate driving device supporting device and sealing ring The rotary drier have the advantage of reasonable design best fabric high capacity, lower in energy consumption and easy to control.
1.Single Drum Dryer (rotary dryer)
it is a drying machine used to dispose masses of materials.
Single drum dryer is widely used in the field of building materials, metallurgies, chemical industry, cement and so on. it can dry slag, coal powder, mining powder, clay, sand, limestone and so on. It is made into rotary body, lifting blade, driving device, supporting device etc. It adopt the reasonable operation parameters and it also reduce the coal and power consumption by more than 10- 15% increases the output by more than 10- 15% compared with the general dryers.
2.Performance Feature
1.simple structure; 2 polishing produdtion; 3.high capacity; 4.low energy-consumption.
3.Working Principle
The heat sources of the dryer is from the combustion train. Because of the tilting device of dryer, when the materials enter into the body from the feeding device, i will flow to the bottom end under the infuence of gravity, as the drier is in an inclined position. This process makes the material well-distributed in the body, then ensure the heat exchange with the heat wind. After repeated cycle with this process,the moisture content will be dried and discharged from the dryer.
The heat sources of the dryer is from the combustion train. Because of the tilting device of dryer, when the materials enter into the body from the feeding device, i will flow to the bottom end under the infuence of gravity, as the drier is in an inclined position. This process makes the material well-distributed in the body, then ensure the heat exchange with the heat wind. After repeated cycle with this process,the moisture content will be dried and discharged from the dryer.
Main technical parameters
|
Spec.(m)
|
capacity(t/h)
|
Main motor
|
|
Main reducer
|
|
Weight(t)
|
||
|
|
|
Power(kw)
|
Model
|
Model
|
Speed ratio
|
|
||
|
F1.2×10
|
6-8
|
7.5
|
Y160M-6
|
ZL50-16-1
|
31.5
|
12.5
|
||
|
F1.5×12
|
8-12
|
15
|
180L-6
|
JZQ500-III-2F
|
31.5
|
16.5
|
||
|
F1.5×15
|
12-16
|
18.5
|
Y200L-6
|
JZQ500-llI-2F
|
31.5
|
18
|
||
|
F1.8×12
|
18-20
|
18.5
|
Y200L-6
|
ZQ50-16Il-2
|
31.5
|
20
|
||
|
F2.2×12
|
22-28
|
22
|
Y160L-6
|
JZQ650-llI
|
31.5
|
37.6
|
||
|
F2.2×14
|
26-30
|
22
|
Y160L-6
|
JZQ750-lll
|
31.5
|
40
|
||
|
F2.4×14
|
30-35
|
30
|
Y250M-6
|
JZQ750-III
|
31.5
|
51
|
||
|
F2.4×18
|
35-40
|
37
|
Y250M-6
|
ZL85-13-1
|
27.16
|
54
|
||
|
F2.4×20
|
38-42
|
37
|
Y250M-6
|
ZL85-13-1
|
27.16
|
54.14
|
||
|
F2.8×20
|
43-50
|
45
|
Y280s-6
|
ZL85-13-1
|
27.16
|
71
|
||
|
F3x20
|
45-55
|
55
|
Y250M-4
|
ZL100-16-1
|
41.52
|
78
|
||
|
F3x25
|
58-70
|
75
|
YR280M-4
|
ZL100-16-1
|
41.52
|
93
|
||
|
F3.2×25
|
75-90
|
90
|
Y315M-6
|
ZSY315-22-lI
|
22.4
|
156
|
||
|
F3.6×25
|
95-110
|
160
|
Y355L1-4
|
ZSY500-35
|
35.5
|
170
|
||
|
F3.6×28
|
80-140
|
200
|
Y355L2-4
|
ZSY500-35
|
35.5
|
180
|
||
1.Introduction of three drum dryer
Three drum rotary dryer is mainly used for drying a certain humidity and size of granular materials, such as yellow sand used in dry powder and mortar, various specifications of sand used in a foundry industry blast, furnace slag used in building materials and cement industry, clay in a small size, small materials which have no chemical changes, resists high temperature and are with flyblown dust, used in chemical industry. In according with the request of materials and water in different industries, water in materials which are dried can be below 1-0.5%.
2.Working principle
1. Materials will be constantly lifted up by lifting boards, and scattered in spiral type to make hot exchange.
2. And then, material will be moved to middle layer of drum for countercurrent drying, and materials in middle layer of drum will be constantly lifted up by lifting boards. Materials in middle layer of drum can both full absorb heat generated by inner drum layer, and heat generated by middle drum layer, while extend drying time, so materials reached its driest state in this process.
3. Material can move to the outer drum layer from the middle drum layer, material reached the drying effect will be discharged fast along with hot air, while wet materials have not meet the drying effect can' t move quickly due to high weight, so wet material can get adequate drying to reach drying effect thus achieve to complete the drying process.
Schematic Diagram
Main technical parameters
|
Model
|
T/H
|
|
|
|
Coal consumpation
g/T Dry
|
Power(kw)
|
|||
|
|
Slag
|
Fly ash
|
Clay
|
Yellow sand
|
|
|
|||
|
Φ2.0×4
|
5-10
|
4
|
4-6
|
10-15
|
12-14
|
11
|
|||
|
Φ2.0×5
|
10-15
|
6
|
6-8
|
15-20
|
12-14
|
11
|
|||
|
Φ2.5×5
|
20-25
|
8
|
8-12
|
20-25
|
10-12
|
15
|
|||
|
Φ2.5×6
|
25-30
|
10
|
12-15
|
25-30
|
10-12
|
15
|
|||
|
Φ2.8×6
|
30-35
|
15
|
15-20
|
35-40
|
10-12
|
22
|
|||
|
Φ3.0×6
|
35-40
|
20
|
20-25
|
40-45
|
8-10
|
30
|
|||
|
Φ3.0×7
|
40-45
|
25
|
25-30
|
45-50
|
8-10
|
30
|
|||
|
Φ3.2×7
|
45-50
|
30
|
30-35
|
50-60
|
8-10
|
44
|
|||
|
Φ3.2×8
|
50-60
|
35-40
|
35-40
|
60-70
|
6-8
|
44
|
|||
|
Φ3.6×8
|
60-70
|
40-45
|
40-45
|
70-80
|
6-8
|
60
|
|||
|
Φ3.8×9
|
70-80
|
45-50
|
45-50
|
80-90
|
6-8
|
60
|
|||
|
Φ4.0×10
|
80-90
|
50-60
|
50-60
|
90-100
|
6-8
|
74
|
|||
Applicable Materials
Dryer is mainly used for drying materials with humidity or granularity in the industries of mining.construction material, metallurgy and chemical. And it has strong adaptability to the materials and can dry various materials.Besides, it has simple structure and reliable operation.
In our company, this series applies the new type scatter plate device, and it has many functions, such as direction guide, flow equalization, scattering material and so on.And it can make the material uniformly distributed at radial cross section.Contact the heat airflow completely and use the heat energy fully.Moreover, it adopts reasonable operational parameter, and compared with general dryers, it reduces the coal and power consumption by more than 10-15%, and increases the output by more than10-15%.At present,it is widely used in cement and mining industries.
1.Cow dung 2.Chicken manure 3.Sawdust 4.rice husk 5.Biomass
1.vinasse 2.sand 3.sludge 4.marble 5.Phosphate rock
1.Calcium ore 2.platinum 3.Nickel ore 4.Calcite 5.dolomite
1.Chromium ore 2.Cobalt ore 3.granite 4.Gold mine 5.Chemical Industry
1.Building material 2.talc 3.Magnesium ore 4.Bauxite 5.Gangue
1.Aluminum ore 2.Bentonite 3.Manganese ore
Product details
Installation Site
More Products

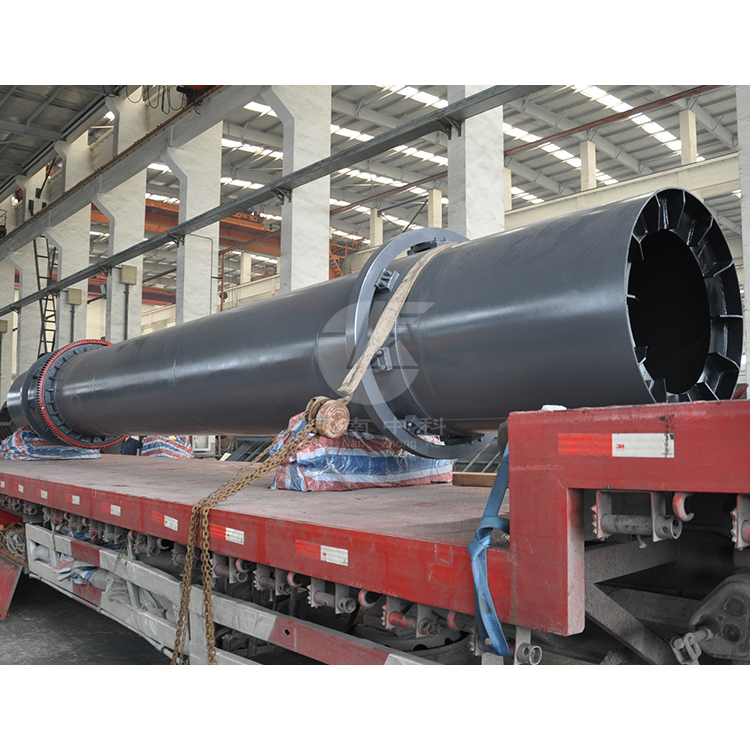

Packaging & Shipping
Packaging Details:
We will make different packaging according to different machine sizes .standard international export packing, container, wooden box.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
