- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Flora
-
Voltage:
-
210-230 V Single Phase
-
Dimensions(L*W*H):
-
353x140x85cm
-
Weight:
-
620 KG
-
Marketing Type:
-
Digital Inkjet UV Printer
-
Warranty of core components:
-
Please Contact for Details
-
Product Name:
-
UV printer large format
-
Application:
-
Advertisement Printing Machine
-
Print head:
-
Epson Industrial Printing Heads
-
Print speed:
-
Up to 178 Sqm/h
-
Resolution:
-
Up to 720x2400dpi
-
Color:
-
CMYK color
-
Accessories:
-
LED Lamp
-
Printing Size:
-
2000/3200x50000mm
-
Key words:
-
UV inkjet printer
Quick Details
-
Print Dimension:
-
150mm, 300mm, 320mm, 400mm, 500mm, 600mm, 650mm, 700mm, 800mm, 960mm, 1000mm, 1200mm, 1300mm, 1600mm, 1800mm, 1850mm, 1900mm, 2100mm, 2500mm, 3200mm, 200mm*200mm, 210mm*290mm, 210mm*300mm, 297mm*210mm, 300mm*210mm, 300mm*500mm, 300mm*420mm, 300mm*450mm, 330mm*420mm, 330mm*600mm, 320mm*450mm, 400mm*300mm, 600mm*600mm, 600mm*900mm, 650mm*600mm, 650mm*900mm, 900mm*600mm, 2500mm*1300mm, 2500mm*6000mm, A1, A2, A3, A4, A5
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV Ink
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Flora
-
Voltage:
-
210-230 V Single Phase
-
Dimensions(L*W*H):
-
353x140x85cm
-
Weight:
-
620 KG
-
Marketing Type:
-
Digital Inkjet UV Printer
-
Warranty of core components:
-
Please Contact for Details
-
Product Name:
-
UV printer large format
-
Application:
-
Advertisement Printing Machine
-
Print head:
-
Epson Industrial Printing Heads
-
Print speed:
-
Up to 178 Sqm/h
-
Resolution:
-
Up to 720x2400dpi
-
Color:
-
CMYK color
-
Accessories:
-
LED Lamp
-
Printing Size:
-
2000/3200x50000mm
-
Key words:
-
UV inkjet printer
Printing Machine Description and Parameters

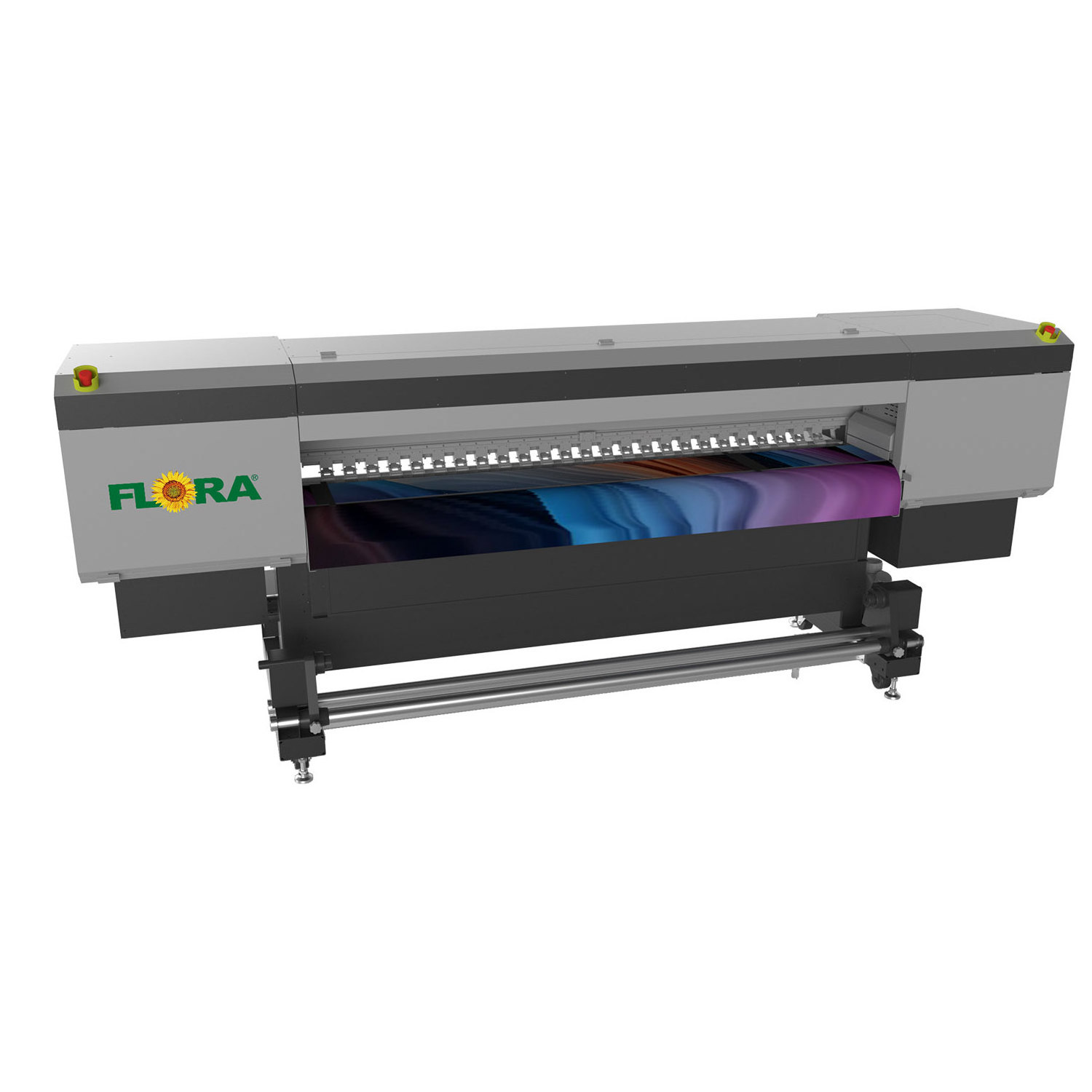

R20/R32 Large Format Digital UV Printer
Features
1. Printhead technology Each head is equipped with independent built-in heating devices.
1. Printhead technology Each head is equipped with independent built-in heating devices.
Each head supports dual-negative pressure ink-suction system.
2.Media transfer system
Printing platform with adjustable vacuum to support continuous printing without stop printing. Different material with different thickness gain same flatness on the platform.Printing precision is guaranteed.
Industrial level feed-in&take-up system to guarantee accurate stepping and waveless
Carriage anti-crash system is equipped for safe printing.
3.
lnk supply system
Preliminary ink system applies 1.5L cartridge, with ink-overflow and ink-drain alarm.
White ink supply is built-in independent ink blending system.
Subtank supports independent ink purge function.
4.
Negative adjustment system
Lung-type negative air tank ensures more negative pressure. Automatic negative pressure adjustment guarantees ink supply more fluent during printing.
With Night Neg-pressure Protection mode, printer can print directly without new maintenance after restart.
5.Electronic system
Printing system supports color scheme of 6 colors.
LED lamp system supports thermal protection and timeout protection functions.
Special Hot Points
Industrial level EPSON inkjet head application
Supporting LC,L,M, WHITE color extension
Ultra high printing resolution up to 720*2400dpi
2000mm/3200mm large format printing
Printing-on-demand technology
color-white-color, white-color, white-color multiple printing modes
High productivity, up to 178m sqm/hr in large feather mode
|
Technical Parameters
|
|
|
|
Model
|
R20 Large Format Digital UV Printer
|
|
|
Printhead
|
Epson Industrial Level Piezoelectric Inkjet Head
|
|
|
Print Speed
|
R20: 145/73/55 sqm/hr.
R32: 178/90/67 sqm/hr.
|
|
|
Resolution
|
Up to 720x2400dpi
|
|
|
Ink Type
|
LED UV Ink
|
|
|
Color Scheme
|
CMYK 4 Color
|
|
|
LED UV Lamp
|
LED Cold Light Souse with Low Energy Consumption, Long Working Life
|
|
|
Cartridge Capacity
|
1.5L/Color
|
|
|
Media Loading
|
Roll to Roll Industry Feeding and Take Up Device with Tension System
|
|
|
Media Height
|
Max 3mm
|
|
|
Printing Format
|
R20: 2000x50000mm
R32: 3200x50000mm
|
|
|
Data Interface
|
High Speed USB 3.0 Port
|
|
|
RIP Software
|
Flora edition Photoprint, Caldera, ONYX for option
|
|
|
PC Configuration
|
Win 7 ,CUP I7, RAM 8GB
|
|
|
Color Management
|
ICC Base Color, Adjustment Curves, Density Adjustment
|
|
|
File Format
|
Tiff, Jpeg, Jpg, Postscript，PDF，EPS, etc
|
|
|
Printer Dimension
|
R20: 3528x1400x850mm
R32: 4728x1400x850mm
|
|
|
Printer Weight (N/G)
|
R20: 550kg / 620kg
R32: 700kg / 780kg
|
|
|
Package Dimension
|
R20: 1650x1500x1000mm
R32: 4850x1500x1000mm
|
|
|
Temperature
|
20-35℃
|
|
|
Humidity
|
20%~80%,non-condensing
|
|
|
Power
|
Single phase,AC 210V-230V,50/60HZ.16A max,350Ow
|
|
Printer Details Images
Company RTZ Flora Profile
Exhibition Events
Certifications
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Machine Packages
the R20 / R32 Large Format Digital UV Printer
Printer Size：
R20 : 3528 x 1400 x 850 mm
R32 : 4728 x 1400 x 850mm
Package size:
R20 : 3650 x 1500 x 1000 m
m
R32 : 4850 x 1500 x 1000 mm
Weight (Net / Gross):
R20 : 550kg/620kg
R32 : 700kg/780kg
FAQ
1.Are you the factory or trading company?
A:Yes, we are the only one Flora store on Alibaba, and RTZ company directly. You are connecting the manufacturer directly.
2.How long for warranty if I buy from you?
A:12 months warranty for the machine, do not include the consumable like inks.
3.I am worry about the technical problems,how will you deal with it?
A:We have many located dealers in different country, we can offer you lacated technical support or online technical support.You do not need to worry about it.
4.It is value goods, how I can protect the bulk payment?
A:We would support T/T, L/C payment by Alibaba Trade Assurance, and also the located dealer connection for negociation face to face.
5.How can I be the only distributor on my country?
A:Please contact us, and hope we are the best cooperators.
