5075-1515 Newest WorkBee CNC Router Mechanical Kit with Tingle Tensioning Screw Driven 4 Axis CNC DIY Wood Metal Engraver

5075-1515 Newest WorkBee CNC Router Mechanical Kit with Tingle Tensioning Screw Driven 4 Axis CNC DIY Wood Metal Engraver

FOB Reference Price: Get Latest Price

≥1 Sets

US $322

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Positioning Accuracy (mm):: 0.05 mm

No. of Spindles:: N/A

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 1270 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Spindle Motor Power(kW):: N/A

Place of Origin:: Guangdong, China

Brand Name:: BULK-MAN 3D

Voltage:: Switchable 110-220V Input

Dimension(L*W*H):: 500x750mm ~ 1500x1500mm

Power (kW):: 2.2

Weight (KG):: 41

Product name:: WorkBee CNC Machanical Kit

Frame Material:: 6063-T5 Aluminum

Extrusion Color:: Black & Sliver Anodized

Drive System:: T8 ACME Lead Screws Or GT3 Timing Belts

Linear Guides:: Polycarbonate wheels on anodised C-Beam V-Slot Extrusion

Motors:: NEMA23 Stepper Motors (X, Y & Z)

Accuracy:: 0.05 - 0.10mm (Screw Driven) Or 0.10 - 0.20mm (Belt Driven)

Application:: Woodworking,Engraving,Cutting, etc.

Quick Details

Working Table Size(mm):: 1300x1270mm

Machine Type:: CNC Router

Range of Spindle Speed(r.p.m):: 8000 - 12000 rpm

Positioning Accuracy (mm):: 0.05 mm

No. of Spindles:: N/A

Travel (X Axis)(mm):: 1300 mm

Travel (Y Axis)(mm):: 1270 mm

Repeatability (X/Y/Z) (mm):: 0.05 mm

Spindle Motor Power(kW):: N/A

Place of Origin:: Guangdong, China

Brand Name:: BULK-MAN 3D

Voltage:: Switchable 110-220V Input

Dimension(L*W*H):: 500x750mm ~ 1500x1500mm

Power (kW):: 2.2

Weight (KG):: 41

Product name:: WorkBee CNC Machanical Kit

Frame Material:: 6063-T5 Aluminum

Extrusion Color:: Black & Sliver Anodized

Drive System:: T8 ACME Lead Screws Or GT3 Timing Belts

Linear Guides:: Polycarbonate wheels on anodised C-Beam V-Slot Extrusion

Motors:: NEMA23 Stepper Motors (X, Y & Z)

Accuracy:: 0.05 - 0.10mm (Screw Driven) Or 0.10 - 0.20mm (Belt Driven)

Application:: Woodworking,Engraving,Cutting, etc.

Products Description

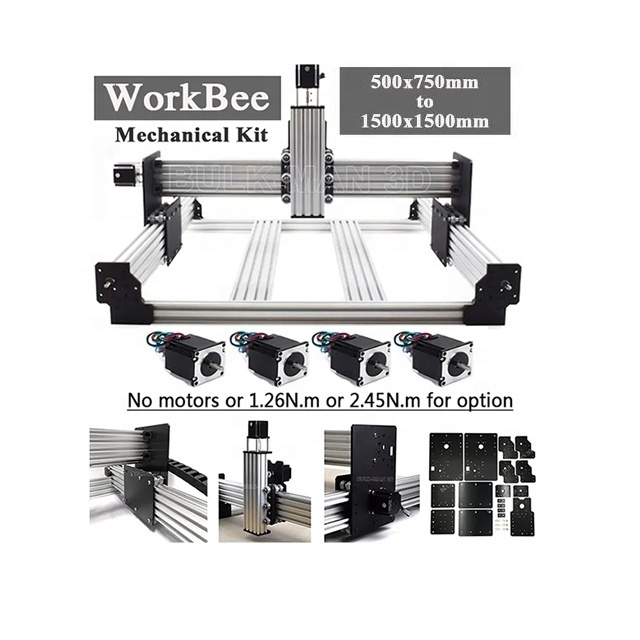

500x750mm-1500x1500mm WorkBee CNC Mechanical Kit

The Bulk Man 3D WorkBee was originally designed by Ryan Lock of Ooznest UK, and it incorporates many upgrades. It is a super-strong, accurate and easy to assemble CNC machine.

The WorkBee CNC design has gone through different changes. WorkBee Version 1 originally had the leadscrews placed in compression. All Bulk Man 3D's WorkBee kits now sold are Version 2.2 , with the major differences being the use of leadscrew tensioner and longer leadscrews in the X and Y Axis. This helps to solve the problem of Whipping when for long length or faster Speed.

Based on C-Beam, V-Slot, Xtreme Solid V-Wheels and TR8x8(P2) Leadscrews it is reliable. It has been carefully designed and can accurately cut foams, woods, plastics and aluminium to 0.1-0.2 mm accuracy or better.

The simplicity in design makes the WorkBee CNC Machine a great machine for someone who is new to CNC Machining.

The WorkBee CNC Machine is a 4 axis (3 + 1) machine, this means there are 3 physical axis (X,Y,Z) and a slave axis of Y which is called the A Axis. The WorkBee CNC Machine uses specific lengths of Extrusions and Leadscrews.

With a WorkBee CNC Kit you can manufacture functional engineering parts, toys, signs, or whatever you can imagine without leaving the workshop.

This Mechanical Kit Includes
* 500x750- 1500x1500mm (for option) WorkBee CNC Mechanical Kit
* No Motors , 4 x Nema23( 1.26N.m / 2.45N.m ) Stepper Motors ( Optional )
* All Extrusions are M5 Tapped where necessary

To meet the needs of some customers, we offer no motors ir normal (1.26N.m)motors

or High Torque(2.45N.m)motors for customers to choose.

Please Note:

* MDF Working Table, Spindle, Driver Board etc and other electronics are not included with

this kit.
* We do not provide technical support for software debugging.
Customers need to log in the official website to download or buy the software. (GRBL is free to download, Mach3 need to buy license from their official website) GRBL: https://github.com/grbl/grbl/wiki Mach3: http://www.machsupport.com/software/mach3/
* Any Mains power connections must be installed by a Licensed electrician or suitability

qualified person.
* Instruction Manualis available via Bulk Man 3D Official Website

https://bulkman3d.com/resources/

* This full kit is default to send Screw Driven , if you need Belt Driven , please kindly leave a

message to us.

WorkBee Mechanical Frame sizes available options:

Item No.	Item	Frame Size	Working Area
WB-5075	WorkBee CNC Mechanical Kit	500x750mm	300x520mm
WB-7575			750x750mm	550x520mm
WB-7510			750x1000mm	550x770mm
WB-1010			1000x1000mm	800x770mm
WB-1015			1000x1500mm	800x1270mm
WB-1515			1500x1500mm	1300x1270mm

Compatible Material for Cutting/Milling/Engraving:
Aluminium / Hard Wood / Soft Wood / Oak / Plexi Glass / Delrin / HDPE / Foam

Specs of Nema23( 1.26N.m) Stepper Motor: * NEMA 23 * Shaft Size: 1/4″ * Step Angle: 1.8 * Holding Torque: 1.26 N.m * Rated voltage: 3.36 V * Rated current: 2.8 A

Specs of Nema23( 2.45N.m) Stepper Motor:

* NEMA 23 (High Torque) Shaft

* Size: 1/4″

* Step Angle: 1.8

* Holding Torque: 2.45 N.m

* Rated voltage: 3.6 V

* Rated current: 3 A

WorkBee CNC Specs

Motion

Drive System - ACME Lead Screws Or GT3 Timing Belts

Linear Guides - Polycarbonate wheels on anodised C-Beam V-Slot Extrusion.

Motors - NEMA23 175oz Stepper Motors (X, Y & Z)

Accuracy - 0.05 - 0.10mm (Screw Driven) Or 0.10 - 0.20mm (Belt Driven)

Note - Maximum recommended speed for Lead Screws 1000mm or greater is 400RPM.

Z Height

54mm Or 94mm Travel, 27mm Or 47mm Workable depth, with a 12mm spoilerboard. The spoilerboard supports have two height configurations, these are the maximums for each configuration.

" V-Slot " and " C-Beam " are registered trademarks of OpenBuilds LLC as released under the Creative Commons Licence "Attribution-ShareAlike"

All our components are designed to work and are fully compatible with the products produced by OpenBuilds.
