Quick Details
-
Brand Name:
-
Corey
-
Power:
-
220V/380V or as your local
-
Dimension(L*W*H):
-
As per different model
-
Weight:
-
12000 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Planetray Mixer
-
Capacity:
-
60-180m3/h
-
Name:
-
Foundation Free Concrete Batching Batching Plant
-
Type:
-
Building Construction Tools
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Building Works
-
Batching Machine:
-
PLD Batching Machine
-
Model:
-
HZS60/90/120/180
-
Mixer:
-
Certificates Portable Mobile
Quick Details
-
Machine Type:
-
Production line
-
Marketing Type:
-
New Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Corey
-
Power:
-
220V/380V or as your local
-
Dimension(L*W*H):
-
As per different model
-
Weight:
-
12000 kg
-
Product name:
-
Concrete Mixing Plant
-
Keyword:
-
Planetray Mixer
-
Capacity:
-
60-180m3/h
-
Name:
-
Foundation Free Concrete Batching Batching Plant
-
Type:
-
Building Construction Tools
-
After-sales Service Provided:
-
Engineers
-
Application:
-
Building Works
-
Batching Machine:
-
PLD Batching Machine
-
Model:
-
HZS60/90/120/180
-
Mixer:
-
Certificates Portable Mobile
Product Introduction

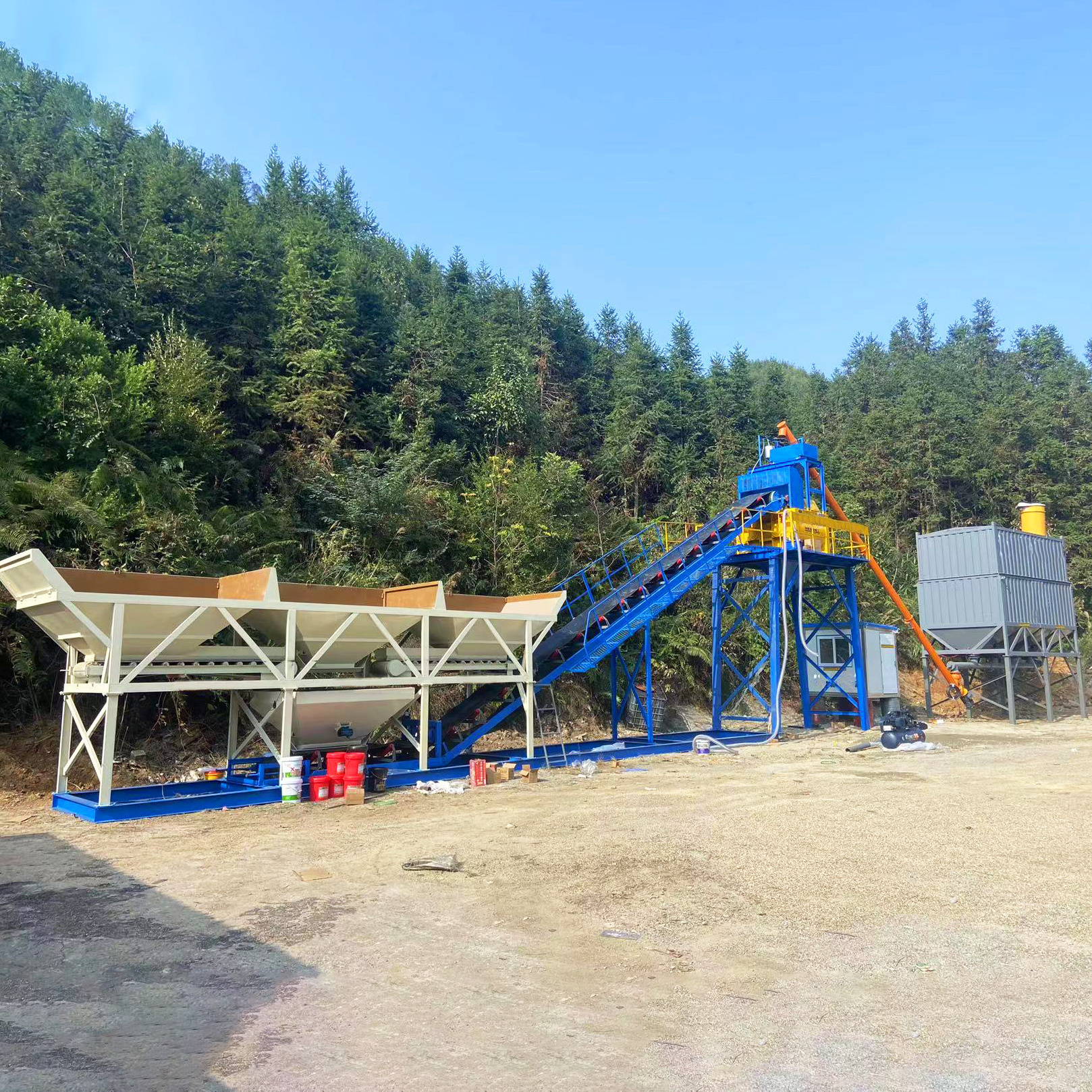

Foundation-free concrete mixing station no need for excavation of foundations; the equipment can be directly placed on hardened ground for quick use, reducing the cost and time required for foundation construction.
Product Details
JS （500-3000）Mixing Machine
Mixing system selection JS/SICOMA twin shaft concrete mixer, high efficiency, high mixing quality.
Steel Frame
Base frame of the host: standard channel steel 32# Host leg: 4.54 meters, 6mm thick Ф273 round tube Structural are durable.
Belt Feeder and Midway Storage Silo
Fast feeding speed, large conveying distance, high efficiency, reduce failure
Aggregate Batching Machine
PLD800, PLD1200, PLD1600, PLD2400, PLD3200, PLD4800, PLD6400 is available
Measuring System
Powder and water are measured using electronic scales, ensuring high batching accuracy.
Control System
Computer plus PLC control system to ensure smart and stable operation, dynamic panel display can make the operator clearly
Cement Silos
Customized 20t/50t/100t/150t/200t etc.
Screw Conveyors
Good sealing, closed trough, long conveying distance
If you want to see more related products,
please click here
Factory Show
We are specialized in manufacturing concrete mixing plant factory, doing export for more than 12 years. Diversified mixing plant customization, common fixed mixing plant, mobile mixing plant, drum mobile mixing plant truck, foundation-free simple mixing plant, etc., you can also according to the site conditions we can provide you with suitable for your mixing plant program to build, choose us you can quickly get the product offer, no middleman to earn the difference in price, the price will make you satisfied, we have professional engineers and technicians are responsible for your product installation guidance and We have professional engineers and technicians responsible for your product installation guidance and lifelong after-sales service.Welcome to visit our factory!
|
Operation Process:
|
|
1. The operation process involves using a loader to shovel materials from sand and stone piles into the corresponding storage bins of the aggregate batching machine.
|
|
2. The mate rials are discharged from the storage bins into the weighing hopper of the batching machine through a
cylinder-operated door. |
|
3. The weighing hopper measures the materials using a three-point gravity sensor.
|
|
4. The weighed aggregates are then transported to the waiting storage bin through flat and inclined belt conveyors.
|
|
5. Meanwhile, cement and fly ash stored in the powder tank are measured and tran sported to the weighing hopper for weighing using a screw conveyor.
|
|
6. Water is pumped into the water weighing tank for measurement.
|
|
7. After weighing, the aggregates are fed into the concrete mixer separately using a secondary feeding method. The mixed concrete is discharged into concrete transit trucks through a cylinder or hydraulic pump, completing one cycle.
|
Packaging
