Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Voltage:
-
110-240v
-
Power:
-
50w
-
Dimension(L*W*H):
-
450mm*650mm*1020mm
-
Weight (KG):
-
50
-
Application:
-
Automatic Powder Coating
-
Cable Length:
-
3.5M
-
Keywords:
-
Strong Electrostatic
-
Color:
-
Yellow
-
package weight:
-
50kg
-
Powder Pump:
-
1 set
-
Barrel material:
-
Stainless Steel
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Metal coating machinery
-
Marketing Type:
-
New Product 2024
-
Core Components:
-
Circuit
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Mingderixin
-
Voltage:
-
110-240v
-
Power:
-
50w
-
Dimension(L*W*H):
-
450mm*650mm*1020mm
-
Weight (KG):
-
50
-
Application:
-
Automatic Powder Coating
-
Cable Length:
-
3.5M
-
Keywords:
-
Strong Electrostatic
-
Color:
-
Yellow
-
package weight:
-
50kg
-
Powder Pump:
-
1 set
-
Barrel material:
-
Stainless Steel
-
Certification:
-
CE
automatic powder coating machine best price powder coating machine for aluminium from China famous supplier

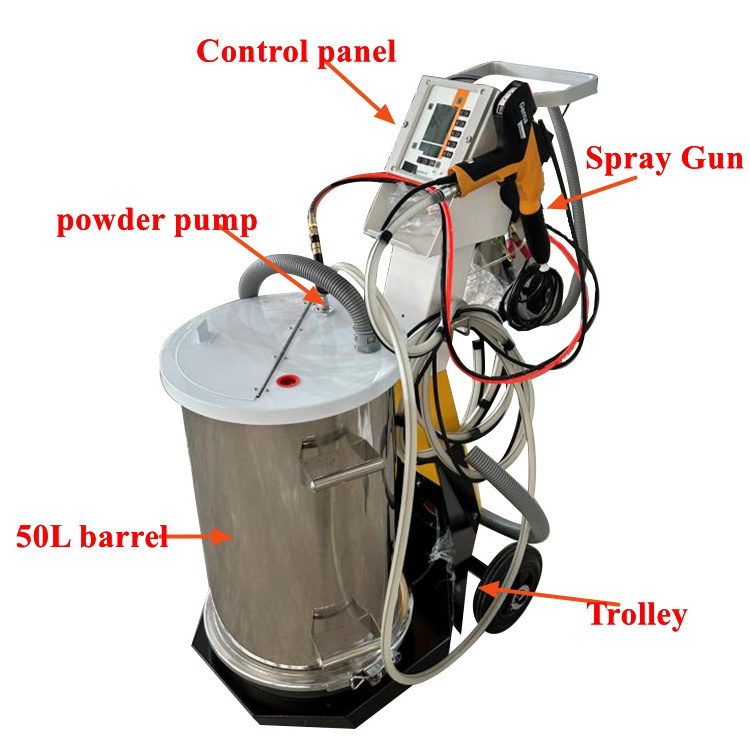

1-Specification
|
Part Name |
Quantity |
|
Gun |
1 SET |
|
Controller |
1 SET |
|
Low Temperature Soft Powder Pipe |
1 SET / 3.5Meters |
|
Vertical Powder Pump |
1 SET |
|
Stainless Steel Barrel |
1 SET / 40L |
|
Overflow Pipe |
1 SET |
|
Movable Trolley |
1 SET |
|
Oil and Water Separator |
1 SET |
|
Consumables |
Some |
2- Parameters
|
Electric Parameters |
||
|
1 |
Supply Voltage |
220-240V,customized |
|
2 |
Frequency |
50-60hz |
|
3 |
Power |
50W |
|
4 |
Security Grade |
IP54 |
|
5 |
Working Temperature |
0-40C |
|
Air Supply Parameters |
||
|
1 |
Compressed air of main interface diameters |
8meters |
|
2 |
Input air pressure |
4-8Bar |
|
3 |
Maximum Water Content |
1.3g/m3 |
|
4 |
Maximum Oil Content |
0.1mg/m3 |
|
Spraying Gun Parameters |
||
|
1 |
Maximum Output Voltage |
120kv |
|
2 |
Maximum Output Current |
120 µ A |
|
3 |
The length of Powder Tube |
3.5meters |
|
4 |
The length of Cable |
3.5meters |
|
5 |
The Maximum Powder Output |
650g/min |
|
Package ( Fumigation-free Wooden Box) |
||
|
1 |
Size |
500mm(L)*500mm(W)*1020mm(H) |
|
2 |
Weight |
58KG |
3- Advantage
1,Digital control system,display preset Voltage and currency at the same time.
2,Preset Voltage and currency be set by knobs, easy to operate.
3,Alarm automatically if over the preset parameters
4,Adjust the output static electricity automatically according the change of workpiece’s size and distance
5,Could supply large amount powder under low pressure.
6,The inside circuit region is Independent sea, avoiding the powder incoming.
7,Good quality pressure gauge
8,Good quality dust-proof powder switch
9,Control the useless power strictly,low heating value,work continuously and steadily.
4-Other Models
|
No. |
Model |
Name |
|
1 |
MD-SG01 |
Top Quality Powder Coating Spray Machine |
|
2 |
MD-SG02 |
Barrel Powder Coating Spray Machine |
|
3 |
MD-SG03 |
Enamel Powder Coating Spray Machine |
|
4 |
MD-SG04 |
Vibration Base Powder Coating Spray Machine |
|
5 |
MD-SG05 |
Automatic Powder Coating Spray Machine |
|
6 |
MD-SG06 |
Testing Powder Coating Spray Machine |
|
7 |
MD-SG07 |
Economical Powder Coating Spray Machine |
|
Choose your favorite one according to your requirement |
||
5-Customer Powder Coating Effect Show
