Quick Details
-
Model Number:
-
semi automatic
-
Dimension(L*W*H):
-
35m*9m*3m
-
Weight:
-
5000 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380v
-
Power:
-
50hz
-
Key Machines:
-
Battery Module Laser Welding Machine
-
Product name:
-

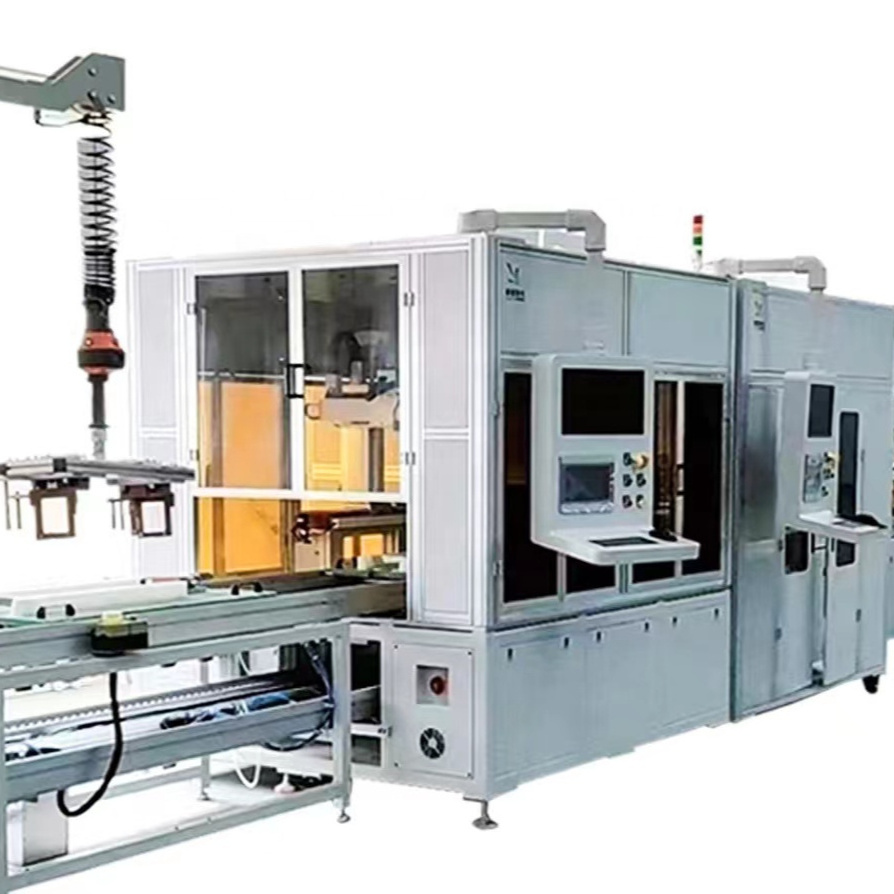

lithium battery module assembly line
-
R Axis:
-
Optional, 360° rotation
-
Position Accuracy:
-
±0.02mm
-
Repeatability Accuracy:
-
±0.01mm
-
Motion Source:
-
Step motor or Servo motor
-
Max Speed:
-
500mm/s
-
Cooling Method:
-
Water cooling
-
Electricity Demand:
-
Customizable
-
Laser Wavelength:
-
1080nm
-
Gas Protection:
-
Optional, Argon, Nitrogen
Quick Details
-
Machinery Capacity:
-
10PPM
-
Brand Name:
-
Huiyao Laser
-
Year:
-
2022
-
Model Number:
-
semi automatic
-
Dimension(L*W*H):
-
35m*9m*3m
-
Weight:
-
5000 KG
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380v
-
Power:
-
50hz
-
Key Machines:
-
Battery Module Laser Welding Machine
-
Product name:
-
lithium battery module assembly line
-
R Axis:
-
Optional, 360° rotation
-
Position Accuracy:
-
±0.02mm
-
Repeatability Accuracy:
-
±0.01mm
-
Motion Source:
-
Step motor or Servo motor
-
Max Speed:
-
500mm/s
-
Cooling Method:
-
Water cooling
-
Electricity Demand:
-
Customizable
-
Laser Wavelength:
-
1080nm
-
Gas Protection:
-
Optional, Argon, Nitrogen
Production Process
Lithium battery
Lithium battery module
Product Features
|
XYZ Travel
|
Customizable
|
|
R Axis
|
Optional, 360° rotation
|
|
Position Accuracy
|
±0.02mm
|
|
Repeatability Accuracy
|
±0.01mm
|
|
Motion Source
|
Step motor or Servo motor
|
|
Max Speed
|
500mm/s
|
|
Cooling Method
|
Water cooling
|
|
Electricity Demand
|
Customizable
|
|
Laser Wavelength
|
1080nm
|
|
Observation Syatem
|
CCD system
|
|
Gas Protection
|
Optional, Argon, Nitrogen
|
|
Environmental Requirements
|
No vibration, interference and ventilation
|
|
Welding Penetration
|
0.1~3.0mm
|
|
MOQ
|
1 set
|
Product Application
The application range of lithium battery module assembly production line is very wide,including electric vehicles, energy storage equipment,solar photovoltaic and other fields.
