To realize continuous use,this series hydraulic winches were developed instead of electric winches.
It can be with solenoid directional valve to control the pulling direction of the winch,or the optional balance valve to make the
winch more stable.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YS
-
Model Number:
-
YS 0.5-100 T
-
Product name:
-
Hydraulic winch
-
Color:
-
Customized
-
Material:
-
Steel
-
Type:
-
Traction winch
-
Certification:
-
CCS,CE,ISO,etc
-
Name:
-
Hydraulic winch
-
MOQ:
-
1
-
Brake:
-
Automatic
-
Usage:
-
Ships, trucks, trailers
-
Motor:
-
Hydraulic motor
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
AUTO/BOAT/ATV/UTV/CRANES
-
Capacity:
-
0.5ton-100ton
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YS
-
Model Number:
-
YS 0.5-100 T
-
Product name:
-
Hydraulic winch
-
Color:
-
Customized
-
Material:
-
Steel
-
Type:
-
Traction winch
-
Certification:
-
CCS,CE,ISO,etc
-
Name:
-
Hydraulic winch
-
MOQ:
-
1
-
Brake:
-
Automatic
-
Usage:
-
Ships, trucks, trailers
-
Motor:
-
Hydraulic motor
Products Description

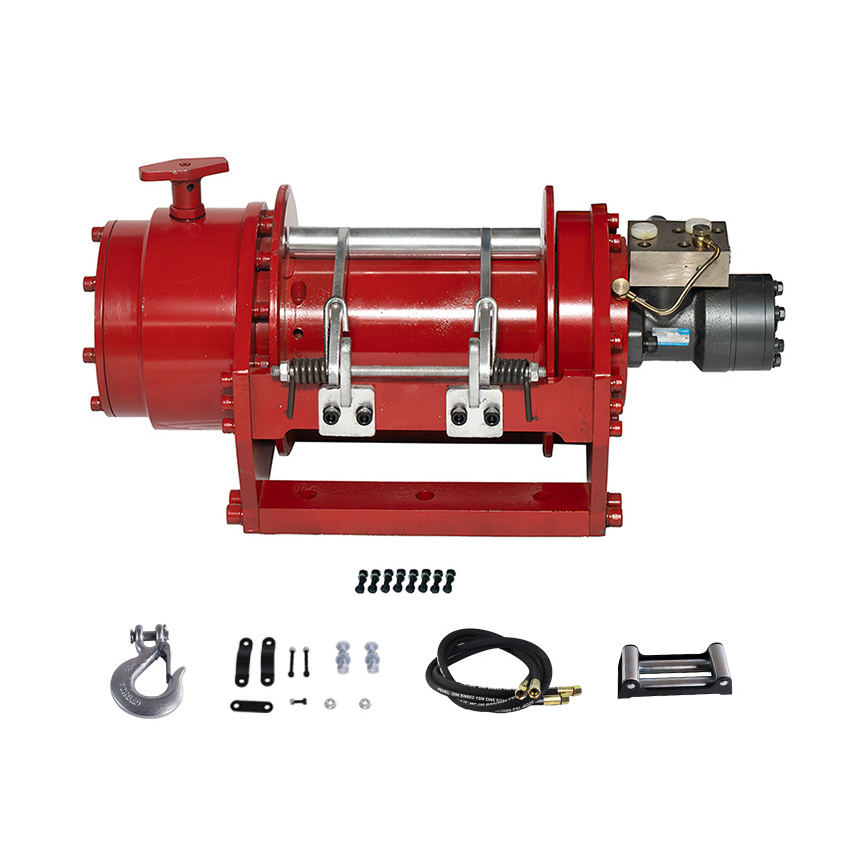

YS series hydraulic winch consists of the orbital motor, planetary gear reducer, brake and other components.Using threaded connection steel frame structure, equipped with shuttle valve, balance valve and other safe control system. The structure is
compact, small footprint, it applies to ships, docks and other lifting cars and traction equipment.
YS -Series Hydraulic winch
.Hydraulic winches are made by many heavy kinds of application. We manufacture these winches by most rugged steel so that they are durable and have a long lifetime. We have a variety of hydraulic winches to best suits customers needs. Except for standard winches, we're also able to provide tailored solutions to our customers.They're widely used in construction equipment, mining industry, deck machinery, oil field drilling,truck crane and other light, medium and heavy duty applications.
|
Number of layers of steel wire rope
|
1
|
2
|
3
|
4
|
||||
|
Load (KN)
|
68
|
54
|
47
|
41
|
||||
|
Rope capacity (m)
|
9
|
20
|
32
|
40
|
||||
|
Wire rope diameter
|
14mm
|
Rope speed
|
0-12m
|
|
||||
|
Rated flow rate
|
45L/min
|
Reduction ratio
|
1：17.5
|
|
||||
|
Rated pressure
|
16Mpa
|
weight
|
140kg
|
|
||||
|
If you have parameter requirements, please contact our customer service.
|
|
|
|
|
||||
|
YS 0.5-100 ton hydraulic winch,
All parameters of our hydraulic winch support customization,welcome to order!
|
|
|
|
|
||||
Advantage
Product display
Quality Guarantee
High cost-effectiveness, durability, flexible operation, and easy to learn.
High performance bearings
High quality rotational accuracy, low noise, high rotational speed, and high bearing load that is not prone to overheating.
Easy rope retrieval
The hydraulic winch provides smooth rope retrieval, avoiding entanglement and reducing equipment stress.
1. cost saving
2. Easy to install and operate
3 .Top quanlity with competitive price
4. Reliable operation with little noise
5 .Low maintenance relieves your anxiety
6. Except for standard winches, we’re also able to provide tailored solutions to our customers.(Mounting frame is available on request. Balance valve, shuttle valve, limit switch and other accessories are also available on request.)
2. Easy to install and operate
3 .Top quanlity with competitive price
4. Reliable operation with little noise
5 .Low maintenance relieves your anxiety
6. Except for standard winches, we’re also able to provide tailored solutions to our customers.(Mounting frame is available on request. Balance valve, shuttle valve, limit switch and other accessories are also available on request.)
Application
Hydraulic winches are very useful in applications that require handling heavy items, providing high torque, and continuous operation. They are widely used in various fields such as industry, transportation, agriculture, marine and shipbuilding, mining and construction, forestry, hydraulic engineering, environmental protection and clean energy, entertainment and adventure.
