Quick Details
-
Brand Name:
-
SmartConvey
-
Product Name:
-
Mobile Telescopic Belt Conveyor
-
Frame Material:
-
Carbon Steel Coated
-
Voltage:
-
220V/380V/440V Customized
-
Belt Width:
-
600mm/800mm/Customized
-
Belt Material:
-
Durable PVK Material
-
Function:
-
Truck Loading and Unloading
-
Advantage:
-
High Efficiency/Telescopic/Mobile
-
Feature:
-
Forward and reverse running
-
Total Length:
-
8800mm-23500mm
-
Loading Capacity:
-
60Kg/M
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
500
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SmartConvey
-
Product Name:
-
Mobile Telescopic Belt Conveyor
-
Frame Material:
-
Carbon Steel Coated
-
Voltage:
-
220V/380V/440V Customized
-
Belt Width:
-
600mm/800mm/Customized
-
Belt Material:
-
Durable PVK Material
-
Function:
-
Truck Loading and Unloading
-
Advantage:
-
High Efficiency/Telescopic/Mobile
-
Feature:
-
Forward and reverse running
-
Total Length:
-
8800mm-23500mm
-
Loading Capacity:
-
60Kg/M

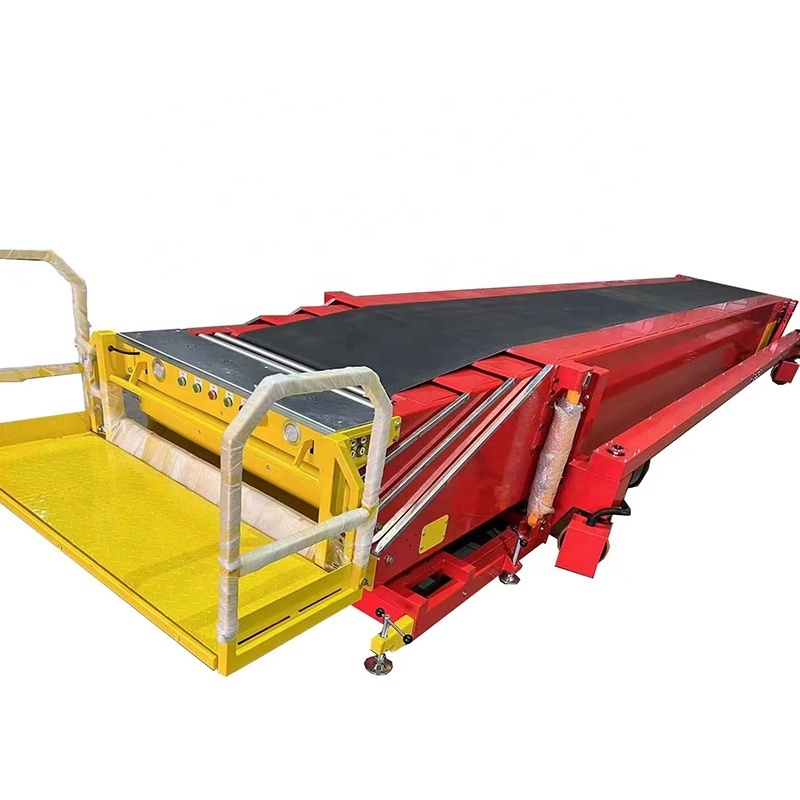

Mobile Telescopic Belt Conveyor
Telescopic belt conveyor could load and unload goods safely and efficientl y with extendable length. It is widely used in logistics, ports,docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. For mobile type of telescopic belt conveyor, Its biggest advantage is the ergonomic operating conditions. The overall movement of the equipment in any direction can be realized by controlling the handle to reach the position specified by the customer. Then, by operating the button, the telescopic movement of the telescopic machine can reach the position required by the operator, and easily and efficiently complete loading and unloading of goods. The overall and telescopic movement is quickly fed back to operator through motor driven .
|
Basic Dimensions |
|||||||||
|
Type |
Model No. |
Section |
L1(mm) |
L2(mm) |
L(mm) |
H1(mm) |
H2(mm) |
Belt Width(mm) |
Counter weight(t) |
|
Electrical Roller Type |
SC-T800S4M-5.0/10.0E |
4 |
5000 |
10000 |
15000 |
920 |
750 |
800 |
3 |
|
Drive Roller Type |
SC-T800S4M-5.0/10.0D |
4 |
5000 |
10000 |
15000 |
920 |
750 |
800 |
3 |
|
Electrical Roller Type |
SC-T800S4M-6.0/12.3E |
4 |
6000 |
12300 |
18300 |
920 |
750 |
800 |
3 |
|
Drive Roller Type |
SC-T800S4M-6.0/12.3D |
4 |
6000 |
12300 |
18300 |
920 |
750 |
800 |
3 |
|
Electrical Roller Type |
SC-T800S4M-7.0/15.0E |
4 |
7000 |
15000 |
22000 |
920 |
750 |
800 |
4 |
|
Drive Roller Type |
SC-T800S4M-7.0/15.0D |
4 |
7000 |
15000 |
22000 |
920 |
750 |
800 |
4 |
|
Electrical Roller Type |
SC-T800S4M-7.5/16.0E |
4 |
7500 |
16000 |
23500 |
920 |
750 |
800 |
4 |
|
Drive Roller Type |
SC-T800S4M-7.5/16.0D |
4 |
7500 |
16000 |
23500 |
920 |
750 |
800 |
4
|
