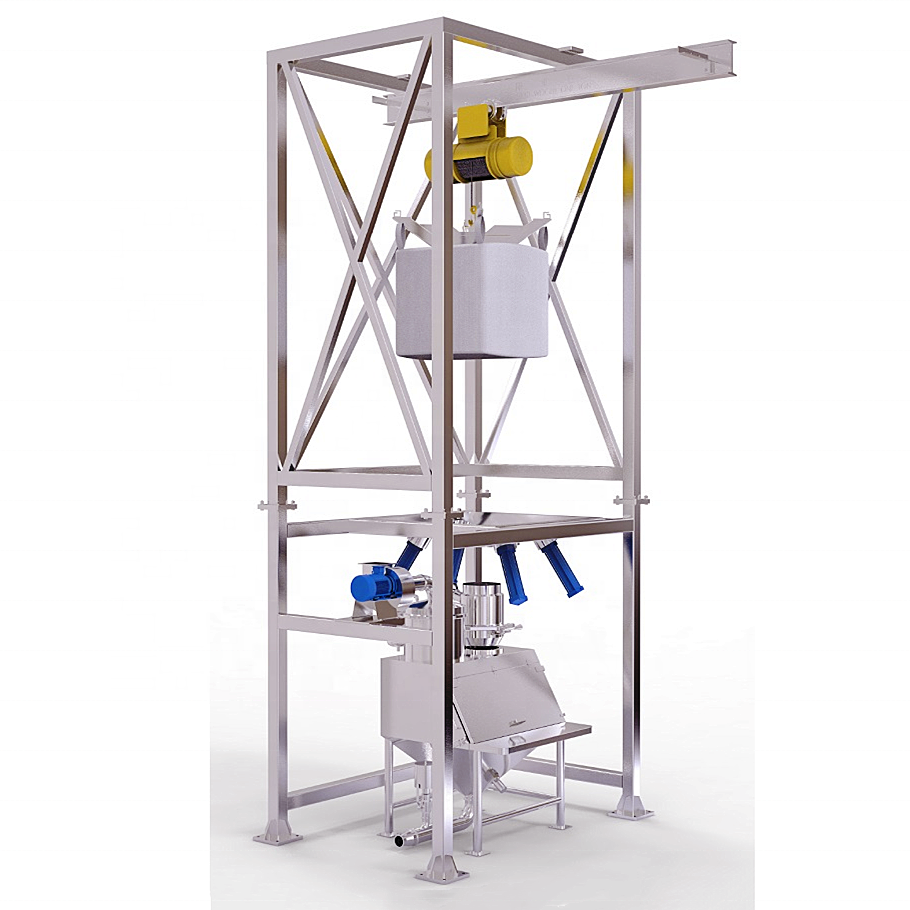

Bulk jumbo FIBC big bag unloader station

Bulk jumbo FIBC big bag unloader station

FOB Reference Price: Get Latest Price

≥1 Sets

US $1000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Working condition:: dust free

lifting weight:: 500-2000 kg

Lifting Height:: 2-5 meters

Lifting method:: Electric hoist

Quick Details

Warranty:: 1 Year

Place of Origin:: China

Brand Name:: DOINGMACHINE

Working condition:: dust free

lifting weight:: 500-2000 kg

Lifting Height:: 2-5 meters

Lifting method:: Electric hoist

Product Description

Main features:

1. Dust free jumbo/bulk/FIBC/big bag unloading system

2. Lifting method: electric hoist

3. Max lifting weight: 4 tons

4. Support frame: customized

Working principle:

Our Bulk bag unloader (also known as jumbo bag, big bag, FIBC discharger) is equipped with integral "I" beam and hoist for lifting and unloading bags into the unloader and is directly connected to an enclosed conveyor for direct transfer of material to process machinery.

The bulk bag is lifted by the electric hoist onto the unloader drum where bag clamping device is equipped to prevent dust. When the bag is full of material, dual-pivot paddles push against the bottom of the bag to break material bridged over the outlet as well as agitate the sides of the bag near the spout, stimulating material movement. As the bag empties, air cylinders push the paddles further toward the center of the bag for complete discharge.

Technical advantages:

1. Dust free unloading: Specially designed bag clamping system of the unloading drum can completely prevent dust.

2. I-beam electric hoist : Cantilevered I-beam with electric hoist and trolley allows positioning of bulk bag without the use of a forklift.

3. Customized frame : Support frame is customized according to the working position and offered in carbon steel or stainless steel.

4. Bag strap holder : Specially designed for fast, easy and secure insertion and removal of bag straps. Agitator paddles mitigate bridging and rat holes.

5. Pneumatic agitator paddles : Ideal for use with material that is easily compacted or difficult-to-dispense.

6. Hoppers: Hoppers in a wide variety of designs connect to processing equipment, pneumatic or screw conveyor.

Detailed Images

Customized frame

Bag clamping device

I-beam electric hoist

Pneumatic agitator paddles

Bag strap holder

Material crusher/grinding unit

Packing & Delivery

FAQ

Q: What information should be provided in order to get a proposal or quotation?
A: Our bulk bag unloading system is customized. Before we can work out a detailed quotation, we have to know the following information:

1) What product you are going to handle
2) Product particle size and bulk density
3) Lifting height
4) Bulk bag size

5) Material conveying method after discharging

Q: How the machine will be delivered ?
A: The unloading system will be packed on steel pallet for shipping
