Quick Details
-
Product name:
-

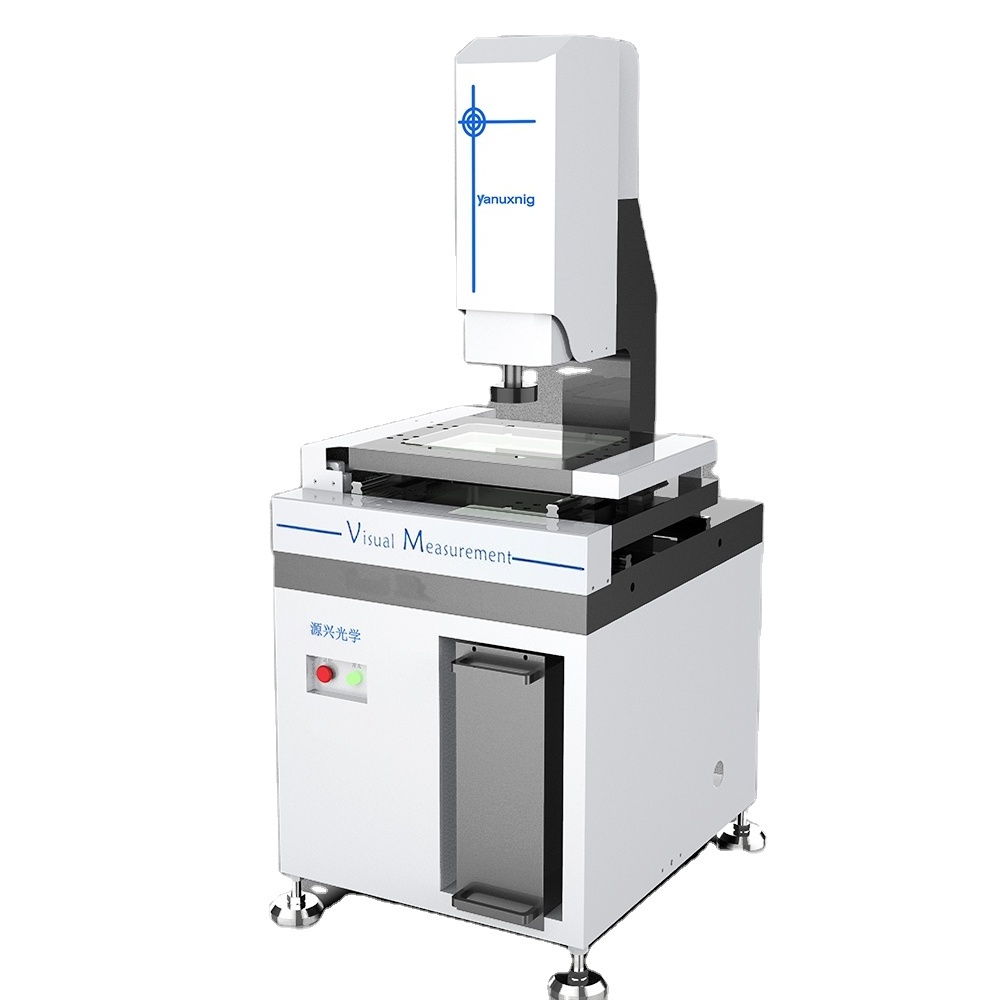

YVM Vision Measuring Instruments
-
Model:
-
YVM-322CNC
-
Application:
-
PCB,FPC, Tooling and precision hardware inspection
-
Accuracy:
-
X,Y:(3+L/200)μm
-
Power supply:
-
220V(AC) 50Hz
-
Weight:
-
280KG
-
Work Range:
-
300x200x200
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
280
-
Core Components:
-
Camera
-
Product name:
-
YVM Vision Measuring Instruments
-
Model:
-
YVM-322CNC
-
Application:
-
PCB,FPC, Tooling and precision hardware inspection
-
Accuracy:
-
X,Y:(3+L/200)μm
-
Power supply:
-
220V(AC) 50Hz
-
Weight:
-
280KG
-
Work Range:
-
300x200x200
|
Machine Model
|
YVM-322CNC
|
|
Test Area
|
300x200x200mm
|
|
Machine size
|
760x600x1100mm
|
|
Glass bearing
|
30kg
|
|
Machine weight
|
280kg
|
|
Accuracy of measurement
|
X,Y：（3+L/200）μm
|
|
Repeat accuracy
|
3μm
|
|
Magnetic grid resolution
|
0.2um
|
|
CCD
|
1.3 million Hikon digital cameras
|
|
camera lens
|
0.7 ~ 4.5x continuous zoom lens
|
|
magnification
|
16～180X
|
|
Working distance
|
92mm
|
|
Measuring software
|
YR-CNC
|
|
Servo Motor
|
Delta
|
|
UP light source
|
3 ring 8 zone surface ring LED cold light source, brightness adjustable
|
|
Bottom light source
|
Parallel light path design, endless continuous adjustable LED cold light source
|
|
guide rail
|
Taiwan high precision sliding guide rail
|
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
India Market.
Our India agent ,can provide India local service.
South American Market.
Our agent in South American ,can provide local service.
Europe Market.
Lots of machines sold to this market
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
