Quick Details
-
Brand Name:
-
HUOYI
-
Model Number:
-
POE108D V5
-
Place of Origin:
-
Guangdong, China
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.6G
-
Brand Name:
-
HUOYI
-
Model Number:
-
POE108D V5
-
Place of Origin:
-
Guangdong, China
Product Description
|
Modle
|
POE108D
|
|
Ports Composition
|

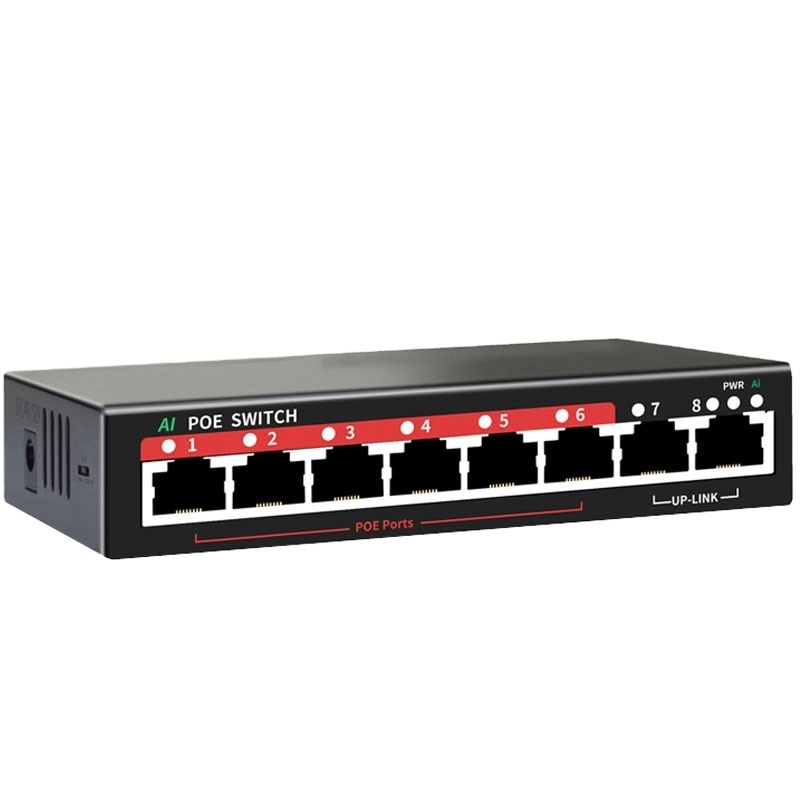

6*100Mbps PoE ports, 2*100Mbps Uplink ports
|
|
Bandwidth
|
2.4Gbps
|
|
MAC Address
|
2K
|
|
POE Protocols
|
IEEE 802.3 AF/AT
|
|
Power Input
|
100-240V 50/60Hz, 90W
|
|
Power Output
|
52V/30W(Max)
|
|
Data transfer rate
|
Ethernet 10Mbps half duplex, 20Mbps full duplex
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex |
|
Network media
|
1000Base-T: 4 to Cat5e or over UTP/STP(≤100m)
100Base-TX: 2 to Cat5 or over UTP/STP(≤100m) 10Base-TX: 2 to Cat6 or over UTP/STP(≤250m) |
|
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol
Support IEEE802.3af/at standard Store and forward Support self-learning and aging of MAC address Support full-duplex flow control and half-duplex flow control |
|
Temperature
|
Working temperature：0℃～40℃
Storage temperature：-40℃～70℃ |
|
Humidity
|
Working humidity：10%～90% RH Non-condensing
Storage humidity：5%～90% RH Non-condensing |
|
Weight
|
0.58KG
|
|
Dimensions
|
190mm*140mm*43mm
|
