Quick Details
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
Titanium Elbow
-
Product name:
-
Pipe Fitting Connector Elbow
-
Standard:
-
ANSI JIS DIN ASME
-
Size:
-
Customized Size
-
Connection method:
-
Welding, Thread, Flange
-
Material:
-
Titanium, Stainless Steel, Nickel, Carbon Steel
-
Supply Ability:
-
600 Ton/Tons per Month
-
Certificate:
-
GB/T19001-2008-ISO 9001:2008
-
Application:
-
Pipeline, Power plant, Petrochemcial
-
Thread:
-
BSPP BSPT NPT
-
Packaging Details:
-
plywood cases, pallets, nylon bags
Quick Details
-
Technics:
-
welding/casting
-
Shape:
-
Equal
-
Head Code:
-
Round
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
Titanium Elbow
-
Product name:
-
Pipe Fitting Connector Elbow
-
Standard:
-
ANSI JIS DIN ASME
-
Size:
-
Customized Size
-
Connection method:
-
Welding, Thread, Flange
-
Material:
-
Titanium, Stainless Steel, Nickel, Carbon Steel
-
Supply Ability:
-
600 Ton/Tons per Month
-
Certificate:
-
GB/T19001-2008-ISO 9001:2008
-
Application:
-
Pipeline, Power plant, Petrochemcial
-
Thread:
-
BSPP BSPT NPT
-
Packaging Details:
-
plywood cases, pallets, nylon bags
Product Description
Specification
|

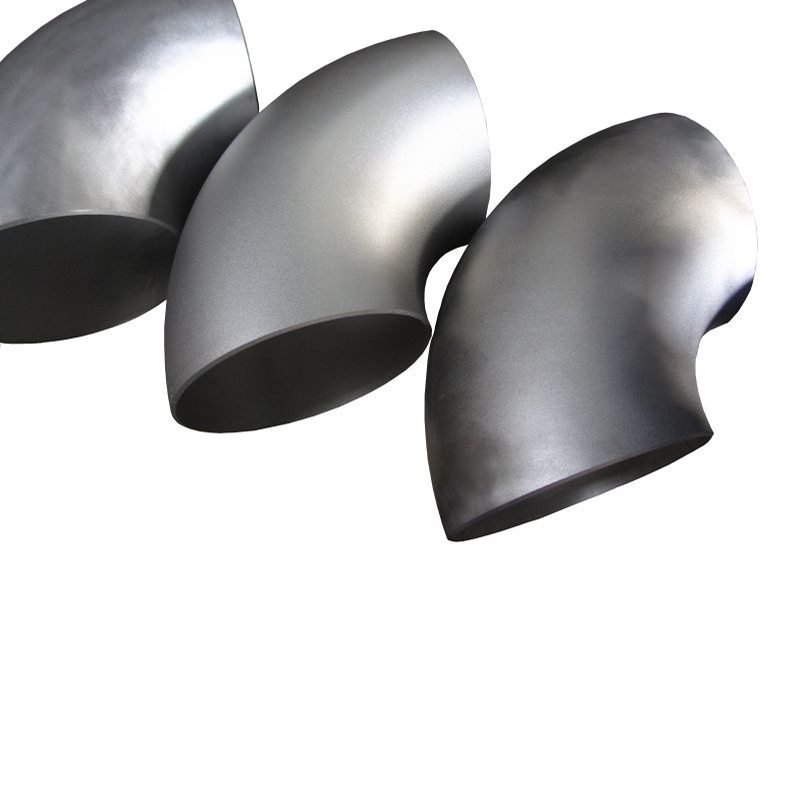

Product name
|
Titanium Elbow
|
|
|
|
|||
|
Type
|
45 Degree elbow 45E(L) 45E(S)
|
|
|
|
|||
|
|
90 Degree elbow 90E(L) 90E(S)
|
|
|
|
|||
|
|
180 Degree elbow 180E(L) 180e(s)
|
|
|
|
|||
|
|
Others: 30Degree, 60Degree, 120Degree, etc.
|
|
|
|
|||
|
Material
|
Pure titanium or Titanium alloy Gr1, GR2, GR4, GR7, GR9, GR12
|
|
|
|
|||
|
Specifications
|
Outer diameter
|
DN15-1200 NPS 1/2"-48"
|
|
|
|||
|
|
Wall thickness
|
1-15MM Sch5s-Sch160
|
|
|
|||
|
Standard
|
ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9
|
|
|
|
|||
|
Technique
|
Welded, Forged, Rolled, Seamless
|
|
|
|
|||
|
Surface finished
|
Sand blasting, Polishing, Pickling
|
|
|
|
|||
|
Quality control
|
100% of the X-ray detection (RT)
|
|
|
|
|||
|
|
100% of Surface penetrant inspection (PT)
|
|
|
|
|||
|
Application
|
Chemical, Petroleum, Machinery, Industry, etc.
|
|
|
|
|||
|
Other products
|
Caps, flingers, socket welding fittings, valves available
|
|
|
|
|||
