3 ton 10 ton a frame crane single beam girder hoist small and medium-sized gantry crane

3 ton 10 ton a frame crane single beam girder hoist small and medium-sized gantry crane

FOB Reference Price: Get Latest Price

≥1 Sets

US $8000

≥10 Sets

US $5000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: workshop, Lifting Goods

Place of Origin:: Henan, China

Brand Name:: Nucleon Crane

Weight (KG):: 10000 kg

Product name:: single girder Gantry Crane

Capacity:: 3-16 Ton

Control Method:: Remote or Cabin(Customised)

Working Duty:: A4

Working Temperature:: -20~+40℃

Power supply:: 3 Phase AC 380V 50HZ

Color:: Customized

Quick Details

Rated Loading Capacity:: 3 Ton, 5 ton, 15 TON, 10 TON, 2 ton, 1 Ton, customized

Max. Lifting Height:: 30m, 30 M

Span:: customized, 11-31.5 M

Application:: workshop, Lifting Goods

Place of Origin:: Henan, China

Brand Name:: Nucleon Crane

Weight (KG):: 10000 kg

Product name:: single girder Gantry Crane

Capacity:: 3-16 Ton

Control Method:: Remote or Cabin(Customised)

Working Duty:: A4

Working Temperature:: -20~+40℃

Power supply:: 3 Phase AC 380V 50HZ

Color:: Customized

Product Overview

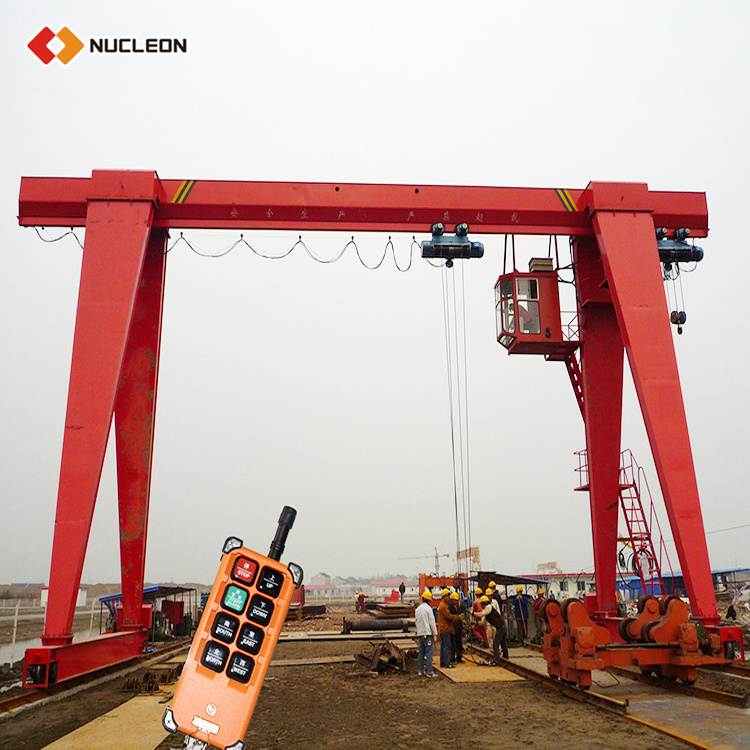

Single Girder Gantry Crane

Customized single girder MH model gantry crane is used together with CD, MD type electric hoists. It is a track travelling small
and medium sized crane.Normally, the lifting capacity:0.5ton~32ton, lifting height: 3m~30m, span: 3m~35m, working temperature is -20-40 ℃.
Compared with bridge cranes, the product advantages of single girder gantry cranes are as follows:

1. Reduce the construction cost of your workshop;
2. Suitable for indoor warehouse and outdoor use;

PRODUCT CONFIGURATION

Main girder

1. Steel plant material Q235B/Q345B with seamless once forming.
2. CNC Cutting for complete steel plant.

Electric Hoist

1. Capacity: 1-50t

2. Protection class F class

Crane end beam

1. Uses rectangular tube manufacturing module 2. Buffer motor drive 3. With roller bearings and permanent lubrication

Crane Motor

1. YZR, YZP are all provided 2. Power: 1.8~280KW

Hook

1. Capacity: 1-450t
2. Drop Forged Hook, Plain ‘C’ type, Swiveling on Thrust Bearing.

Wireless Remote Control

1. Model: F21 F23 F24 Speed: Single speed, double speed. VFD control
2. Life of 500000 times;

PRODUCT SPECIFICATIONS

Loading capacity	0.5 ~ 32t
Lifting height	3 ~ 30 m or customized
Lifting speed	Single speed: 3 ~ 8 m/min; or customized Variable frequency speed: 1 ~ 10 m/min; or customized
Span	3~35 m
Working class	A3 ~ A5
Working temperature	-20 ~ 40 ℃
Lifting mechanism	wire rope hoist or electric chain hoist
