Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DALSON
-
Voltage:
-
220V,380V, 480V, 415V
-
Dimension(L*W*H):
-
As Fact Design
-
Weight (KG):
-
1000 kg
-
Product Name:
-
conveyor elevator machine, lift elevator industrial conveyor machine
-
Application Products:
-
Carton Box, Tray Box, Plastic Basket, Big Barrel,etc
-
Conveying Height:
-
1.5~18m
-
Capacity/Speed:
-
5~10Pieces/min
-
PLC:
-
SIEMENS, Mitsubishi,Schneider
-
Touch Screen:
-
SIEMENS, Schneider
-
Drive Motor:
-
SEW,SITI,WANXIN,OMAT
-
Conveyor Chains Type:
-
Wear-resisting Anti-skid Conveyor Chains
-
Advantage Service:
-
Online support+Video technical support
Quick Details
-
Power:
-
2.2 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
Adjustable
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DALSON
-
Voltage:
-
220V,380V, 480V, 415V
-
Dimension(L*W*H):
-
As Fact Design
-
Weight (KG):
-
1000 kg
-
Product Name:
-
conveyor elevator machine, lift elevator industrial conveyor machine
-
Application Products:
-
Carton Box, Tray Box, Plastic Basket, Big Barrel,etc
-
Conveying Height:
-
1.5~18m
-
Capacity/Speed:
-
5~10Pieces/min
-
PLC:
-
SIEMENS, Mitsubishi,Schneider
-
Touch Screen:
-
SIEMENS, Schneider
-
Drive Motor:
-
SEW,SITI,WANXIN,OMAT
-
Conveyor Chains Type:
-
Wear-resisting Anti-skid Conveyor Chains
-
Advantage Service:
-
Online support+Video technical support
Shanghai Dalson Packing Machinery Co.,Ltd.

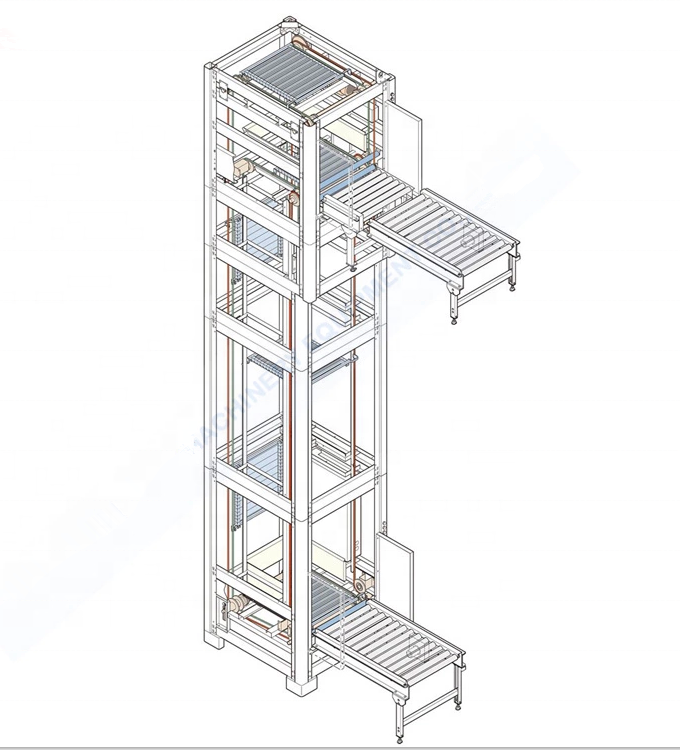

DLE Series Full Automatic Motorized Vertical Lifter Elevator Conveyor Machines
DLE Series Lift Elevator Conveyor Machine is suitable for the products with fixed shape, such as basket , cartons , big barrels etc lifting up or lifting down. To make full use of the limited space to connected with other equipment in the production linkage to transport products,to ensure continuous production .
DSC Series Motorized or Gravity Vertical Gripper Conveyor Machines 's Main Tech Data:
|
Model : |
DGC-15 (As Fact Need Customize) |
|
Applicable Products : |
Bottles, Cans,Big Barrel,Carton Box,Basket,etc |
|
Conveying Height: |
1.5m ~ 15m (As Client Fact Need Customize) |
|
Conveying Speed: |
1m ~ 25m/min (Adjustable Speed) |
|
Conveying Direction: |
Up to Down, Down to Up, Both Direction At same time |
|
Height of Outlet and Inlet: |
Standard Outlet/Inlet Height is 500mm (Can be Customize) |
|
Conveyor Width: |
100mm ~500mm (As Client Fact Need to Customize) |
|
Conveyor Types: |
POM Natural Rubber Conveyor Chains, |
|
Conveyor Frame Material: |
Spray-paint Carbon Steel+Aluminum Profile Frame |
|
Drive Motor: |
OMAT, SEW |
|
Drive Type: |
Gear Motor Drive Mode |
|
Speed Regulation Mode: |
Variable Frequency Speed Regulation, Step-less Speed Change, etc. |
Machine Characteristics:
1.Achieve the demand of continuous safety lift up or Lift down products, and the equipment control is simple. It can simplify the production process and improve the production efficiency.
2. The Lift Elevator Conveyor Machine with small land occupation, and help to provide overall utilization efficiency of the plant.
3. Compact structure, overall welding structure, high reliability, easy debugging, low maintenance cost, high reliability and convenient to use and maintenance characteristics.
4. Adopt independent electrical control cabinet, and the main electrical components is world famous brand PLC, Touch Screen,Frequency Converter and Sensors,etc.
