Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JORI
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
10000*3000*2000
-
Weight:
-
12T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Product name:
-
Small Toilet Paper Perforating Embossing Machine For Sale
-
Model:
-
1575
-
Jumbo Roll Max Width:
-
1750mm
-
Jumbo Roll Ddiameter:
-
1100mm
-
Jumbo Roll Inner Ddiameter:
-
76.2mm/3 inches(Other sizes can be ordered)
-
Finished Product Diameter:
-
90-280mm
-
Perforation Distance:
-
4 anvil Blades
-
Production Speed:
-
0~180m/min
-
Power:
-
7.5-15KW
-
Certification:
-
ISO,SGS,CE
Quick Details
-
Type:
-
Toilet Paper Production Line
-
Production Capacity:
-
180 m/min
-
Max. workable width:
-
1300mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JORI
-
Voltage:
-
380V 50Hz
-
Dimension(L*W*H):
-
10000*3000*2000
-
Weight:
-
12T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Video technical support, Online support
-
Product name:
-
Small Toilet Paper Perforating Embossing Machine For Sale
-
Model:
-
1575
-
Jumbo Roll Max Width:
-
1750mm
-
Jumbo Roll Ddiameter:
-
1100mm
-
Jumbo Roll Inner Ddiameter:
-
76.2mm/3 inches(Other sizes can be ordered)
-
Finished Product Diameter:
-
90-280mm
-
Perforation Distance:
-
4 anvil Blades
-
Production Speed:
-
0~180m/min
-
Power:
-
7.5-15KW
-
Certification:
-
ISO,SGS,CE
Product Description

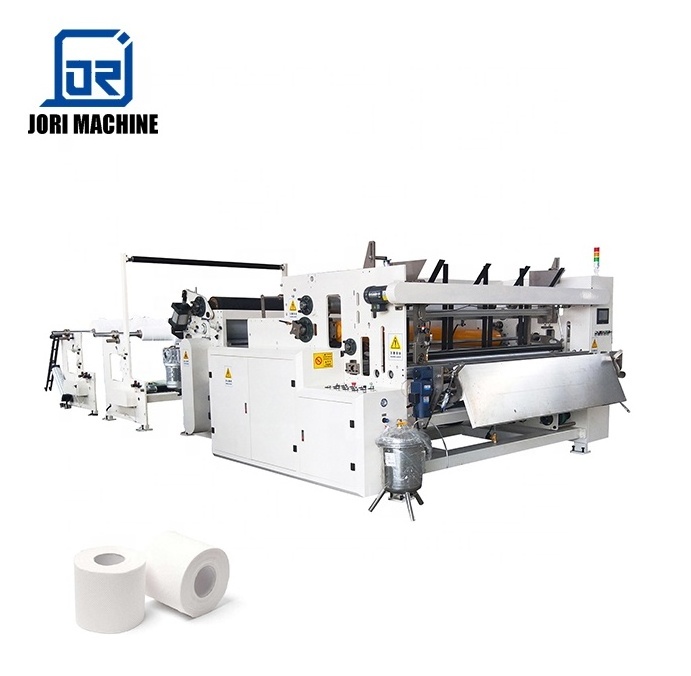

Full Automatic Small Toilet Paper Perforating Embossing Machine For Sale
Features:
Automatic High Speed Toilet Paper/ Maxi Roll Rewinding Machine is for toilet paper roll/maxi roll processing.
Machine have core feeding unit, can do both with and without core. Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients' requirements.
Specification:
|
Model
|
1092B
|
1575B
|
1760B
|
2150B
|
2200B
|
2500B
|
2800B
|
||||||
|
Jumbo Roll Max. width
|
1350mm
|
1750mm
|
1880mm
|
2000mm
|
2150mm
|
2400mm
|
2750mm
|
||||||
|
Max. Jumbo Roll diameter
|
2-3 stands (pls specify when order)
Paper gram weight 13-16 g/m2 |
|
|
|
|
|
|
||||||
|
Jumbo Roll Standings
|
Standardφ3"(76.2mm) (Other sizes specified)
|
|
|
|
|
|
|
||||||
|
Data setting
|
HMI
|
|
|
|
|
|
|
||||||
|
Programming controller
|
PLC, touch screen
|
|
|
|
|
|
|
||||||
|
Operate Speed
|
0-230m/min 15000-25000 rolls/8hours
|
|
|
|
|
|
|
||||||
|
Finished Log Outer dia.
|
φ90-140mm
|
|
|
|
|
|
|
||||||
|
Finished Log Inner dia.
|
φ38-76mm
|
|
|
|
|
|
|
||||||
|
Perforation Distance
|
100-150mm
|
|
|
|
|
|
|
||||||
|
Mechanical driving
|
Driving by Stepless gear box
|
|
|
|
|
|
|
||||||
|
Air -system
|
3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)
|
|
|
|
|
|
|
||||||
|
Main driving
|
Frequency conversion speed regulation 7.5-15KW 380V,50HZ
|
|
|
|
|
|
|
||||||
|
Embossing unit
|
Steel to rubber
|
|
|
|
|
|
|
||||||
|
Dimensions
|
6x3x1.7 (length x width x height);(m)
|
|
|
|
|
|
|
||||||
|
Weight
|
3T-4T(depends on the Model you have )
|
|
|
|
|
|
|
||||||
|
Options:
|
|
|
|
|
|
|
|
||||||
|
Embossment Roller
|
Plane, Single Set, Double Sets Can be ordered
|
|
|
|
|
|
|
||||||
|
Color Printing Unit
|
1-2 Colors can be order
|
|
|
|
|
|
|
||||||
|
Lamination Unit
|
Can be Ordered
|
|
|
|
|
|
|
||||||
|
Edge-Embossing Line
|
Steel to Steel Operate by Pneumatic
|
|
|
|
|
|
|
||||||
Machine Detail Pictures:
Deco Color Lamination Parts:
Finished Products:
Our Company
Packing & Delivery
CE Certifications
Related Products
Service and Support
Pre-Sales Technical Support:
1.Fastly and professional reply to you about your questions for wet wipe machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract.
4.24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of the machines
3.Detailed and clearly explain to you when you come to our factory for visiting before contract.
4.24 Hours online service, 7 Days one week support for you if any technical questions or problems about toilet tissue paper making machine.
After-Sales Service
1
.
Engineers overseas installation and trainning, all our engineers are rich experience for overseas working
2.Guarantee you steady supply for the spare parts with the lower prices
FAQ
1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.
2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that's designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.
3. Do your company accept Alibaba Trade Assurance?
A: yes, of course. (1) We will draft order accoring buyer requirements. (2)Negotiate terms with the supplier
and confirm order (3) Make payment to the bank account designated by Alibaba.com
4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.
5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.
