Supports full duplex or half duplex modes with automatic negotiation capability
10/100Mbps automatic adaptation
The network interface supports fully automatic cross recognition without the need for manual switch operation
Plug and play, easy to use
Ultra wide working temperature: -40 ℃~85 ℃
Ultra wide voltage input: 12/24/48VDC (10.8-52. BVDC),
- Product Details
- {{item.text}}
Quick Details
-
Protocol standards:
-
IEEE 802.3 10BASE-T IEEE 802.3u 100base-TX
-
Ports:
-
RJ45 5 port 8 port 10/100base-TX
-
LED indicator:
-
power light network indicator light
-
Power supply:
-
12/24/48VDC(10.8-52.8VDC)
-
Power consumption:
-
120mA@24Vmax
-
power port:
-
one pluggable 3-pin wiring terminal
-
overload protection:
-
yes
-
polarity reverse protection:
-
yes
-
transmission mode:
-
storage and forwarding
-
forwarding rate:
-
148810pps
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Senyd
-
Model Number:
-
refer to datasheet
-
Protocol standards:
-
IEEE 802.3 10BASE-T IEEE 802.3u 100base-TX
-
Ports:
-
RJ45 5 port 8 port 10/100base-TX
-
LED indicator:
-
power light network indicator light
-
Power supply:
-
12/24/48VDC(10.8-52.8VDC)
-
Power consumption:
-
120mA@24Vmax
-
power port:
-
one pluggable 3-pin wiring terminal
-
overload protection:
-
yes
-
polarity reverse protection:
-
yes
-
transmission mode:
-
storage and forwarding
-
forwarding rate:
-
148810pps
Product Overview

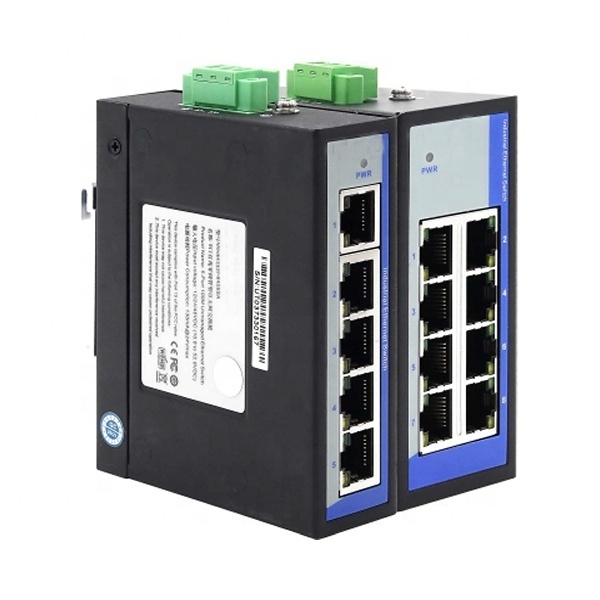

Senyd ST-6405 ST-6408 Ethernet switches
.
ST-6405 and ST-6408 are 5-port/8-port 100 Mbps unmanaged Ethernet switches that provide DC input, forward and reverse protection to prevent instrument damage. They are exquisitely designed and support industrial standard rail installation, making them very easy to install and apply on any industrial network.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
|
housing IP grade
|
IP40
|
|
|
|
weight
|
6405 500g, 6408 580g
|
|
|
|
installation
|
rail mounted
|
|
|
|
dimensions
|
6405 100*80*27.5mm, 6408 100*85*40.2mm
|
|
|
working environment
|
temperature
|
-40....85℃
|
|
|
|
humidity
|
0-95%
|
|
|
|
storage temperature
|
-40....85℃
|
|
|
standards protocol
|
IEEE 802.3 1 OBase-T IEEE 802.3u 100Base-TX
|
|
|
