Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Holyphant
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1030*910*925 mm
-
Weight (KG):
-
650 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
water of adobe:
-
20%
-
driven engine:
-
15HP diesel engine,11kw electrical motor
-
raw material:
-
clay,river sand etc
-
function:
-
extrude the soil into brick forming
-
advantages:
-
big capacity,low investment cost
-
production line:
-
feeder,mixer,crusher,extruder,slicer,cutter
-
capacity:
-
1000pcs per hour for standard brick
-
Brick type:
-
solid brick,simple hollow brick
-
Worker:
-
2-3 workers
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, building brick making machine
-
Brick Raw Material:
-
Clay
-
Production Capacity (Pieces/8 hours):
-
12000-15000pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Holyphant
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1030*910*925 mm
-
Weight (KG):
-
650 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
water of adobe:
-
20%
-
driven engine:
-
15HP diesel engine,11kw electrical motor
-
raw material:
-
clay,river sand etc
-
function:
-
extrude the soil into brick forming
-
advantages:
-
big capacity,low investment cost
-
production line:
-
feeder,mixer,crusher,extruder,slicer,cutter
-
capacity:
-
1000pcs per hour for standard brick
-
Brick type:
-
solid brick,simple hollow brick
-
Worker:
-
2-3 workers

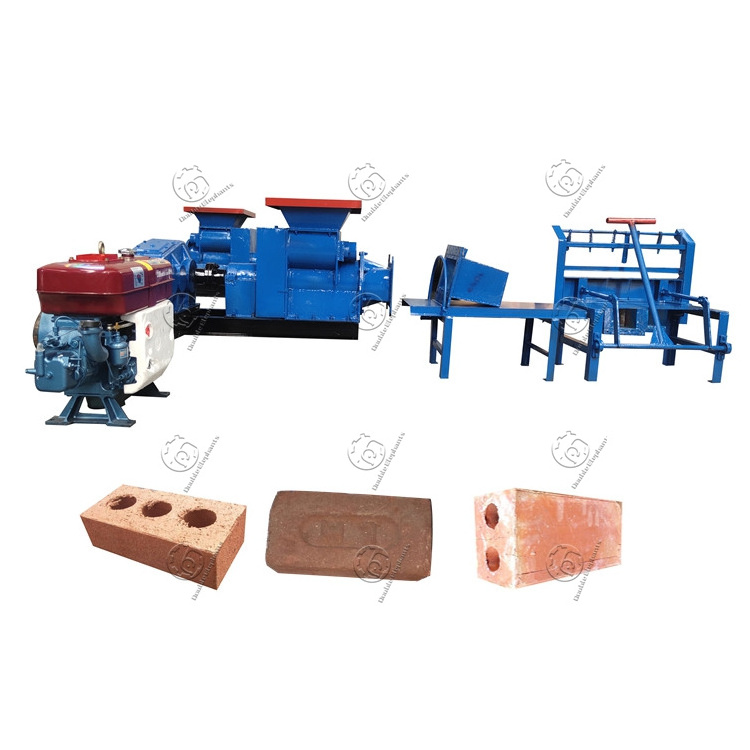

SD-220 Small automatic clay brick making machine,hollow block making machine
Clay brick machine is the smallest models brick extruders.
It is widely used in small family brick owners.Suitable for family workshops.
Also, its compact design makes machine operation very easily.
The SD-220 Brick Machine is suitable for making the clay brick adobe for house. The materials can be clay, black land, mixing clay etc. It includes Hopper, Mud pie cutter and Mud adobe slicer. It can be installed on the falsework(wooden/iron board), also can be installed on the concrete foundation.
SD250 Diesel Engine/Electrical driven Manual Brick Machine
Structure of brick machine
SD220 machine is the fourth generation product of our factory which is designed after our technicians combine kinds of brick machines’ merits through many years’ production experience. It is the best one of the small type brick machine for the synthetic economic benefit at present. It is welded with profiled bar and all of its gears are made of 45# steel and alloy steel and through processing of Lathe for gear and quencher and cement ite quencher, then put into gear boxes. The running part of the machine is driven by bearing running and has air proof equipment for mud and water seal.
Features
The machine has the features of handsome shape, reasonable structure, good performance, high quality, smallness, lightness, high efficiency, durability, and convenience, and the user can use it everywhere and do not need a special place. The machine can be widely used and it is fit for clay, black earthly, mixed earth and so on. The machine is the best choice of brick equipment for small factories and professional individuals.
Production line for brick making machine
soil →feeding machine→ conveyor→the roller crushing mill→conveyor→ clay mixer →conveyor→clay brick making machine→green brick slitter→green brick cutting machine →plate for green brick
Operation manual for mud brick making machine
1.First add oil in the body before starting machine,run it as the arrow mark.
2.Upper 2 holes are the water line of brick mold,when mud strips come out normally,if the brick adobe angle is not smooth,slime angle,it has large difference with water.during testing it, open water when mud strips come out,then slowly close water to reach the satisfy for the smooth degree of mud strips,finally fix the water.(16 holes at sides can be blocked by cotton)
3.Hang steel wire for manual mud slicer.
4.Hang steel wire for brick adobe cutter.
Firing Brick Kiln for red brick
Technical data for clay brick machine
|
Model |
SD220 |
SD 25 0 |
SD-300 |
SD-350 |
|
Capacity(pcs/h) |
1000-1200 |
1500-2000 |
4000-5000 |
6000-8000 |
|
Machine size(mm) |
2200*1000*1100 |
3100*1100*1300 |
2200*1000*1100 |
2600*1100*1200 |
|
Power |
11kw/15 hp |
11kw/15hp |
30kw |
45kw |
|
Weight(kg) |
950 |
1100 |
1600 |
2200 |
|
Brick size |
240*115*53mm of course we can make the brick mol according to your demand sizes , length not limited, width<230mm,height<230mm |
|||
