Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vmaxpower
-
Model Number:
-
VMI-D S 30KW
-
Output Voltage (V):
-
380V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24
-
Name:
-
30KW off grid solar power system
-
Protection:
-
over temperature,instant cut off,short circuit
-
AC Input Frequency Range:
-
45-65Hz
-
Output Efficiency:
-
≥85%
-
Charge Mode:
-
MPPT or PWM
-
Working ambient temperature:
-
-10℃~+40℃
-
Transfer Time:
-
≤4ms
-
Working atitude (m):
-
≤2000
-
Noise:
-
≤65dB
-
Installation Site:
-
Outdoor
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon, Polycrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vmaxpower
-
Model Number:
-
VMI-D S 30KW
-
Output Voltage (V):
-
380V
-
Output Frequency:
-
50/60Hz
-
Work Time (h):
-
24
-
Name:
-
30KW off grid solar power system
-
Protection:
-
over temperature,instant cut off,short circuit
-
AC Input Frequency Range:
-
45-65Hz
-
Output Efficiency:
-
≥85%
-
Charge Mode:
-
MPPT or PWM
-
Working ambient temperature:
-
-10℃~+40℃
-
Transfer Time:
-
≤4ms
-
Working atitude (m):
-
≤2000
-
Noise:
-
≤65dB
-
Installation Site:
-
Outdoor
What we can do for you:
1. Work with you for information necessary to verify the system power you actually needs;
2. Manufacture all systems parts in good quality and cost based on the confirmed terms;
3. Customize the solar system to meet your installation site, especially for the supporting structures;
4. Provide the system installation guides after the system arrive;
5. 5 year system warranty under normal operation;
6. On line technical support to any possible problem after system installation.
2. Manufacture all systems parts in good quality and cost based on the confirmed terms;
3. Customize the solar system to meet your installation site, especially for the supporting structures;
4. Provide the system installation guides after the system arrive;
5. 5 year system warranty under normal operation;
6. On line technical support to any possible problem after system installation.

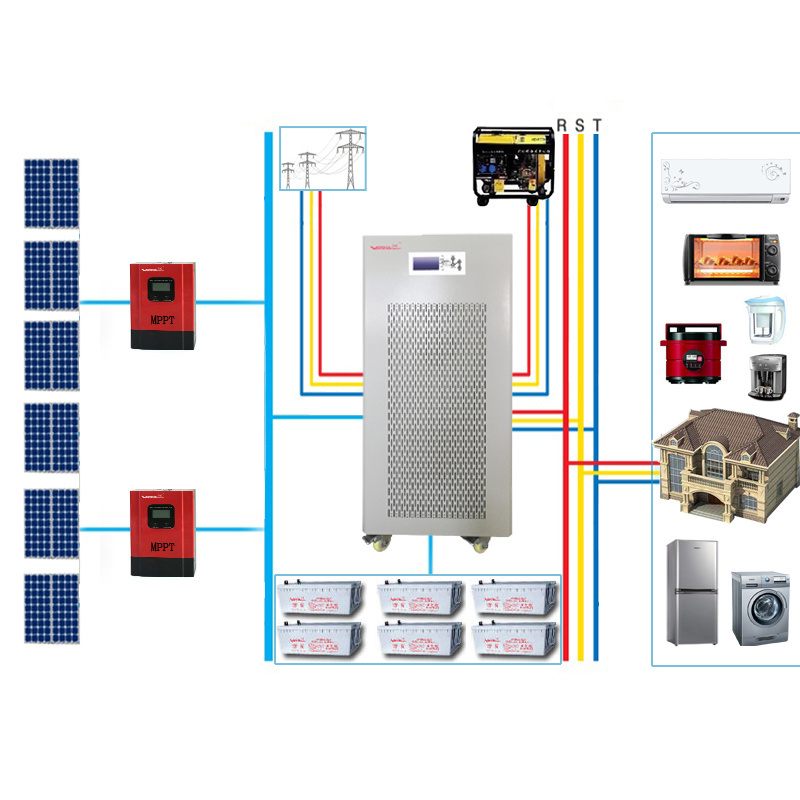

System Solution
|
System list
|
|
|
||
|
Parts
|
Description
|
Quantity
|
||
|
Solar panel
|
MUL-6M-350P-72 Poly 350W
|
80pcs
|
||
|
Inverter
|
192V/30KW
|
1 unit
|
||
|
Solar controller
|
192V/60A
|
2pcs
|
||
|
Seal lead acid battery
|
12/200Ah
|
16pcs
|
||
|
PV combiner box
|
5 in 1 out
|
2pc
|
||
|
Steel mounting
|
30KW
|
1 set
|
||
|
Cables & Connectors
|
30KW
|
1 set
|
||
|
Battery rack
|
Optional
|
1 unit
|
||
|
Power generating per day for 5 hour sunlight time
|
140KWh
|
|
||
Power inverter
Triple Phase Pure Sine Wave Power Inverter
VMI-III series of inverters are designed to fulfil the needs from various customes from different countries. Low noise, good protection, high transfer efficiency, long durability & reliability, easy operation & installation, with all these advangtages, we
use this inverter series to build the solar systems all over the world.
|
Model
|
|
VIM-D III 30KW
|
|
|
Input
|
AC Input Voltage Range
|
380Vac/400Vac±10%
|
|
|
|
AC Input Frequency Range
|
45Hz-65Hz
|
|
|
|
Phase
|
3/N/PE
|
|
|
Output
|
Efficiency
|
≥85%
|
|
|
|
Output Voltage(Battery Mode)
|
380Vac/400Vac±10%
|
|
|
|
Output Frequency(Battery Mode)
|
50/60Hz ±1%
|
|
|
|
Output Wave(Battery Mode)
|
Pure Sine wave
|
|
|
|
THD
|
liner load≤3%
|
|
|
|
AC Output Voltage Range
|
Conforming to AC input
|
|
|
|
AC Output Frequency Range
|
Conforming to AC input
|
|
|
|
Phase
|
3/N/PE
|
|
|
AC Charging current
|
0~45A
|
|
|
|
Working Mode
|
Battery First/AC First/Saving Energy Mode
|
|
|
|
Transfer Time
|
≤4ms
|
|
|
|
Display
|
LCD
|
|
|
|
Protection
|
Over-load / Over-discharge / Short circuit / High and low temperayure
|
|
|
|
|
Noise (1Meter)
|
≤65dB
|
|
|
|
Working ambient temperature
|
-10℃~+40℃
|
|
|
|
Humidity
|
0~95%
|
|
|
|
Working atitude (m)
|
≤2000
|
|
Our projects all over the world
Certifications
Packing & Delivery
HOT RECOMMENDATIONS
ABOUT MULTIFIT
Multifit is expert with ISO9001:2008 on manufacturing TUV, CE, SONCAP & CCC solar products to over 60 countires for 10 years, covering solar inverters, solar cleaning robots, solar street lights, ect.
And, Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
And, Multifit has experienced designing and installation teams on solar system, either off grid or on grid. This ability can help us better support our customer's capability to win new sales and do an excellent maintenance.
Exbihition Shows
FAQ
Yes, every solar system is customized, we work out the system based on your actual needs;
2. How to start system inquiry?
Please send me your specific requiements about the system, and send me the power load for the system;
3. Is this system off grid or on grid?
It is off grid system, and work with batteries;
4. How to start inqury?
I'm Daniel. Please click me at the right side. My Whatsapp or Wechat is +86 13546887310.
