Quick Details
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lamsword
-
Model Number:
-
LSW-80L
-
Monitoring:
-
WIFI setting and monitoring
-

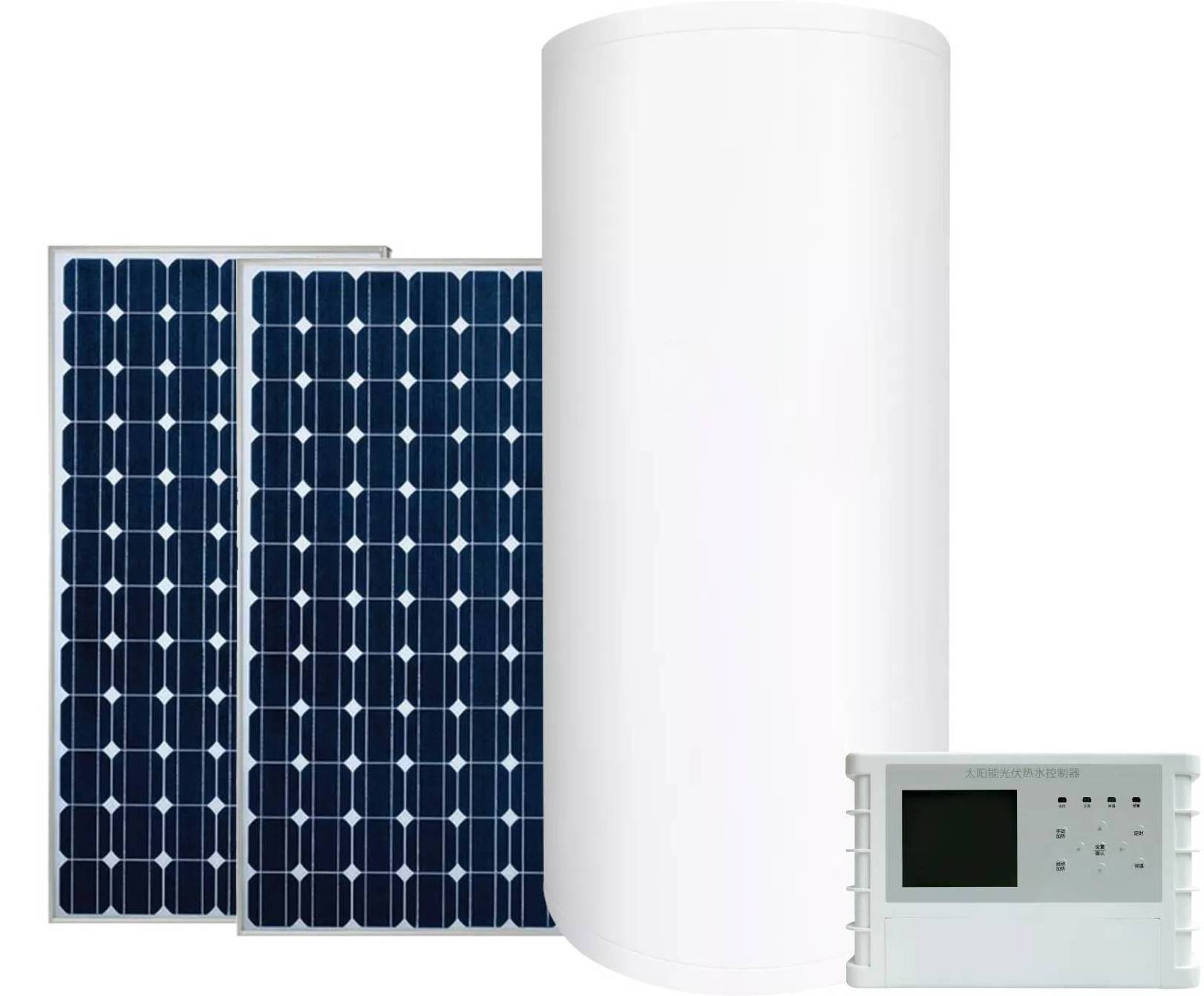

Product name:
-
Solar Water Heater
-
Inner tank material:
-
Enamel
-
monitoring system:
-
Remotely control and monitor
-
MPPT solar charge controller:
-
98.5% of the efficiency
-
Protection:
-
Over tempertre protection,leakage proection
Quick Details
-
Warranty:
-
2 years
-
Application:
-
Outdoor, Hotel, Garage, Commercial, Household
-
Type:
-
Flat-Plate
-
Circulation Type:
-
Direct / Open Loop (Active)
-
Capacity:
-
80
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Lamsword
-
Model Number:
-
LSW-80L
-
Monitoring:
-
WIFI setting and monitoring
-
Product name:
-
Solar Water Heater
-
Inner tank material:
-
Enamel
-
monitoring system:
-
Remotely control and monitor
-
MPPT solar charge controller:
-
98.5% of the efficiency
-
Protection:
-
Over tempertre protection,leakage proection
Product Description
Specification
|
Model
|
LSW-H50L
|
LSW-H60L
|
LSW-H80L
|
|||
|
Volume
|
50L
|
60L
|
80L
|
|||
|
Solar
|
|
|
|
|||
|
Solar Max output power
|
1200W
|
|
|
|||
|
Recommeded solar panel
|
500W
|
600W
|
800W
|
|||
|
Heating time 40℃
|
4 Hours
|
|
|
|||
|
Annual solar power Harvest
|
730KWH
|
876KWH
|
1168KWH
|
|||
|
Solar input voltage
|
40V-150VDC
|
|
|
|||
|
MPPT range
|
20V-145VDC
|
|
|
|||
|
AC
|
|
|
|
|||
|
AC heater power
|
2000W
|
|
|
|||
|
AC voltage
|
110V/220V
|
|
|
|||
|
Physical
|
|
|
|
|||
|
Monitoring
|
WIFI setting and monitoring
|
|
|
|||
|
Protection
|
Over temperture protection,leakage protection
|
|
|
|||
|
Tank dimension
|
390*785
|
390*900
|
440*835
|
|||
|
Package dimension
|
530*440*915
|
530*440*1030
|
555*495*950
|
|||
|
Net weight
|
19kg
|
21.5kg
|
26kg
|
|||
|
Gross weight
|
20kg
|
23kg
|
28kg
|
|||
