Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HotBox
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
0 - 200 ℃
-
Core Components:
-
heating element
-
Insulation material:
-
Polyimide
-
Heating element:
-
NiCr or FeCrAl resistance heating wire
-
Size:
-
Customized
-
Adhesive:
-
3M/none
-
Max temperature:
-
220C
-
Thickness:
-
0.15mm(standard)
-
Thermal Protection & Control:
-
Thermocouple/thermistor/thermostat
-
Color:
-
Red
-
Width:
-
max 500mm
-
Name:
-
Kapton polyimide heater pad
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HotBox
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
0 - 200 ℃
-
Core Components:
-
heating element
-
Insulation material:
-
Polyimide
-
Heating element:
-
NiCr or FeCrAl resistance heating wire
-
Size:
-
Customized
-
Adhesive:
-
3M/none
-
Max temperature:
-
220C
-
Thickness:
-
0.15mm(standard)
-
Thermal Protection & Control:
-
Thermocouple/thermistor/thermostat
-
Color:
-
Red
-
Width:
-
max 500mm
-
Name:
-
Kapton polyimide heater pad

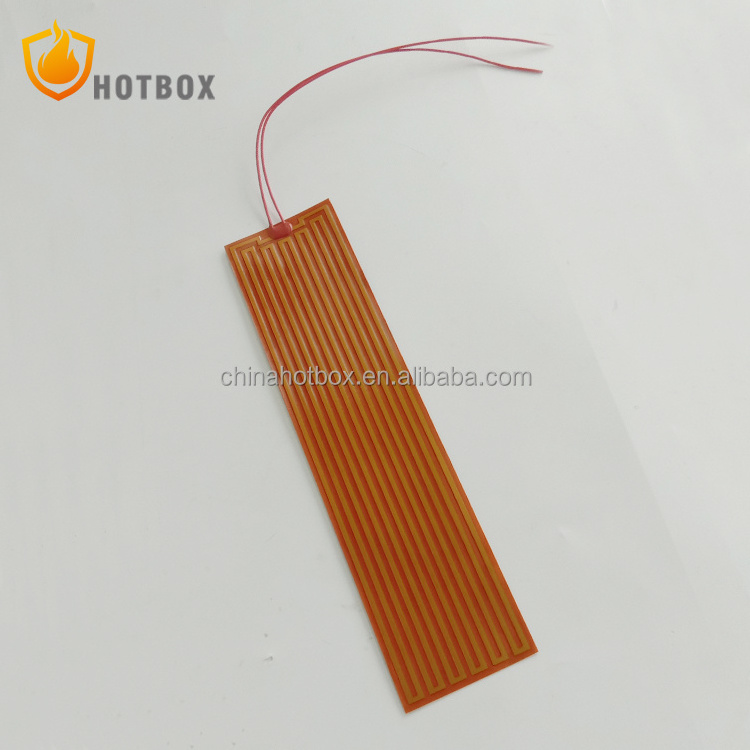

Kapton strip heater 12V/24V 350mm x 20 mm with 3M adhesive
Kapton polyimide heater,Semi-transparent, flexible and extremely thin with excellent dielectric strength, Polyimide film is ideally suited for the manufacture of etched foil heaters.
PI heaters have low thermal mass and excellent resistance to most chemicals, and allow high power densities(1w/cm2) with fast and efficient thermal transfer. Where fast response, chemical resistance is required or applications with space and weight limitations such as as satellites and aerospace equipment, kapton heaters offer the ideal solution.
PI heaters can also be exposed to vacuum with low out gassing and to radiation.
Technical Date Sheet:
| Voltage | 12~440V |
| Wattage | Max. 0.5w/cm2 |
| Operationg Temperature | -60~200C |
| Width | Max. 500mm |
| Thickness | 0.15mm |
| Thermal protection | On board thermal fuse,thermostat,thermistor and RTD devices are available as part of your thermal management solution. |
| Lead wire | Silicone rubber,SJ power cord |
| Heatsink Assemblies | Hooks,lacing eyelets,Or Temperature control(Thermostat) |
| Flammability Rating | Flame retardant material systems to UL94 V-O available. |
Types of sensors in heater:
Electrical Termination:
Why Kapton:
- Heating for very small sizes
- Very thin
- High dielectric strength
- Flexible circuit design
- Superior tensile strength and tear resistance
- Resistant to radiation and most solvents
- Better choice far high watt density heaters
- Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes and/or cutouts
- May provide and economic advantage for high volume applications
Main Applications:
- Prevent condensation in motors or instrument cabinets
- Freeze or condensation prevention in housings containing electronic equipment,for example:traffic signal boxes,automatic teller machines,temperature control panels,gas or liquid control valve housings
- Composite bonding processes
- Semiconductor process heating
- Food pricessing equipment
- Airplane engine heaters and aerospace industry
- Drums and other vessels and viscosity control and asphalt storage
- Curing of plastic laminates
- Computer peripherals such as laser printers,duplicating machines
Trade Terms: FOB,CIF,EXW
Payment Terms: T/T,West Union, MoneyGram,Paypal,L/C
Payment Condition: 30% deposit advance,70% balance after delivery at best
Delivery Time: 7 working days after payment
Packing: Neutral carton,Wooden case
Shipping: By sea,by air and by express delivery
1.Why the price is so low?
A: You are ordering directly from the factory.
2.How can I get the quotation and specifications?
A: HotBox's heating element and temperature sensor is customized,can produce based on clients' requirments.
3.Where is your factory located? How can I visist there?
Our factory is located in Yancheng City,Jiangsu Province,China,about 4 hours bus ride from shanghai.
4.What type of payment do you have available?
A: TT and L/C are accepted,for sample order,the West union/Money gram,Aliexpress and Paypal is available
5.How can I get some sample?
A: Samples are available,just contact HotBox
6.How does your factory do regarding quality control?
A: HotBox has over 15 years experience for heating elements,quality is controlled by CE,ISO and other quality certification.
Feel free to contact us for more details,the most competitive price for you!
