Quick Details
-
Brand Name:
-
SDJK
-
Fork Length:
-
1220mm
-
Overall Dimensions:
-
4200*1800*2700mm, 4400*1850*2800, 4400*1900*2900mm
-
Weight (KG):
-
3000 kg
-
Product Name:
-
Off Road Forklift
-
Keywords:
-
Forklift
-
Model:
-
JK3.0T,JK-3.5T(Standard version),JK-3.5T(High version),JK-4.0T,JK-5.0T
-
Loading Capacity:
-
3000kg-6000kg
-
Feature:
-
High Efficiency,Low Consumption,Hydraulic Systems,Safety Convenience
-
Tire type:
-
Non-slip off-road tire
-
Color:
-
Customer Demanded
-
Brand:
-
SDJK
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO, CE
Quick Details
-
Min. Lifting Height:
-
3000
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SDJK
-
Fork Length:
-
1220mm
-
Overall Dimensions:
-
4200*1800*2700mm, 4400*1850*2800, 4400*1900*2900mm
-
Weight (KG):
-
3000 kg
-
Product Name:
-
Off Road Forklift
-
Keywords:
-
Forklift
-
Model:
-
JK3.0T,JK-3.5T(Standard version),JK-3.5T(High version),JK-4.0T,JK-5.0T
-
Loading Capacity:
-
3000kg-6000kg
-
Feature:
-
High Efficiency,Low Consumption,Hydraulic Systems,Safety Convenience
-
Tire type:
-
Non-slip off-road tire
-
Color:
-
Customer Demanded
-
Brand:
-
SDJK
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
ISO, CE
WELCOME TO CHINA SDJK FORKLIFT PROFESSIONAL MANUFACTURER
SDJK factory is a professional manufacturer of forklifts. The forklifts we produce include electric forklifts, CPC forklifts, and
4WD off-road forklifts. As long as you tell us your needs, we can meet your requirements and establish a cooperative relationship
.

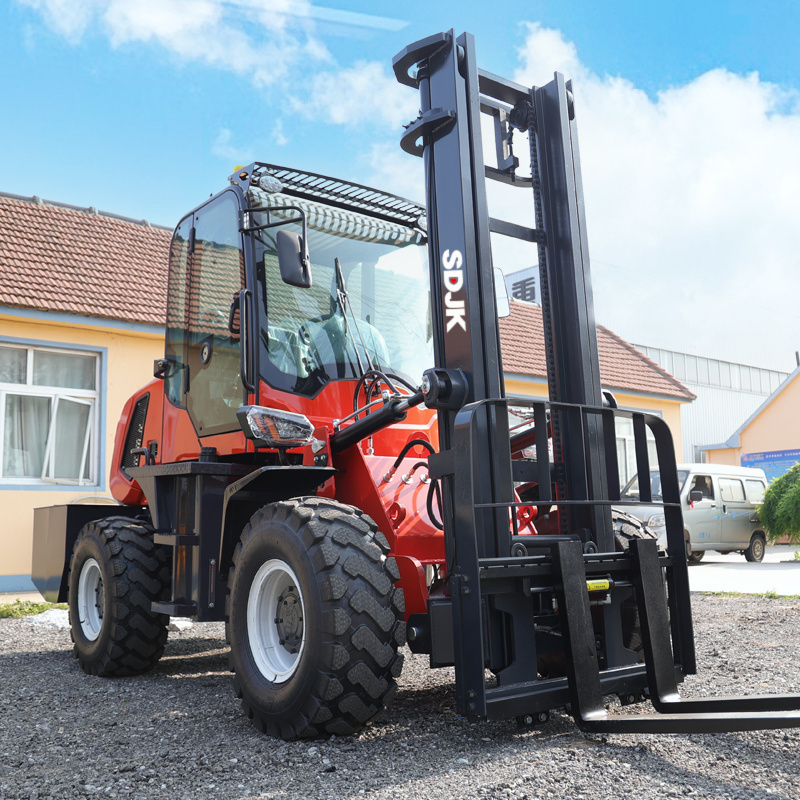

Off-road forklift is an engineering vehicle that can carry out loading, unloading, stacking and handling operations on slopes and uneven grounds. It is mainly used for urban construction sites, dock yards, construction mines, economic development, stone yards.
small and medium-sized civil engineering, mountain forest areas and other field projects, such as poor distribution of material conditions in the distribution of goods, it has good mobility, cross-country reliability.
small and medium-sized civil engineering, mountain forest areas and other field projects, such as poor distribution of material conditions in the distribution of goods, it has good mobility, cross-country reliability.
|
Product Name
|
Off-Road Forklift
|
|
|
|
|
||||
|
Model
|
JK-3.0T
|
JK-3.5T
(Standard version) |
JK-3.5T
(High version) |
JK-4.0T
|
JK-5.0T
|
||||
|
Size
|
4200*1800*2700mm
|
4200*1800*2700mm
|
4200*1800*2700mm
|
4400*1850*2800mm
|
4400*1900*2900mm
|
||||
|
Curb Weight
|
4000kg
|
4200kg
|
4200kg
|
5000kg
|
5500kg
|
||||
|
Fork Length
|
1220mm
|
1220mm
|
1220mm
|
1520mm
|
1520mm
|
||||
|
Climbing Angle
|
≤38°
|
|
|
|
|
||||
|
Rated Lifting Force
|
3000kg
|
3500kg
|
3500kg
|
4000kg
|
5000kg
|
||||
|
Lifting Height
|
3000-6000mm
|
|
|
|
|
||||
|
Turning Radius
|
3500mm
|
3500mm
|
3500mm
|
4500mm
|
4500mm
|
||||
|
Door Frame Width
|
0.7m
|
|
|
|
|
||||
|
Door frame front
ground clearance |
250-350mm
|
|
|
|
|
||||
|
Wheelbase center
ground clearance |
300mm
|
300mm
|
300mm
|
350mm
|
350mm
|
||||
|
Frame
|
Hinged thickness 3mm
|
|
|
|
|
||||
|
Axle
|
Small wheel side
weight cast steel bridge |
Small wheel side
weight cast steel bridge |
Small wheel side
weight cast steel bridge |
Middle wheel steel bridge
|
Large wheel steel bridge
|
||||
|
Tire
|
Large 20.5 / 70-16 tires
|
Large 20.5 / 70-16 tires
|
Large 20.5 / 70-16 tires
|
Large 20.5 / 70-16 tires
|
16/70-20 tires
|
||||
|
Drive Mode
|
Four-wheel drive
|
|
|
|
|
||||
|
Engine Model
|
HuaDong 4DBY4(490)
|
Yunnei YN27(490)
|
Yunnei YN27GBZ
(490 supercharger) |
HuaDong 4DHZY4
(4102 supercharger) |
Yunnei YN38GBZ
(4102 supercharger) |
||||
|
Engine Power
|
40 KW
|
42 KW
|
58 KW
|
76 KW
|
76 KW
|
||||
|
Gearbox
|
265 double high and low speed
Large pump torque converter Hydraulic torque converter |
265 double high and low speed
Large pump torque converter Hydraulic torque converter |
265 double high and low speed
Large pump torque converter Hydraulic torque converter |
280 double high and
low speed torque converter |
280 double high and
low speed torque converter |
||||
|
Fuel Tank Volume
|
50 L
|
50 L
|
50 L
|
60 L
|
60 L
|
||||
|
Power Battery Voltage
|
24 V
|
|
|
|
|
||||
|
Payment Iterm
|
T/T, LC, O/A, DP
|
|
|
|
|
||||
|
Warranty Period
|
1 year free warranty
|
|
|
|
|
||||
|
Delivery Time
|
Within 7 Days
|
|
|
|
|
||||
