Quick Details
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Engine Model:
-
SC7H180.2G3
-
Minimum working weight:
-
15000kg
-
Maximum working weight:
-
30300kg
-
Counterweight water:
-
650kg
-
Counterweight mass:
-
14550kg
-
Ground pressure:
-
200-545kPa
-
Minimum turning radius:
-
7620mm
-
Minimum ground clearance:
-
300mm
-
Compaction width:
-
2360mm
-
Tire overlao:
-
65mm
-
Certification:
-
CE/ISO9001
Quick Details
-
Type:
-
Tire Roller
-
Power:
-
132kW
-
Weight:
-
15000kg
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service Provided:
-
Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
-
Engine Model:
-
SC7H180.2G3
-
Minimum working weight:
-
15000kg
-
Maximum working weight:
-
30300kg
-
Counterweight water:
-
650kg
-
Counterweight mass:
-
14550kg
-
Ground pressure:
-
200-545kPa
-
Minimum turning radius:
-
7620mm
-
Minimum ground clearance:
-
300mm
-
Compaction width:
-
2360mm
-
Tire overlao:
-
65mm
-
Certification:
-
CE/ISO9001

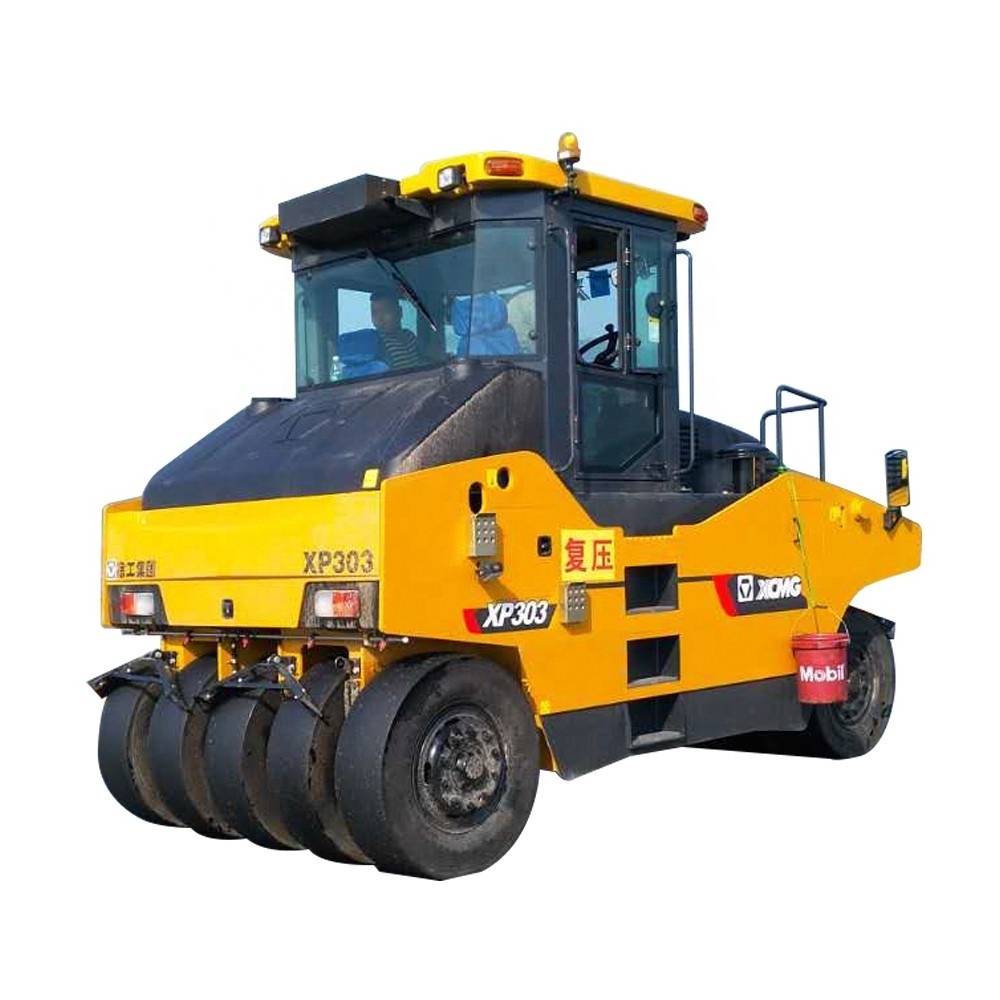

light vibratory static road roller XP303 30t pneumatic rubber tire compactor price
Product Description
XP303 tire roller is mainly used in compaction operations such as asphalt pavement, foundation layer, sub-base layer, dam and filling project, etc. It is an ideal compaction equipment for building high-grade highways, airports, ports, dams and industrial construction sites.
Main Parameter
| Description | Unit | Parameter value | |
| Minimum operating mass | kg | 15000 | |
| Maximum operating mass | kg | 30300 | |
| Mass of added heavy water | kg | 650 | |
| Added mass | kg | 14550 | |
| Compacting width | mm | 2360 | |
| Overlap amount of tires | mm | 65 | |
| Ground pressure | kPa | 200-545 | |
| Minimum turning radius | mm | 7620 | |
| Swing amount of front wheel | mm | ±50 | |
| Minimum ground clearance | mm | 300 | |
| Theoretical gradeability | % | 20 | |
| Wheelbase | mm | 3840 | |
| Driving speed | I | km/h | 0-8 |
| II | 0-17 | ||
| Model of diesel engine | SC7H180.2G3 | ||
| Rated power | kw | 132 | |
| Rated speed | r/min | 1800 | |
| Rated fuel oil consumption | g/kW·h | ≤233 | |
| Tire specification | 13/80-20 | ||
| Tread pattern | Smooth tread tire | ||
| Number of tires | 4 front tires and 5 rear tires | ||
| Length (standard for sprinkling water) | mm | 4925 | |
| Length (optional for spraying oil) | mm | 5015 | |
| Width | mm | 2530 | |
| Height | mm | 3370 | |
| Capacity of fuel tank L | L | 170 | |
| Capacity of water tank L | L | 650 | |
