Quick Details
-
Power:
-
5w
-
Voltage:
-
9-35v
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yoelbaer or Customized
-
Model Number:
-
Wireless- 10.1-X36
-
Keyword:
-
10 inch AHD 1080P Wireless Screen 2CH 4 Channel Split DVR Monitor
-
Feature:
-
Built-in DVR, Max Support 256GB
-
Camera:
-
HD night vision and Waterproof
-
Resolution:
-
1080p , 2.0MP
-
Screen Type:
-
10.1 Inch IPS Screen, 1/2/3/4CH
-
Power Supply:
-
12-24V
-
Contrast:
-
500:1
-
Brightness:
-
400CD
-
TV system:
-
PAL NTSC
Quick Details
-
Car Fitment:
-
Universal
-
View Angle:
-
90°-120°
-
Function:
-
Waterproof, NIGHT VIEW, Split Screen, Parking Line
-
Power:
-
5w
-
Voltage:
-
9-35v
-
Warranty:
-
1 Years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yoelbaer or Customized
-
Model Number:
-
Wireless- 10.1-X36
-
Keyword:
-
10 inch AHD 1080P Wireless Screen 2CH 4 Channel Split DVR Monitor
-
Feature:
-
Built-in DVR, Max Support 256GB
-
Camera:
-
HD night vision and Waterproof
-
Resolution:
-
1080p , 2.0MP
-
Screen Type:
-
10.1 Inch IPS Screen, 1/2/3/4CH
-
Power Supply:
-
12-24V
-
Contrast:
-
500:1
-
Brightness:
-
400CD
-
TV system:
-
PAL NTSC

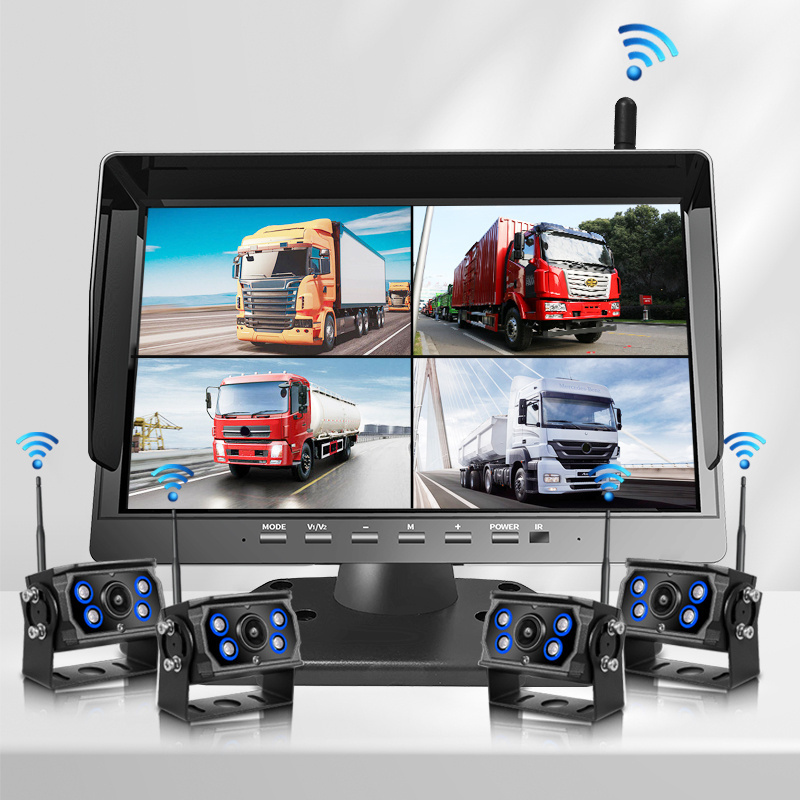

10 inch AHD 1080P Wireless Screen 2CH 4 Channel Split DVR Monitor 24V Bus Trailer SUV Truck Car Rear View Backup Camera Kit
Features:
1. 10.1 inch LCD TFT monitor with 4 channels simultaneously real time live recording
2. 1080P Digital Wireless Signal transfer .
3. Cameras full-in glue , strong waterproof feacture
4. Cameras with IR Cut , No color difference for Day and Night Vision
5. Stable Signal Transfer for 500-800M Open Distance
6. Support wide operating voltage range: 12-24V DC
7. IP67 waterproof design for working well in all adverse weather conditions
8 .Operating Temperature: -25℃~+65℃, for stable performance in low and high temperature
9 . System Kit: 1* 10.1inch wireless monitor, 1/2/4* wireless camera
Screen Specification :
| Screen | TFT-LCD |
| Screen size diagonal | 10 inch (16 : 9) IPS |
| Number of Pixels | 1080P , Digtal , Wireless |
| Screen backlight | LED |
| Brightness | 400cd/m2 |
| Viewing angle | 90-100 |
| Power supply | DC12V -24V |
| Power Consumption | MAX 250mA (12V) |
| Operating Frequency | 2.4GHz~2.4385GHz |
| Video Cooding | H.264 |
| Modulation Type | FSK/GFSK |
| Spread Spectrum | FHSS |
| RX Sensitivity | -89dBm |
| Delay | ≤30ms |
| Range | 1000m |
| SD card: | Max.256G |
| System | PAL/NTSC/AUTO |
| Language | English |
| Image rotation | upper/lower/left/right |
| Operation Temperature | - 20 ~+70 ℃ |
| Storage temperature | - 30 ~+80 ℃ |
| Dimensions | 200(L)*120(W)*65mm(T) |
Camera Specification :
| Resolution | 1280*1080 |
| Frame Rate | 25fps/30fps |
| Video Format | H.264 |
| Operating Frequency | Digital Wireless |
| Output Power | 17dBm |
| Transmitting distance | 200M |
| Delay | 30ms |
| Sensitivity | 0 Lux (IR LED On) |
| Lens | 2.8MM |
| S/N Ratio | More than 44dB (AGC Off) |
| White Balance | Auto |
| BLC | Auto |
| Infrared LED | 18 |
| Power supply | DC12-24 |
| Power Consumption | MAX 300mA |
| Water Proof | IP67 |
| Operatiom Temprature | - 20 ~ 70 ℃ |
| Storage temperature | - 30 ~ 80 ℃ |
