Quick heat transfer
• Moisture and chemical resistant
• Thin
• Flexible
• Solidly built
• Adheres to all surfaces
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuheng
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1 KG
-
Core Components:
-
other
-
Maximum size:
-
1000m~1200m
-
Minimum size:
-
20mm*20mm
-
Ambient Temperature:
-
-60~250℃
-
Maximum thickness:
-
1.5mm~4mm
-
Insulation resistance:
-
≥5MΩ
-
Power deviation:
-
+-5%
-
Highest temperature:
-
250℃
-
Withstand voltage:
-
1.5KV
-
Wire Type:
-
Silicone braided wire
Quick Details
-
Type:
-
Flexible Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-380V
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Yuheng
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
1 KG
-
Core Components:
-
other
-
Maximum size:
-
1000m~1200m
-
Minimum size:
-
20mm*20mm
-
Ambient Temperature:
-
-60~250℃
-
Maximum thickness:
-
1.5mm~4mm
-
Insulation resistance:
-
≥5MΩ
-
Power deviation:
-
+-5%
-
Highest temperature:
-
250℃
-
Withstand voltage:
-
1.5KV
-
Wire Type:
-
Silicone braided wire
Product Description
Yuheng

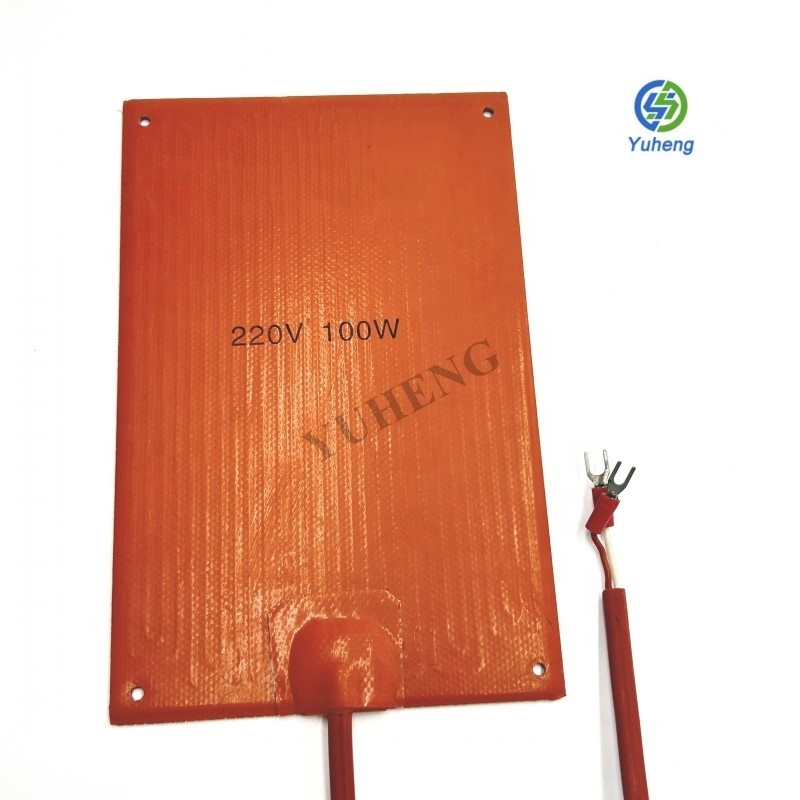

Silicone Rubber Heaters
are available as wire wound or etched foil. Wire wound elements consist of the resistance wire wound on a fiberglass cord for support and stability. Etched foil heaters are made with a thin metal foil (.001”) as the resistance element. Wire wound is recommended and preferred for small to medium size quantities, medium to large
heaters, and to produce prototypes to prove out the design parameters prior to entering into large volume production runs with etched foil.
|
Min Size
|
20*20mm
|
|
Max Size
|
10m Length
|
|
Working Temp
|
-40 degree to 180 degree
|
|
Max Temp
|
200 degree for short time
|
|
Install
|
* 3M Back adhesive to stick
* Spring to hug
|
|
Controller
|
Dial and Digtal
|
|
Plug
|
US/UK/Euro
|
|
Accessories
|
Surface Mount thermal fuse, thermostat, thermistor and PT100,etc
|
APPLICATION
Main Applications
Related Products
Packing&Shipping
Packing:
Export carton package and wooden case.
Shipping:
Door to door service and air and sea transportation for choose.
After Sales Service
1.
Package tracking
2. One year
guarantee
3. T
echnical support
4. 12 hours wking time
5. Discount for reorder
6. Replacements for quality problems
7. Confidentiality of customer information
