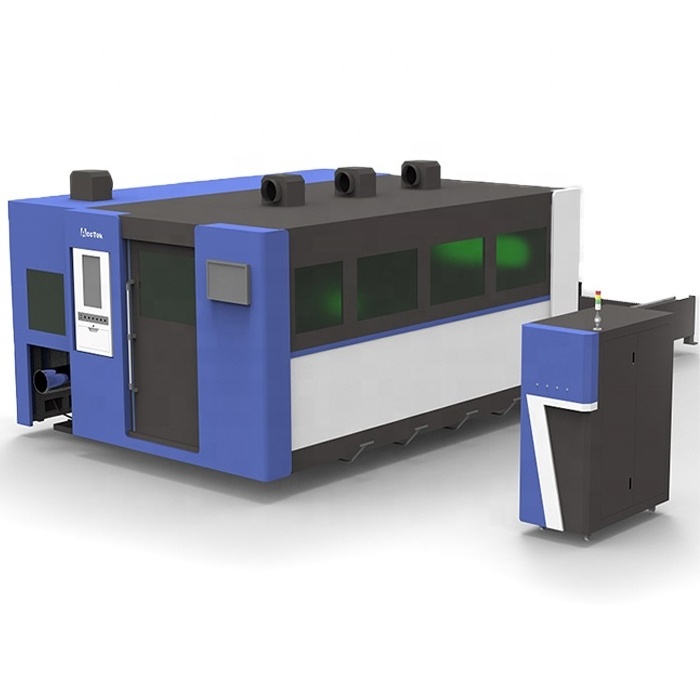

Installing the protection cover for the fiber laser cutting machine can not only protect the machine, but also protect the safety of the operators and improve the safety factor when the machine is in production. Moreover, the protective cover is installed to ensure that the dust and garbage generated by the cutting will not leak out, and it can more ensure the cleanliness of the plant.
- Product Details
- {{item.text}}
Quick Details
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-40mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Weight (KG):
-
4500 KG
-
Warranty of core components:
-
2 Year
-
Working area:
-
1500mmX3000mm
-
Type:
-
Full Closed Fiber Laser Cutting Mchine
-
Rails specification:
-
Taiwan Hiwin guide rails 30mm
-
Laser generator:
-
Raycus1000w
-
Cutting head:
-
Raytools Brand Cutting Head
-
controller systerm:
-
Cypcut
-
Motor:
-
XY axis Japanese Yaskawa servo motor 850w
-
Transmission:
-
APEX/YYC gear and rack
-
Weight:
-
4500KG
-
Cnc or not:
-
cnc
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
0-35mm/min
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Cypcut
-
Cutting Thickness:
-
0-40mm
-
Control Software:
-
cypcut
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
AccTek
-
Weight (KG):
-
4500 KG
-
Warranty of core components:
-
2 Year
-
Working area:
-
1500mmX3000mm
-
Type:
-
Full Closed Fiber Laser Cutting Mchine
-
Rails specification:
-
Taiwan Hiwin guide rails 30mm
-
Laser generator:
-
Raycus1000w
-
Cutting head:
-
Raytools Brand Cutting Head
-
controller systerm:
-
Cypcut
-
Motor:
-
XY axis Japanese Yaskawa servo motor 850w
-
Transmission:
-
APEX/YYC gear and rack
-
Weight:
-
4500KG
-
Cnc or not:
-
cnc
smoothly cutting enclosed double auto change table with rotary 1kw 1.5kw stainless metal fiber laser cutting machine 3015
Product Description
Main feature/Advantage:
1.High speed, high precision, high efficiency and low cost
2.Easy on operation, fiber optical path, without tediously adjustment on optical path
Compact structure, good sealing, strongly adaptable to changes in the environment.
3.With the perfect automatic nesting system which can save time, save the materials, the sheet utilization ratio up to 95%
4.Moving crossbeam, imported high precision racks and linear guide rail, stable transmission, high precision.
5.Using professional and powerful Shanghai Cypcut fiber cutting controlling system that based on Windows operating system, with good Human Machine Interaction and easy operation.
6.Laser is produced without gas and it could use air to cut sheet metal
7.Machine frame, crossbeam and worktable adopt integral welding structure. With stress relief annealing and vibration stress relief treatment, it can completely eliminate the welding and processing stress, maintaining high strength and precision, keeping the normal use of 20 years without deformation
Specification
|
item
|
value
|
|
Cutting Area
|
1500*3000mm
|
|
Place of Origin
|
Shandong, China (Mainland)
|
|
Brand Name
|
AccTek
|
|
Laser Head Brand
|
Raytools
|
|
Servo Motor Brand
|
XY axis Yaskawa servo motor and driver 850w
Z axis panasonic 400w
|
|
Machine Table
|
double table
|
|
Control System Brand
|
Cypcut
|
|
Warranty
|
3 years
|
|
Warranty of core components
|
2 years
|
|
Laser generator
|
Raycus 1000W/1500W/2000W
|
|
transmission
|
gear and rack
|
|
pneumatic element
|
Taiwan Airtac/Japanese SMC
|
|
Reducer
|
French MOTOVARIO
|
|
cooling systerm
|
water chiller
|
|
Rails
|
Taiwan Hiwin 30mm guide rails
|
|
electronic element
|
French Schneider
|
Details introduction
Rotary attachment
For metal pipe cutting ,square pipe ,round pipe .Rectangular tube.
Double table:
Automatic Exchange working table,Can effectively improve work efficiency
Water chiller
When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.
Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.Water in chiller should be pure water.
Yaskawa servo motor &driver
Japan Yaskawa servo motor is top brand in all over the world. is famous for the high precision,stable performance,Better quality and service support in globe market.
It makes the machine cutting at high speed with signal feedback, Low heat radiation. Run smoothly at ultra-low speed. Reduce the vibration, avoid oscillation.
Protection cover
Application & Samples
fiber laser cutting machine as one classic model, widely used in life, such as processing of stainless steel kitchenware, storage cabinets other cabinets. Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.
Our service
Before you buy:
1 Before you buy, free sample test is available.
2 Timely and effective technical consult with more than 15 year export experience
3 Welcome to visit our factory.
After you buy:
4 The machine is smart and easy to operate, A very detailed manual instruction will help you to know the machine part and how to use it quickly.
5 We have two training model: online + offline service.
6 Warranty lift time is 3 years for whole machine and 2 years for the laser generator
Online service:
We have big online video data that including machine running test, installing, debugging, maintain, trouble removing,etc. Most of issue you considerate, you will find the solution in the data. Surely,we can face time by whatsapp, skype, wechat to make guide, training. I will 7*24 hours online. You can call me at anytime if you are urgent
Offline service:
our engineer who can speak English and has more than 15 years machine experience will go to your factory to training if needed. And if possible, you can also send engineer to our factory to learn.
Packing & Delivery
1.Whole film packaging machine.
2.Anti-collision package edge.
3.Fumigation-free plywood wooden box with an iron-binding belt.
4.According to the customer's requirements for loading the whole container or LCL at Qingdao Port.
