Name: Gear Box
Brand: Chinese famous brand
Original: China
- Product Details
- {{item.text}}
Quick Details
-
Output (kg/h):
-
350 - 800
-
Raw material:
-
PVC
-
Color:
-
Customerised
-
Power(W):
-
37-125KW
-
Automatic Grade:
-
Full automatic
Quick Details
-
Screw Design:
-
Single-screw
-
Screw diameter (mm):
-
90 mm
-
Place of Origin:
-
Jiangsu, China
-
Output (kg/h):
-
350 - 800
-
Raw material:
-
PVC
-
Color:
-
Customerised
-
Power(W):
-
37-125KW
-
Automatic Grade:
-
Full automatic
Product Description
Product Application

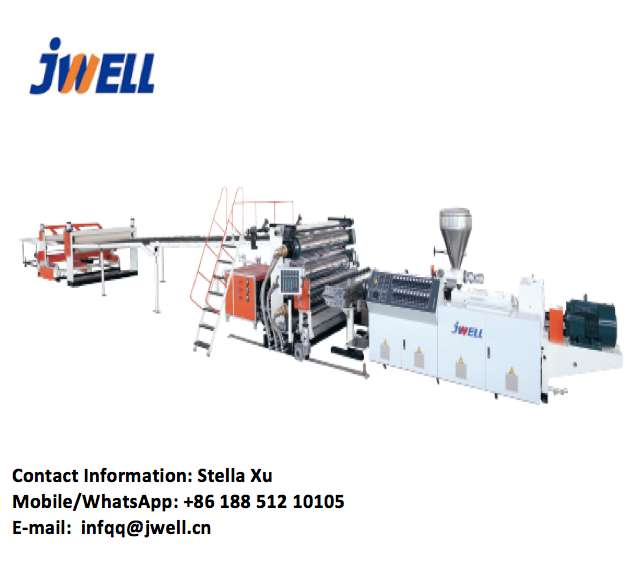

Jwell PVC Single Screw WPC(foaming) Extrusion Line
The production line is mainly used for the production of the Great Wall panels,partition walls,pinch plate,acoustic panels,stair railing,shutters,decorative,foot line and any other eco-wood plastic productions.The extruder with the unique screw design prevents raw material from high shear or over plasticizing.As a result,products gain significant texture of wood surface,and product with characteristics:no deformation,non-fading,fire prevention,anti-corrosion,anti-moth,anti-aging and anti-UV.
|
Product width(mm)
|
108
|
180
|
240
|
300
|
|
Extruder type
|
JWS45/25
|
JWS65/25 or JWS75/25
|
JWS90/25
|
JWS120/25
|
|
Motor power(kw)
|
11
|
22/30
|
55
|
55
|
|
Type
|
YF108
|
YF180
|
YF240
|
YF300
|
|
Output(kg/h)
|
20
|
50/70
|
90
|
150
|
|
Cooling water(m3/h)
|
7
|
7/7
|
8
|
9
|
|
Compressor air(m3/min)
|
0.5
|
0.6/0.6
|
0.8
|
0.8
|
Main Features
Excellent character for WPC material
1. Excellent water resistance, the bending strength and stiffness will not change after immersing in water for 30days.
2. Excellent antisepsis; as non-absorbent, it will not rot and has a very good quality of corrosion resistance, neither does it has termites harmless.
3. Truly green & environment-friendly, no release of formaldehyde and can be recycled. It can save the nature wood resources which was also called revolutionary green environmental newly material.
4. Anti-crash. The fixing ability of wood screw is very strong, which is 4 times than wood-dust board, and 5 times than MDF(medium density fiberboard).
5. It can be used as an outdoor sheet for long time because of its well anti-ultraviolet function and good capability even in the temperature of minus 30 degree.
6. Although using thermoplastic composite material, it wouldn't be soften even in an temperature of 120degree.
Jwell Changzhou Factory
Jwell Suzhou Factory
Jwell Shanghai Factory
Mold factory
Jwell Zhoushan Facotry
Screw factory
Jwell Guangdong Factory-BKwell
Certifications
Detailed Images
Machine Parts
Main Features
Name:
Screw
Brand:
Jinhailuo
Original:
China
The first screw in China was made by Jinhailuo in 1978
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
123 (L) * 456 (W) * 789 (D)
|
|
|
Weight
|
1.2 T
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
