2750kw Water Turbine Generator Project with Penstock Pipe for High Head Hydropower Plant

PRODUCT INFORMATION

-----------------------------------------------------------------------------------------------------

Pelton turbine is widely used in hydropower plants with high water head ranging from100m onwards to 1700m commonly 150 to 800m. As the water head and speed comparatively stable, the Pelton turbine has the advantage of working with high efficiency of about 90.5% in widely range and generator efficiency about 93% to 96%.

PRODUCT SHOW

-------------------------------------------------------------------------------------------------------

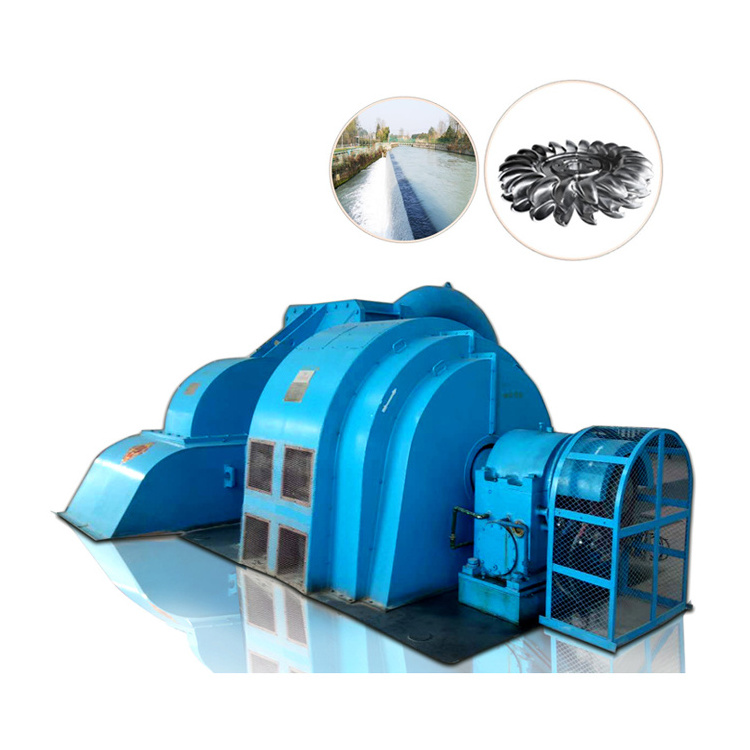

Horizontal Water Turbine Generator:

1.Output: 2500kW 3000kW 5000kW 6000kW
2.Water Head: 150m 200m 260m 500m 700m

3.Voltage: 400V 3300V 6300V 10500V

4. Frequency: 50Hz or 60Hz

5.Runner Blades: ZG0Cr13Ni4Mo

6.Wheel Diameter:60cm 100cm 120cm

7. Efficiency: 93% to 96%

8. Runner Speed: 600rpm 750rpm 1000rpm

9. Insulation Level: F/F

10.Application: Hydropower Plant

Basic Parameters

-----------------------------------------------------------------

Details Show

----------------------------------------------------

Water Turbine:

The material we use for the water turbine runner blades is stainless steel 0Cr13Ni4Mo which could is wearable and provent corrosion. Thus the stainless steel runner would has longer life compared with cast iron wheels.

Runner is the heart of wate turbine which is also our advantage. Because our company locates in Deyang, Sichuan, China. DEC, the Dongfang Electric Cooperation, also the  largest water turbine generator manufcturer in the world is located in Deyang. We cooperate with DEC for many hydropower projects. So we would choose the best suitable and economic runner design models with high efficiency.

Water Turbine Generator:

The generator of the turbine generator sets is AC three phase alternator with F/F insulation.

The stator core is silicon steel sheet 50ww310, w hile rotor shaft main shaft 45# forged steel.

The excitation could adpot thyristor excitation or brushless excitation.

The cooling system ensures the water turbine generator working in a good condition.

RECOMMEND MAIN PRODUCTS

-------------------------------------------------------------------------------------------------------

Water Turbine

1.Power: 200kW-30MW

2.Water Turbine Type: Pelton turbine, Francis turbine, Turgo turbine, Kaplan turbine, Tubular turbine
3.Life time:30-50 years
4.Water Head:
1):Axial turbine and Tubular Turbine: Low water head
2) Mixed flow turbine: Low & Middle water head
3) Impulse Turbine: High water head
5.Arrangement type : Vertical or Horizontal

6.Efficiency:92%-94.5%

Water Turbine Generator
1.Output: 200KW, 500KW, 1000KW, 2000KW, 4000KW 5000KW
2. Voltage: 400V, 3300V, 6300V, 10500V,13800V
3.Wheel material : Stainless steel ZG0Cr13Ni4Mo
4. Wheel diameter: 0.38m-5m
5.Frenquency: 50Hz / 60Hz
6.Efficiency: 93%-96%

ABOUT  DSSD

-------------------------------------------------------------------------------------------------------

Deyang Dongsen Hydropower Equipment Co., Ltd . is a professional comprehensive technology engineering company including the design, manufacturing, installation and maintenance of hydropower equipment as well as in the hydropower station investment with more than 20 years experience.

We have five main water turbine generator unit categories: Francis , Kaplan , Tubular , Pelton and Turgo with the quality management system of ISO9001 and TüV authentication.

If you could offer us the precise parameter like water flow(m³/s) , water head(m) and some other necessary data, we could help you to choose the models of water turbine and water turbine generator with high efficiency.

We are sincerely welcome your visit and long cooperation.

Workshop

-------------------------------------------------------------------

DSSD combines the new designs and the modern together traditional processing methods.

Customer Visit

----------------------------------------------------------------------

DSSD has its seperated technique team, installation team as well as international trade team.

We work together to garantee the best service and professional designs & high efficency equipments. There customers from home and abroad have highly appreciated DSSD.

Our Certificates

--------------------------------------------------------------

DSSD also has our own strictly quality control system, for all of our products are with the quality management system of  ISO9001 and TÜV.

PACKAGE & DELIVERY

-------------------------------------------------------------------------------------------------------

Hydrauli turbine generator is customized products, and normally quite huge for transportation, so each of units would might have differenct packing.

Normally would be as below:

1.Plastic film wrapped the important parts of water turbine, water turbine generator, shaft etc.

Then fix the equipmnt in the container if its too big to put into wooden box.

2.Wooen box for small accesaries and auto elements, like governor, excitation, transformer, valves.

3. Container and Shipping, some place for land carriage.

FAQ & CONTACT

---------------------------------------------------------------------------------

Q: Are you trading company or manufacturer ?
A: We are factory professionally making water turbine, water turbine generator and units,valves,for hydropower station .

Q: What kind of service could you offer?
A: We can offer design, manufacture, EPC, hydropower station investment, repair and mantainance.

Q: I want to develop a hydropower station, could you help me to design?
A: Yes.We could do EPC. Please offer us necessary files and data.

Q: Which parameters I need to offer?
A: Normally we need water head, flow, install capacity,voltage, frequency and rotate speed.

Q: How many years' manufacturing experience do you have?
A: 20 years' experience in the hydropower manufacturing field and provided services for more than 500 hydropower stations.

Q:Would you offer installation?
A: Yes. We have installation.

Q: How long is your delivery time?
A: Generally it is 120-180 producing days after contract sighed and deposit received.

Please send me the below parameters and draft about the hydropower project to us, then we would offer technical proposals for you.

1. Water head:______M

2. Water flow:_______M³/s

3. Frequency: 50Hz/60Hz

4. Generator output voltage:________V

5.On-grid or off-grid type? (On-grid type voltage:_____Kv)

6.Basic situation about the project and your company introduction.
