Quick Details
-
Weight (KG):
-
500 kg
-
Product name:
-
Electric Wire Rope Hoist
-
Application:
-
Construction Site Lifter
-
Name:
-
Lifting Equipment Hoist
-
Capacity:
-
0.5-30T
-
Voltage:
-
AC 220/380v 50Hz
-
Power supply:
-
380V 50Hz Three-phase
-
Hook:
-
Forged Alloy Steel Hooks
-
Lifting height:
-
6m-30m(max 100m)
-
Control Method:
-
Pendant +Remote(Customized)
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Dingya Crane
-
Weight (KG):
-
500 kg
-
Product name:
-
Electric Wire Rope Hoist
-
Application:
-
Construction Site Lifter
-
Name:
-
Lifting Equipment Hoist
-
Capacity:
-
0.5-30T
-
Voltage:
-
AC 220/380v 50Hz
-
Power supply:
-
380V 50Hz Three-phase
-
Hook:
-
Forged Alloy Steel Hooks
-
Lifting height:
-
6m-30m(max 100m)
-
Control Method:
-
Pendant +Remote(Customized)
Product Description
|
Capacity
|
Tons
|
0.25/0.5/1/2/3
|
5
|
8
|
10
|
16
|
20
|
25
|
32
|
||||||||
|
Hoisting Height
|
m
|
8 8/0.8
|
|
|
7
7/0.7
|
3.5
3.5/0.35
|
3
3/0.3
|
2.4
2.4/0.24
|
|
||||||||
|
Hoisting Speed
|
m/min
|
20/30
|
|
|
|
|
20
|
|
|
||||||||
|
Wire Rope
|
Dia.
(mm)
|
3.6-13
|
15
|
|
|
17.5
|
20
|
|
26
|
||||||||
|
|
Spec.
|
D-6 x 37+ 1
|
|
|
|
6x 37 +1
|
|
|
|
||||||||
|
Power Supply
|
380v/50hz/3ph or Customized
|
|
|
|
|
|
|
|
|
||||||||

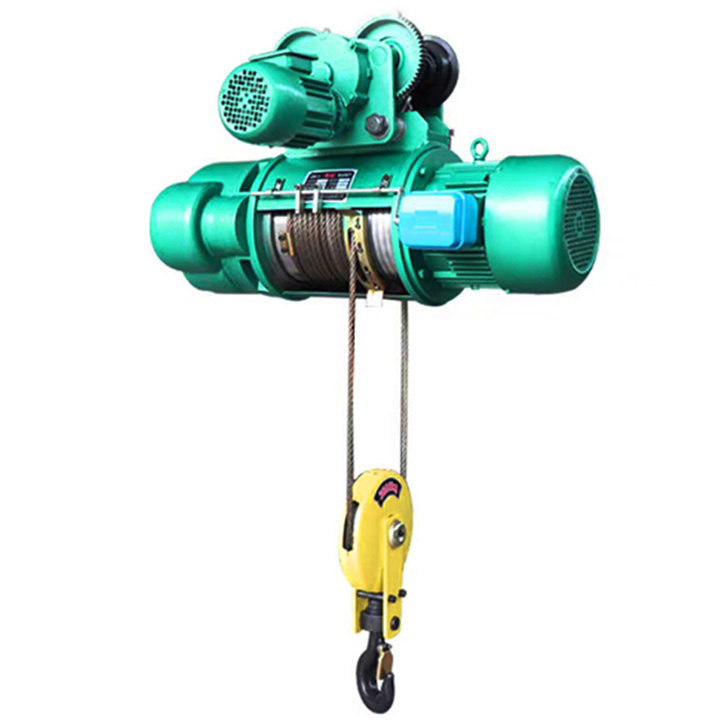

Crane Lifting Machine 1000kg 2ton 3ton 5ton 8ton Electric Wire Rope Hoist can be widely used to lift heavy objects, or installed on the straight or curve I-section steel beam of single beam cranes. They can also be used together with Electric Hoist Double beam gantry cranes, overhead bridge cranes and jib cranes. All the above has made the electric hoists common in industrial and ore enterprises, railway, wharf and warehouses.
CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
CD model electric hoist has one lifting speed. MD model electric hoist has normal lifting speed and slow lifting speed which make it lift steadily and accurately.
Features:
1.The structure includes reducer, running mechanism, reel device, hook device, coupling, slow drive device (only MDK type),flexible cable flow guide, stopper, motor, lifting weight limiter , Electronic control system and other eleven main components. It is convenient to use and maintain in Africa, which can shorten the product maintenance cycle.
2.Adopt cone brake motor.
3.The lifting speed has normal speed (CDK type) and normal and slow speed (MDK type), which are controlled by the control button.
4.Standard modular helical gear reducer is adopted, which is convenient for maintenance and assembly.
1.The structure includes reducer, running mechanism, reel device, hook device, coupling, slow drive device (only MDK type),flexible cable flow guide, stopper, motor, lifting weight limiter , Electronic control system and other eleven main components. It is convenient to use and maintain in Africa, which can shorten the product maintenance cycle.
2.Adopt cone brake motor.
3.The lifting speed has normal speed (CDK type) and normal and slow speed (MDK type), which are controlled by the control button.
4.Standard modular helical gear reducer is adopted, which is convenient for maintenance and assembly.
Why Choose Us
Beginning in 2003, Dingya crane engineers began to continuously try the application of frequency converters on cranes. It has been continuously verified for 18 years and has been selected from many brands and different models of inverters at home and abroad.
Today, Dingya has been very mature in technology for variable frequency cranes driven by frequency converters for weightless lifting. Dingya has now exported to Poland, UAE, the USA, Saudi Arabia, UZ, Cote d'Ivoire, Argentina, Canada etc and many countries in Southeast Asia (The Philippines, Cambodia, Vietnam, India, Indonesia, Mongolia)…
"Let more users use good cranes" is also Dingya's consistent philosophy. We sincerely hope to help and serve more users!
Today, Dingya has been very mature in technology for variable frequency cranes driven by frequency converters for weightless lifting. Dingya has now exported to Poland, UAE, the USA, Saudi Arabia, UZ, Cote d'Ivoire, Argentina, Canada etc and many countries in Southeast Asia (The Philippines, Cambodia, Vietnam, India, Indonesia, Mongolia)…
"Let more users use good cranes" is also Dingya's consistent philosophy. We sincerely hope to help and serve more users!
FAQ
1. How about sample & MOQ policy?
Welcome sample order. MOQ can be 1 set.
2. What is the delivery time?
Special voltage is shipped within 10 days; Conventional voltage is shipped within 7 days
3.What should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage? Like 380v/50hz/3ph or others?
Welcome sample order. MOQ can be 1 set.
2. What is the delivery time?
Special voltage is shipped within 10 days; Conventional voltage is shipped within 7 days
3.What should I provide when inquiry?
The more information you provide, the accurate solution we can prepare for you!
A- lifting capacity?
B-lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage? Like 380v/50hz/3ph or others?
E-What's the daily average work time ? Like 8 hours/ day?
