The wood pellet machine can be combined with other equipment to form a production line. The logs are initially crushed by the wood chipper machine, and then crushed into wood sawdust by the wood crusher, followed by a dryer to remove the moisture in the wood sawdust, and the dried wood chips can be put into wood pellet machine through the conveyor belt. The wood sawdust are pressed into wood pellets, then cooled by an air dryer, and finally packed into bags by a baler to realize the automatic production of the whole process.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Taifeng
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
1250*660*1050 mm
-
Motor Power (Kw):
-
15-160kw
-
Power (kW):
-
15-160kw
-
Weight (KG):
-
650 KG
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
wood sawdust particle machine
-
Raw material:
-
iron
-
Usage:
-
making wood pellets
-
Pellet size:
-
3-16mm
-
Ideal moisture:
-
less than 15%
-
Particle pulverization rate:
-
95%
-
Advantage:
-
High Output
-
Color:
-
costomized
-
Certification:
-
CE Certificate
-
After-sales Service Provided:
-
Provided
Quick Details
-
Pellet Diameter (mm):
-
3 - 16
-
Output (kg/h):
-
150 - 1400 kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Taifeng
-
Voltage:
-
220v or 380v
-
Dimension(L*W*H):
-
1250*660*1050 mm
-
Motor Power (Kw):
-
15-160kw
-
Power (kW):
-
15-160kw
-
Weight (KG):
-
650 KG
-
Marketing Type:
-
Hot Product 2023
-
Name:
-
wood sawdust particle machine
-
Raw material:
-
iron
-
Usage:
-
making wood pellets
-
Pellet size:
-
3-16mm
-
Ideal moisture:
-
less than 15%
-
Particle pulverization rate:
-
95%
-
Advantage:
-
High Output
-
Color:
-
costomized
-
Certification:
-
CE Certificate
-
After-sales Service Provided:
-
Provided
China factory customized wood pellets pressing household wood sawdust particle machine for making charcoal pellets
Product Description

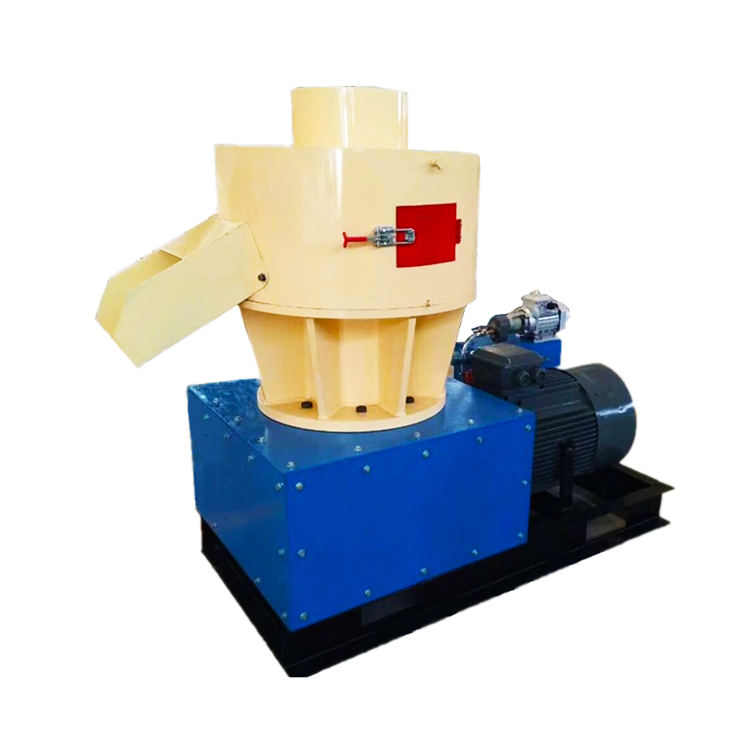

Wood pellet machine is a newtype of wood pellet processing machinery. it can make wood shaving, straw, rice husk, grass, bagasse, peanut shell into pellets. It is powered by an electric motor or a diesel engine to drive the pressure roller to rotate, and press the wood powder out of the die hole. The particles are sent out of the machine through the throwing disc, and the length of the particles is controlled by the blade. after the wood sawdust is made into pellets, it has high density and stability, which is conducive to long-distance transportation and storage.
|
Model
|
Power
|
Capacity(kg/h)
|
Size(mm)
|
Weight(kg)
|
|
260
|
15
|
300-400
|
1250*660*1050
|
650
|
|
350
|
30
|
500-700
|
1600*800*1450
|
1300
|
|
450
|
55
|
800-1000
|
1750*880*1500
|
2500
|
|
560
|
90
|
1000-1500
|
1900*950*1800
|
4500
|
|
560B
|
132
|
1500-2000
|
Customized
|
5000
|
|
700
|
160
|
2000-2500
|
Customized
|
5800
|
|
800
|
160
|
2500-3500
|
Customized
|
7500
|
wood pellets production line
Shandong Qufu Taifeng Machinery Co., Ltd
Shandong Qufu Taifeng Machinery Co., Ltd. was established in 2012, is a manufacturer and exporter specializing in the design,development and production of various poultry products, forestry, agricultural planting and human food equipment, the company has been established for 10 years, we focus on high quality .We never relax our high requirements for product research and development, from the production line to a screw. We take every customer seriously and ensure that customers have a good experience in use.With our high quality products and excellent customer service, our global sales network covers more than 40 countries in Europe, North/South America, Middle East and Asia. We will continue to strive to meet customer expectations and deliver high-quality products in a timely manner.
After Sales Service
1. Offer the professional engineer assist you to use the machine.
2. Offer technical support and professional engineer help you solve problems while using it.
3.Quality warranty for one year. Free repair for quality problem during one year. Spare parts only charge cost price after warranty.
1、Are you manufacturer or trade company?
We are the professional manufacture, and have own export office and we have over 20 years experience in this field.
2、How does your factory do regarding quality control?
Quality is priority, all product have to pass Strict inspection before sale.
3、How about your after service?
We will provide one year waranty, you can feel free to contact us when you have any question about our machine. One year quality guarantee, during one year if you need any spare parts, we will send you for free!
4、How long can you ship?
We will ship within 3-13days after receive your payment. After received the advance payment. we will ship within 5 days when in stock .,and we will ship within 20 days when Out of stock.
5、What's the payment term your company accept?
By T/T100%，Irrevocable.
