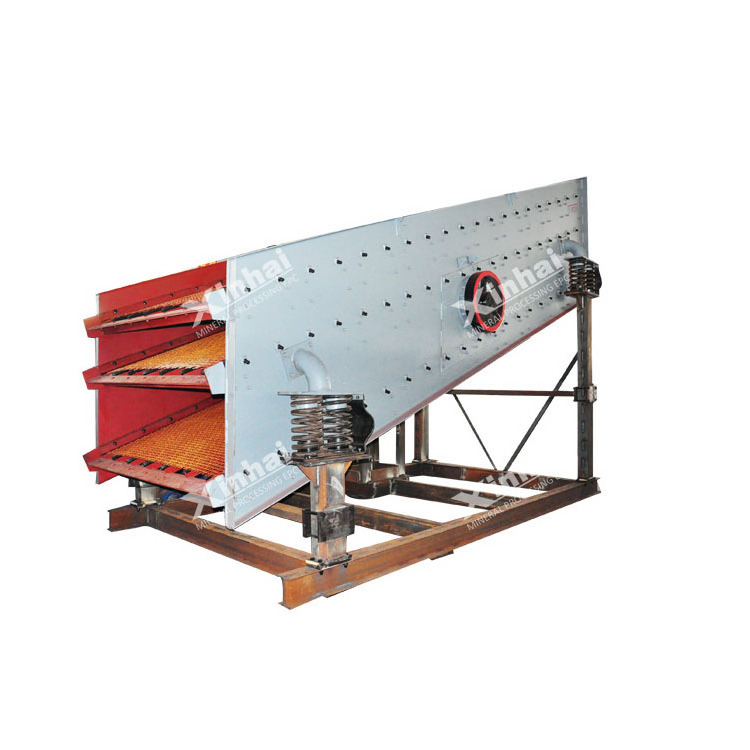

[Introduction]:A kind of advanced vibrating screen with circular motion
[ Capacity ]:80~1700t/h
[Improvement]:Ring groove rivets connection, plate type screen box, advanced structure, strong and durable Vibration exciter with eccentric shaft and eccentric block, high screening efficiency, large capacity
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
xinhai
-
Voltage:
-
220v~390v
-
Dimension(L*W*H):
-
4564*3255*2369
-
Weight:
-
2680kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Keyword:
-
Rotary Vibrating Separator
-
Usage:
-
mining Screening
-
Item:
-
mining Vibrating Screen
-
Name:
-
Mining circular Vibrating Screen
-
Product name:
-
Vibrating Screen
-
Material:
-
Carbon Steel
-
Layer(s):
-
1-3 Layers
-
Mesh size:
-
6-100mm
-
Capacity:
-
5-150t/h
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Voltage:
-
220v~390v
-
Dimension(L*W*H):
-
4564*3255*2369
-
Weight:
-
2680kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Keyword:
-
Rotary Vibrating Separator
-
Usage:
-
mining Screening
-
Item:
-
mining Vibrating Screen
-
Name:
-
Mining circular Vibrating Screen
-
Product name:
-
Vibrating Screen
-
Material:
-
Carbon Steel
-
Layer(s):
-
1-3 Layers
-
Mesh size:
-
6-100mm
-
Capacity:
-
5-150t/h
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008
Product Description
China Factory Iron Round Vibrating Screen , Vibration Screening / Screener
Advantages
Screen mesh of Xinhai round vibrating screen is made of wear-resistant rubber with long service life;
High strength of Xinhai round vibrating screen frame;
Large clearance bearings operating with low temperature lift;
Large capacity, strong versatility of components and convenient repair.
Product Structure
Vibrating Screen
Round vibrating screen adopts an eccentric shaft vibration exciter and eccentric block to adjust amplitude. The vibrator installed on the sideboard of the screen box forces screen box to vibrate by the driving of motor. The sideboard of the vibrating screen is made of high-quality steel plate. Connect sideboards, beams, and the exciter base by high strength bolts or ring groove rivet. Vibrating screen adopts seat installation, and screen angle can be adjusted by changing the height of spring support.
The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.
The motor of round vibrating screen are installed on the right side of screen box, and can also be installed on the left side of screen box. If no special requirements, the motor is installed on the right side.
Technical Parameters
|
Model
|
Screen Surface
|
|
|
Max. Feed Size
|
Capacity (t/h)
|
Motor
|
|
Weight (kg)
|
|||
|
|
Area (m2)
|
Dip Angle (° )
|
Mesh Size (mm)
|
(mm)
|
|
Model
|
Power (kW)
|
|
|||
|
YA1236
|
4.3
|
20
|
6~50
|
200
|
80~240
|
Y160M-4
|
11
|
4905
|
|||
|
2YA1236
|
|
|
|
|
80~240
|
Y160M-4
|
|
5311
|
|||
|
YA1530
|
4.5
|
|
|
|
80~240
|
Y160M-4
|
|
4675
|
|||
|
YA1536
|
5.4
|
|
|
|
100~350
|
Y160M-4
|
|
5137
|
|||
|
2YA1536
|
|
400
|
|
|
100~350
|
Y160L-4
|
15
|
5624
|
|||
|
YAH1536
|
|
|
30~150
|
|
160~650
|
Y160M-4
|
11
|
5621
|
|||
|
2YAH1536
|
|
|
30~150;6~50
|
|
160~650
|
Y160L-4
|
15
|
6045
|
|||
|
YA1542
|
6.5
|
|
6~50
|
200
|
110~385
|
Y160M-4
|
11
|
5515
|
|||
|
2YA1542
|
|
6~50
|
|
|
110~385
|
Y160L-4
|
15
|
6098
|
|||
|
YA1548
|
7.2
|
|
6~50
|
|
120~420
|
Y160L-4
|
|
5918
|
|||
|
2YA1548
|
|
6~50
|
|
120~420
|
|
Y160L-4
|
6321
|
|
|||
|
YAH1548
|
7.2
|
|
30~150
|
400
|
200~780
|
Y160L-4
|
|
6842
|
|||
|
2YAH1548
|
7.2
|
|
30~150; 6~50
|
|
200~780
|
Y160L-4
|
7404
|
|
|||
|
YA1836
|
6.5
|
|
30~150
|
200
|
140~220
|
Y160M-4
|
11
|
5205
|
|||
|
2YA1836
|
6.5
|
|
30~150
|
|
140~220
|
Y160L-4
|
15
|
5946
|
|||
|
YAH1836
|
6.5
|
|
30~150
|
400
|
220~910
|
Y160M-4
|
11
|
5900
|
|||
|
2YAH1836
|
6.5
|
|
30~150;6~50
|
|
220~910
|
Y160L-4
|
15
|
6353
|
|||
|
YA1842
|
7.6
|
|
6~150
|
200
|
140~490
|
Y160L-4
|
15
|
5829
|
|||
|
2YA1842
|
7.6
|
|
6 ~150
|
|
140~490
|
Y160L-4
|
15
|
6437
|
|||
|
YAH1842
|
7.6
|
|
30~150
|
400
|
450~800
|
Y160L-4
|
15
|
6352
|
|||
|
2YAH1842
|
7.6
|
|
30~150; 6~50
|
|
450~800
|
Y160L-4
|
15
|
7037
|
|||
|
YA1848
|
8.6
|
20
|
6~50
|
200
|
150~525
|
Y160L-4
|
15
|
6289
|
|||
|
2YA1848
|
8.6
|
|
|
200
|
150~525
|
Y160L-4
|
15
|
6624
|
|||
|
YAH1848
|
8.6
|
|
30~150
|
400
|
250~1000
|
Y160L-4
|
15
|
7122
|
|||
|
2YAH1848
|
8.6
|
|
30~150; 6~50
|
400
|
250~1000
|
Y160L-4
|
15
|
7740
|
|||
|
YA2148
|
10
|
|
6~50
|
200
|
180~630
|
Y180M-4
|
18.5
|
9033
|
|||
|
2YA2148
|
10
|
|
6~50
|
200
|
180~630
|
Y180L-4
|
22
|
10532
|
|||
|
YAH2148
|
10
|
|
13~200
|
400
|
270~1200
|
Y180M-4
|
18.5
|
10430
|
|||
|
2YAH2148
|
10
|
|
30~150; 6~50
|
400
|
270~1200
|
Y180L-4
|
22
|
11190
|
|||
|
YA2160
|
12.6
|
|
6~80
|
200
|
230~800
|
Y180M-4
|
18.5
|
9926
|
|||
|
2YA2160
|
12.6
|
|
6~50
|
200
|
230~800
|
Y200L-4
|
22
|
11249
|
|||
|
YAH2160
|
12.6
|
|
30~150
|
400
|
350~1500
|
Y200L-4
|
30
|
12490
|
|||
|
2YAH2160
|
12.6
|
|
30~150; 6~50
|
400
|
350~1500
|
Y200L-4
|
30
|
13858
|
|||
|
YA2448
|
11.5
|
|
6~50
|
200
|
200~700
|
Y180 M -4
|
18.5
|
9834
|
|||
|
YAH2448
|
11.5
|
|
6~50
|
400
|
310~1300
|
Y200L-4
|
30
|
11830
|
|||
|
2YAH2448
|
11.5
|
|
30~150； 6~50
|
400
|
310~1300
|
Y200L-4
|
30
|
13012
|
|||
|
YA2460
|
14.4
|
|
6~50
|
200
|
260~780
|
Y200L-4
|
30
|
12240
|
|||
|
2YA2460
|
14.4
|
|
6~50
|
200
|
260~780
|
Y200L-4
|
30
|
13583
|
|||
|
YAH2460
|
14.4
|
|
30~150
|
400
|
400~1700
|
Y200L-4
|
30
|
13096
|
|||
|
2YAH2460
|
14.4
|
|
30~150; 6~50
|
400
|
400~1700
|
Y200L-4
|
30
|
14455
|
|||
