Quick Details
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
3000K/4000K/6000K
-
Working Time (hours):
-
25000
-
Product Weight（kg）:
-
2.2
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
25000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-ALITE
-
Model Number:
-
AP6060
-

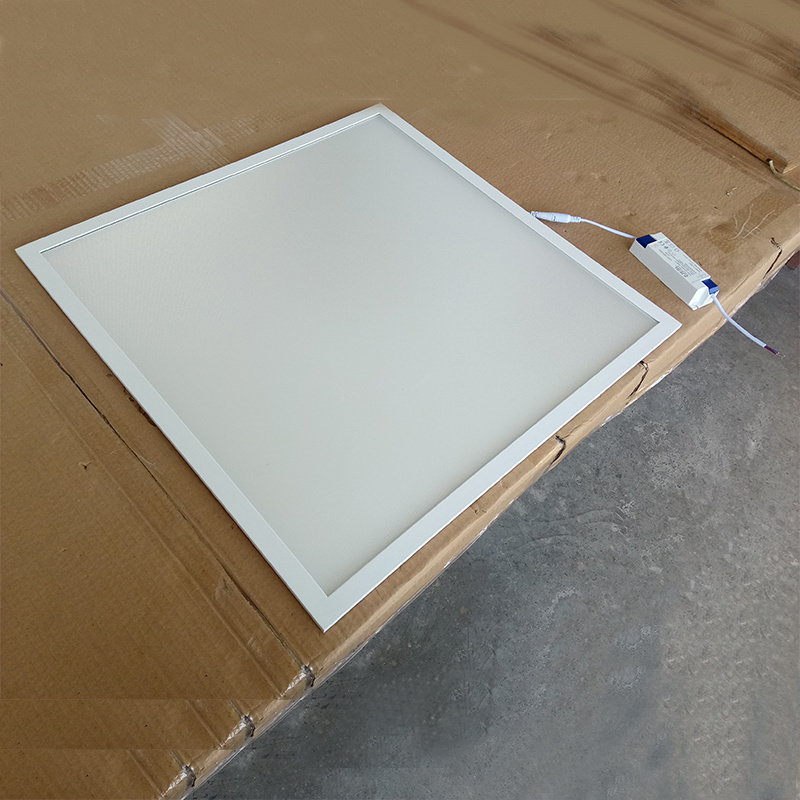

Product name:
-
600x600 Panel Light Led
-
Power:
-
20W/36W/48W/40W/72W
-
Size:
-
595*595mm
-
Cutout:
-
575*575
-
CCT:
-
2700-6500K
-
Angulo de luz:
-
120
-
Certification:
-
CE,ROHS,CB,BV,EMC,COC
-
PF:
-
>0.5/>0.9
-
Warranty:
-
1 Year/2 years/3 years/5 years
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80-100LM/W
-
Application:
-
Indoor, Office,Living Room,Kitchen,School,Hospital,Factory
-
Lamp Body Material:
-
Aluminum
-
Warranty(Year):
-
2-Year
-
Color Temperature(CCT):
-
3000K/4000K/6000K
-
Working Time (hours):
-
25000
-
Product Weight（kg）:
-
2.2
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
25000
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-ALITE
-
Model Number:
-
AP6060
-
Product name:
-
600x600 Panel Light Led
-
Power:
-
20W/36W/48W/40W/72W
-
Size:
-
595*595mm
-
Cutout:
-
575*575
-
CCT:
-
2700-6500K
-
Angulo de luz:
-
120
-
Certification:
-
CE,ROHS,CB,BV,EMC,COC
-
PF:
-
>0.5/>0.9
-
Warranty:
-
1 Year/2 years/3 years/5 years
Specification
Project Integrated Indoor Lighting Price 300*300 600*1200 60*60cm Flat Wall Led Panel Light
|
Model
|
AP3030/AP3060/AP4545/AP30120/AP6060/AP60120
|
|
Power
|
20W/24W/30W/36W/40W/48W/50W/60W/72W/75W
|
|
Votage
|
AC85-265V
|
|
Material
|
Aluminum+Iron
|
|
Size
|
295*295MM/295*1195MM/595*595MM/600*600MM/595*1195MM
|
|
Ra
|
>80 or >90
|
|
LM
|
>100LM/W
|
|
PF
|
>0.5 or >0.9 FREE FLICKER
|
|
Color Temperature
|
3000K/4000K/6000K
|
|
Certificate
|
CE ROHS CB
|
|
Service Life
|
50000hrs
|
|
Warranty
|
2/3/5 Years
|
|
Dimmable
|
Yes
|
|
UGR
|
<19
|
Product Details
Installation Process
Applications
300*300MM KITCHEN
600*600MM BATHROOM
300*600/600*600MM OFFICE
600*600/300*1200/600*1200MM WORK SHOP
1.Suspended to the ceiling:
1) Mount the base on the back of the panel light
2) Use the hanging wire,through the hole in the base
3) Use the hanging wire,through the hole ing the other base
4) Fixing the base and ceiling with screws
2.Surface Mounted
1) Install three sheet metal tank
2) Put the panel light in,make the panel light accordance with the metal tank
3) Installation of fourth pieces of sheet metal tank
3.Embedded with clips(1)
1) Remove the false ceiling
2) Take out the ceiling flat panel light
3) Through the connector link power
4) Put the panel light in the ceiling,installation effects
4.Embedded with clips(2)
1) Fix the clips on the panel light
2) Put the light in the ceiling,use the clips to fix the light,and link power
3) Installarion effects
