Quick Details
-
Loading ability:
-
80 m3/h
-
Traveling speed:
-
0.37 / 0.75
-
Speed of scraper chain:
-
26 m/min
-
Scraper chain:
-
Single chain single motor
-
Adaptive tunnel slope:
-
0°
-
Min. turning radius:
-
≥12 m
-
Max. working pressure:
-
20 Mpa
-
Distance bewteen bearings:
-
1111 mm
-
Clearance from track:
-
≥ 27 mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JN
-
Weight:
-
6800 kg
-
Loading ability:
-
80 m3/h
-
Traveling speed:
-
0.37 / 0.75
-
Speed of scraper chain:
-
26 m/min
-
Scraper chain:
-
Single chain single motor
-
Adaptive tunnel slope:
-
0°
-
Min. turning radius:
-
≥12 m
-
Max. working pressure:
-
20 Mpa
-
Distance bewteen bearings:
-
1111 mm
-
Clearance from track:
-
≥ 27 mm

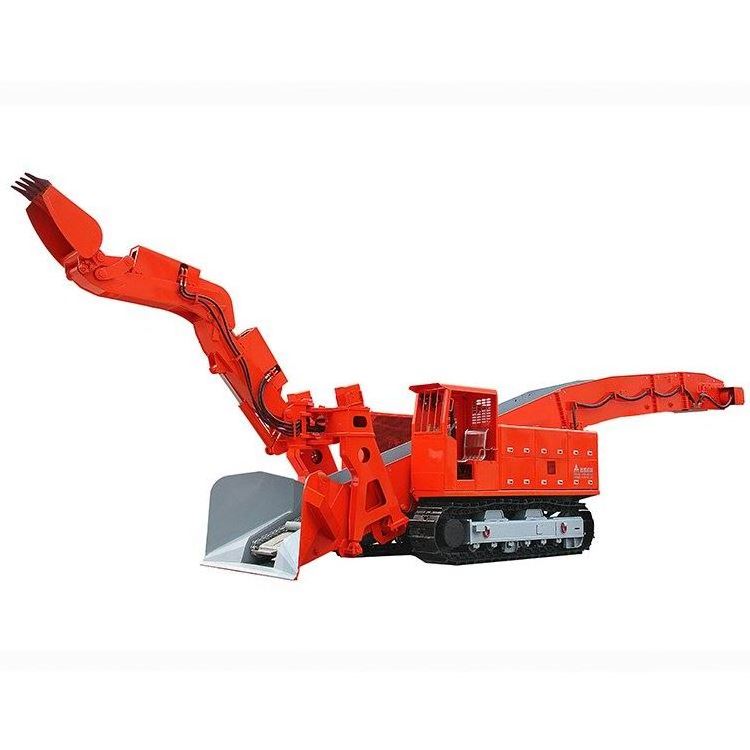

Crawler Mucking Loader For Sale Ore Rock Digging In Tunnel
|
Full hydraulic system powered by electric motor. |
|
Special model for tunnel with track , it can suit different track gauges as custom’s requirement . |
|
The electro-hydraulic drive provides low installation and energy cost, and maintains good air quality. |
|
The dozer blades clean mucking face effectively thus eliminating the need of manual clean up. |
|
The service brake is hydraulic in traveling mechanism. |
|
Dumping height and distance of conveyor can be custom design. |
|
The chassis and conveyor are made of heavy duty plate joint together with continuous welds for max. fatigue strength. |
|
The mucking loader is controlled by hydraulic joysticks. |
|
Double wings’ doors are good for maintaining, also with safety electrical bells and emergency switch. |
|
A |
Digging width |
4800 mm |
|
|
B |
Digging distance |
1840 mm |
|
|
C |
Digging Height |
2400 mm |
|
|
D |
Digging depth |
550 mm |
|
|
F-E |
Dumping height |
1250 mm(Variable)(Variable) |
|
|
G |
Dumping distance |
2050 mm(Variable) |
|
|
|
Adaptive tunnel size |
≥2.2×2.2 m |
|
Functional Parameters |
Main Overall Dimension | |||
|
Weight |
6800 kg |
Steering |
Hydraulic |
|
|
Loading ability |
80 m3/h |
Track gauge |
600 /7 62/ 900 mm |
|
|
Traveling speed |
0.37 / 0.75 |
Conveyor inner width |
480 mm |
|
|
Speed of scraper chain |
26 m/min |
Max. boom angle |
± 55° |
|
|
Scraper chain |
Single chain single motor |
Dimension(Transportation) |
L |
6800 mm |
|
Adaptive tunnel slope |
0° |
W |
1480 mm |
|
|
Min. turning radius |
≥12 m |
H |
1780 mm |
|
|
Max. working pressure |
20 Mpa |
Dimension (Operating) |
L | 8260 mm |
|
Distance bewteen bearings |
1111 mm |
W | 1940 mm | |
|
Clearance from track |
≥ 27 mm |
H | 1855 mm | |
|
General power |
30.75 KW |
|||
