Quick Details
-
Weight:
-
260 kg
-
Production Capacity:
-
4000 ~6000 square meters per year
-
Power:
-
1.5 KW
-
Dimension(L*W*H):
-
800x800x1700mm
-
Product Name:
-
single corner pvc window welding machine
-
Application:
-
Making UPVC Window
-
Machine Type:
-
Automatic
-
Welding Height:
-
20~120mm
-
Welding Width:
-
0-120mm
-
Heating Temperature:
-
250℃ ~260℃
-
Heating Time:
-
25s
-
Cooling Time:
-
25s
-
Welding Angle:
-
90°
-
Place of Origin:
-
Jinan, Shandong
Quick Details
-
Marketing Type:
-
Hot Product 2021
-
Brand Name:
-
BLUETEK
-
Voltage:
-
220V 50Hz
-
Weight:
-
260 kg
-
Production Capacity:
-
4000 ~6000 square meters per year
-
Power:
-
1.5 KW
-
Dimension(L*W*H):
-
800x800x1700mm
-
Product Name:
-
single corner pvc window welding machine
-
Application:
-
Making UPVC Window
-
Machine Type:
-
Automatic
-
Welding Height:
-
20~120mm
-
Welding Width:
-
0-120mm
-
Heating Temperature:
-
250℃ ~260℃
-
Heating Time:
-
25s
-
Cooling Time:
-
25s
-
Welding Angle:
-
90°
-
Place of Origin:
-
Jinan, Shandong

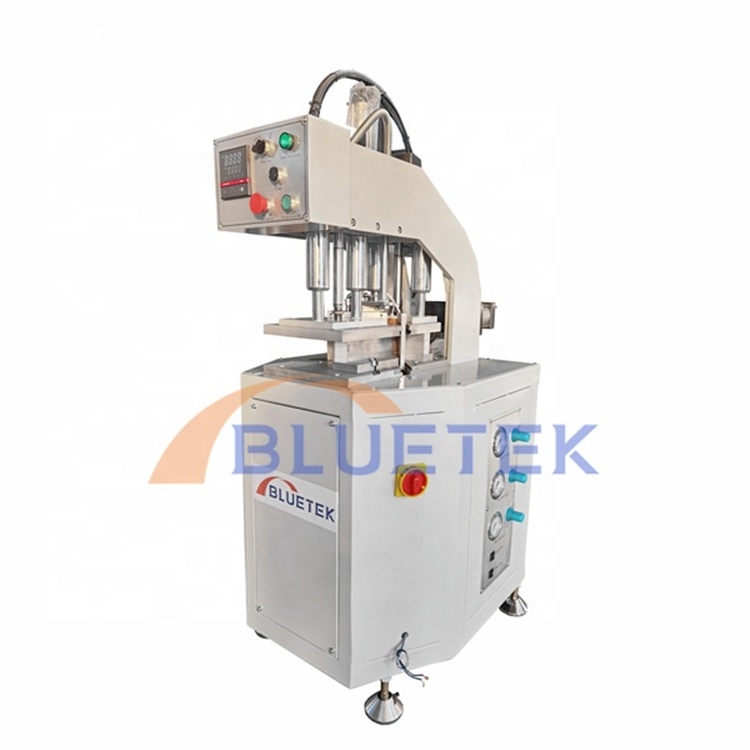

PRODUCT DESCRIPTION
HJ02-120
PVC Window Door Corner Single Head Double Sides Seamless Welding Machine
1.
PVC
window double sides seamless welding machine
is used to weld the 90
°
window angle of plastic doors and windows, and can also weld at any angle between 30
°
~180
°
(need to install auxiliary tools)
2. Seamless Welding for two sides. It has cutting knife to remove welding slag, make seamless welding for colored UPVC and white UPVC.
3. High degree of automation, using PLC to control the processing. After the profile is placed, it is automatically welded and cooled without manual intervention.
4. The top and bottom clamp are both made of solid aluminum plate to ensure the flatness of the window corners during the welding process, and the welding effect is good.
5. Backing plates of
single corner pvc window welding machine
adopts four-layer aluminum plate, which can be adjusted according to the profile to ensure the best welding effect.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Name
|
Single Head PVC window door corner welding machine
|
|
2
|
Model
|
HJ02-120
|
|
3
|
Power Supply
|
220V 50Hz
|
|
4
|
Total Power
|
1.5 KW
|
|
5
|
Air Consumption
|
50L /min
|
|
6
|
Welding Width
|
120mm
|
|
7
|
Welding Height
|
200mm
|
|
8
|
Welding Angle
|
90°
|
|
9
|
Net Weight
|
260 KG
|
|
10
|
Overall Dimension
|
800x800x1700mm
|
DETAILS IMAGES
Control Panel
Buttons are from Schneider brand;
Temperature control table is from WINPARK AK6, which is one of the best quality in China;
Chinese and English language or only English, other languages can be customized.
4 Layers of Aluminium Backing Plates
The combined backing plate has total of 4 layers, solid aluminum, which can be adjusted to achieve the best welding effect.
Cutting Knife for Seamless Welding
There are 8 pieces of knives for upper clamp and lower clamp. Good quality seamless welding.
Control Panel for Air Pressure
It's very easy to adjust clamps air pressure and heating time, cooling time
PACKING AND SHIPPING
Inner packing: waterproof plastic film
Steel wire fixing for
Base
Outer packaging: non-fumigation wooden box
If two layers of machines are loaded, a special shelf is used to fix the machines above.
Reasonable space utilization, each machine will be fixed with steel wire to ensure safe arrival at the destination.
Professional and responsible shipping, air, and railway agency services, providing customers with all import customs clearance documents, reducing the tax burden of customers as much as possible.
