Quick Details
-
Power (kW):
-
11
-
Range of Spindle Speed(r.p.m):
-
22 - 180 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Auris
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1460*1280*1220
-
Weight (KG):
-
2200 KG
-
Product name:
-
Grinding Mill Product
-
Function:
-
Material grinder
-
Color:
-
Clients' Requirement
-
Advantage:
-
High Effieciency
-
MOQ:
-
1 Set
-
After-sales Service Provided:
-
Online Support
Quick Details
-
Output (kg/h):
-
300 - 500 kg/h
-
Feeding Size (mm):
-
1 - 150 mm
-
Output Size (mesh):
-
3 - 25 mesh
-
Power (kW):
-
11
-
Range of Spindle Speed(r.p.m):
-
22 - 180 r.p.m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Auris
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1460*1280*1220
-
Weight (KG):
-
2200 KG
-
Product name:
-
Grinding Mill Product
-
Function:
-
Material grinder
-
Color:
-
Clients' Requirement
-
Advantage:
-
High Effieciency
-
MOQ:
-
1 Set
-
After-sales Service Provided:
-
Online Support
Product Description

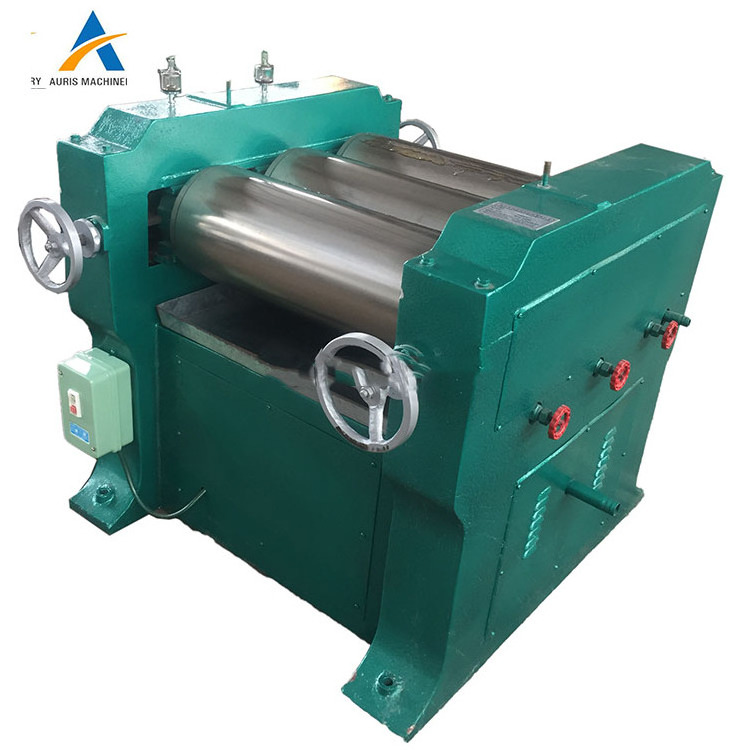

High Quality Three Roller Soap Making Machines For Sale Lipstick Three Roll Milling Machine Mill 3 Roll Mill For Ink Mixing
Structure and working principle:
1.Three-roll mill for short, three-roll mill can be divided into two types: experimental three-roll mill and production three-roll mill.
2.Three-roll grinding is suitable for the manufacture of slurries such as paints, inks, pigments and plastics. The working principle of the three-roll mill: The three-roll mill produces the grinding effect through the mutual extrusion of the surfaces of the three horizontal rollers and friction at different speeds.
3.The three-roll mill is a grinding and dispersing equipment for high-viscosity materials. Mainly used for the research of liquid slurries and paste-like materials such as paints, inks, pigments, plastics, cosmetics, soaps, ceramics, rubber, etc.
Characteristics of
3 Roll Mill For Ink Mixing
:
1.Final fineness can be around 2-10um(measured by the fineness gauge
2.Manually adjust roller clearance,simple and reliable structure
3.Can be heated or cool be cycle hot mater/oil,cooling water
Product Parameters
|
Model
|
power （kw）
|
Roller diameter（mm）
|
Roller length（mm）
|
slow speed（rpm）
|
medium speed（rpm）
|
fast speed（rpm）
|
Weight（Kg)
|
|
AG-65
|
0.75
|
65
|
125
|
26
|
70
|
145
|
85
|
|
AG-100
|
1.5
|
100
|
120
|
40
|
86
|
186
|
200
|
|
AG-120
|
1.5
|
120
|
280
|
26
|
70
|
186
|
450
|
|
AG-150
|
2.2
|
150
|
300
|
34
|
78
|
180
|
550
|
|
AG-260
|
7.5
|
260
|
675
|
22
|
64
|
182
|
2200
|
|
AG-405
|
15
|
405
|
810
|
14
|
42
|
130
|
5200
|
|
AG-405
|
22
|
405
|
1000
|
14
|
42
|
130
|
5800
|
Application
Three roll Mill is an ideal and effective grinding and dispersing equipment for high viscosity product, mainly used in various of paint, ink, pigment, plastic, cosmetic, soap, ceramics, rubber, and other liquid and paste materials grinding.
