Cell Type
|
N-type Mono-crystalline
|
|
No.of Cells
|
144
|
|

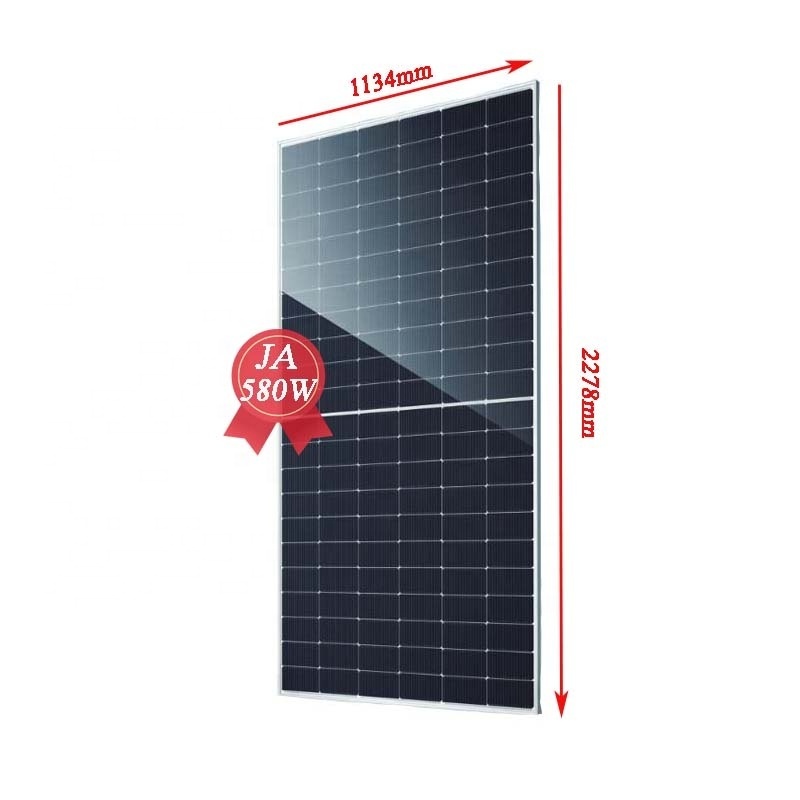

Dimensions
|
2278*1134*30mm
|
|
Weight
|
31.8 kg
|
|
Junction Box
|
IP68, 3diodes
|
|
ELECTRICAL PARAMETERS AT STC
|
|
|
|
|
|
|
||||||
|
TYPE
|
JAM72D40
570MB
|
JAM72D40
575MB
|
JAM72D40
580MB
|
JAM72D40
585MB
|
JAM72D40
590MB
|
JAM72D40
595MB
|
||||||
|
|
570/LB
|
575/MB
|
580/MB
|
585/MB
|
590/MB
|
595/MB
|
||||||
|
Rated Maximum Power(Pmax)[W
|
570
|
575
|
580
|
585
|
590
|
595
|
||||||
|
Open Circuit Voltage(Voc)[V]
|
51.52
|
51.73
|
51.95
|
52.16
|
52.37
|
52.58
|
||||||
|
Maximum Power Voltage(Vmp)[V]
|
43.62
|
43.82
|
44.02
|
44.22
|
44.43
|
44.64
|
||||||
|
Short Circuit Current(Isc)[A]
|
13.74
|
13.79
|
13.84
|
13.89
|
13.94
|
13.99
|
||||||
|
Maximum Power Current(Imp)[A]
|
13.07
|
13.12
|
13.17
|
13.23
|
13.28
|
13.33
|
||||||
|
Module Efficiency [%]
|
21.1
|
22.3
|
22.5
|
22.6
|
22.8
|
23.0
|
||||||
|
Power Tolerance
|
0~+3%
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Isc(a_Isc
|
+0.046%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient ofVoc(β_Voc)
|
-0.260%/℃
|
|
|
|
|
|
||||||
|
Temperature Coefficient of Pmax(y_Pmp)
|
-0.290%/℃
|
|
|
|
|
|
||||||
|
STC
|
lrradiance 1000W/m²,cell temperature 25℃,AM1.5G
|
|
|
|
|
|
||||||
|
ELECTRICAL PARAMETERS AT NOCT
|
|
|
|
|
|
|
||||||
|
Rated Max Power(Pmax) [W]
|
616
|
621
|
626
|
632
|
637
|
643
|
||||||
|
Open Circuit Voltage(Voc) [V]
|
51.52
|
51.73
|
51.95
|
52.16
|
52.37
|
52.58
|
||||||
|
Max Power Voltage(Vmp) [V]
|
43.62
|
43.82
|
44.02
|
44.22
|
44.43
|
44.64
|
||||||
|
Short Circuit Current(Isc) [A]
|
14.84
|
14.89
|
14.95
|
15.00
|
15.06
|
15.11
|
||||||
|
Max Power Current(Imp) [A]
|
14.11
|
14.17
|
14.23
|
14.29
|
14.34
|
14.40
|
||||||
|
NOCT
|
Irradiance 800W/m², ambient temperature 20℃,wind speed 1m/s, AM1.5G
|
|
|
|
|
|
||||||
