Quick Details
-
Model Number:
-
LF31
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
3000pa
-
Terminals:
-
6.3mm or4.8 copper alloy
-
Media:
-
air, products of combustion or natural gas
-
Color:
-
Black
-
Contact Arrangement:
-
SPST OR SPDT
-
Proof Pressure:
-
100in W.C. (3.6psi)
-
Certification:
-
UL, CE, ccc
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEFOO
-
Model Number:
-
LF31
-
Max. Current:
-
5A
-
Max. Working Pressure:
-
3000pa
-
Terminals:
-
6.3mm or4.8 copper alloy
-
Media:
-
air, products of combustion or natural gas
-
Color:
-
Black
-
Contact Arrangement:
-
SPST OR SPDT
-
Proof Pressure:
-
100in W.C. (3.6psi)
-
Certification:
-
UL, CE, ccc
LF31 LEFOO Air Differential Pressure Switch

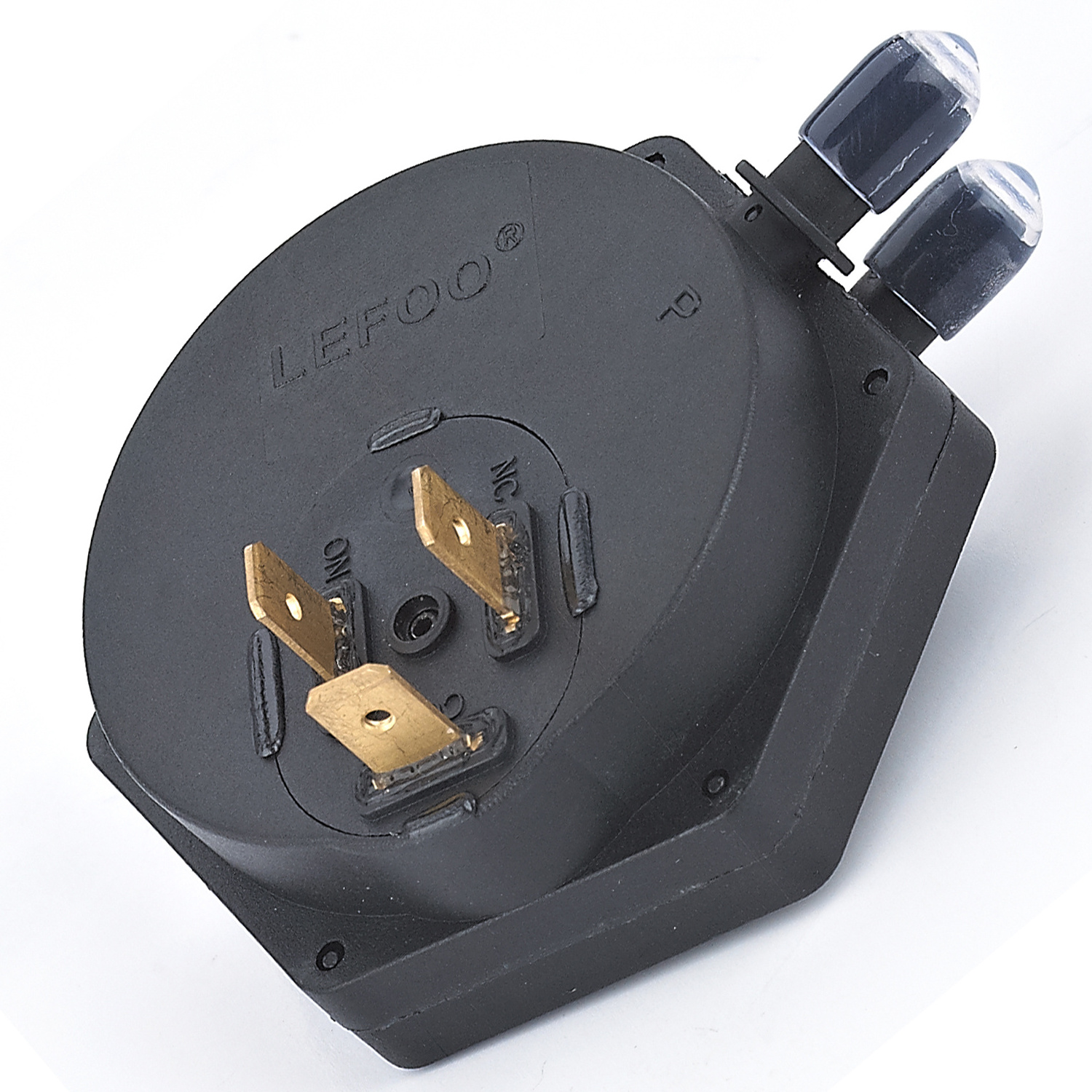

1. Product Pictures:
2. Product Specifications:
LF31 differential pressure switches offer pressure, vacuum and differential models capable of sensing very low set points, and switching current up to 5A resistive, 2.5A inductive. Designed for use in the HVAC industry, where reliable air proving is critical to both performance and customer safety, the LF31 is a favorite with leading manufacturers of gas-fired warm air furnaces and water heaters.
|
Model
|
LF31
|
|
Media
|
Air , products of combustion, L.P. or natural gas
|
|
Operating Pressure Range
|
0.15" W.C. to 34" W.C.
|
|
Proof Pressure
|
100" W.C. (3.6PSI)
|
|
Operating Temperature
|
-40° C to 85° C
|
|
Contact Arrangement
|
SPST or SPDT
|
|
Electric Rating
|
Resistance
:
Initial: <50 milliohms
Current: 100mA minimum, 5A resistive maximum
(fine silver alloy contacts);
15mA minimum, 0.5A resistive maximum
(gold-platinum-silver alloy contacts);
|
|
Terminals
|
0.032" x 0.250" copper alloy
|
| Connection |
Inlet 0.25" for tube connection
|
| Mounting Bracket | all kinds of mounting bracket is available on request |
3. Product Dimensions(mm) :
4. Production Lines:
5. Patens:
6. Quality Control:
7. Why choose us?
25 patents
45 products were certified with UL,CSA,VDE,CCC and CE
50 engineers teamed for R&D
Coorperation experience with member in fortune global 500
8. LEFOO Exhibitions:
2019. 3 Acrex India
2019. 1 Ahr Expo
2018. 6 Aquatech Shanghai
2018. 4 Canton Fair
2018. 4 China Refrigeration show
2018.3 MCE Milano
2018.1 AHR Chicago
9. Packing and Shipping:
If you are willing to know more
details, pls contact me freely!
