Quick Details
-
Model Number:
-
IQ100-210
-
Place of Origin:
-
SHANDONG
-
Horsepower:
-
7hp
-
Outlet Size:
-
100mm
-
Product name:
-
Centrifugal water pump
-
Usage:
-
Agriculture Irrigation
-
Material:
-
Cast Iron
-
MOQ:
-
1 piece
-
Feature:
-
High Flow
-
Flow rate:
-
180cbm/h
-
Color:
-
brown
-
Standard or Nonstandard:
-
standard
-
Head:
-
15m
-
Lift:
-
15m
Quick Details
-
Application:
-
Irrigation and Agriculture
-
Pressure:
-
Other
-
Warranty:
-
1 year
-
Model Number:
-
IQ100-210
-
Place of Origin:
-
SHANDONG
-
Horsepower:
-
7hp
-
Outlet Size:
-
100mm
-
Product name:
-
Centrifugal water pump
-
Usage:
-
Agriculture Irrigation
-
Material:
-
Cast Iron
-
MOQ:
-
1 piece
-
Feature:
-
High Flow
-
Flow rate:
-
180cbm/h
-
Color:
-
brown
-
Standard or Nonstandard:
-
standard
-
Head:
-
15m
-
Lift:
-
15m

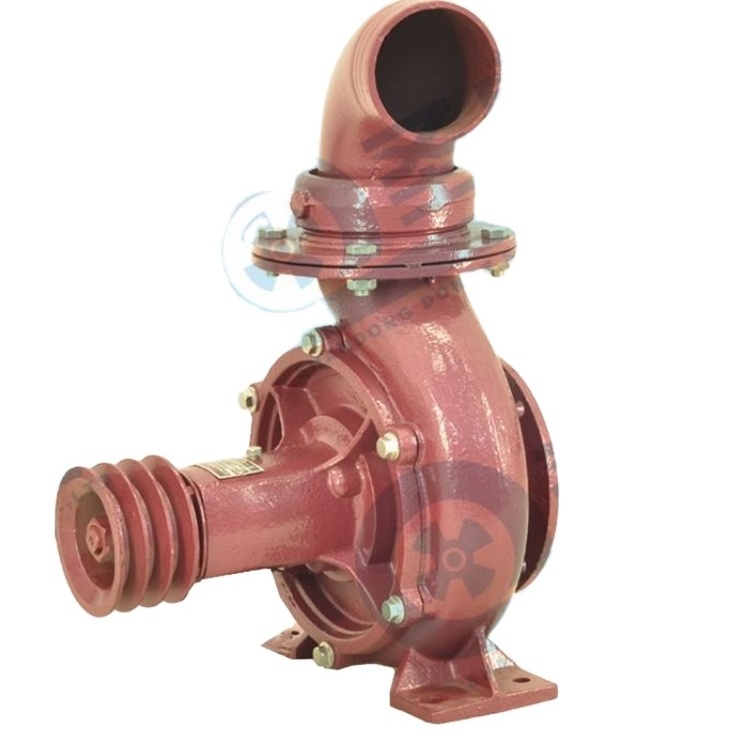

Popular home farm irrigation 4 inch centrifugal pump
Product Description
1.
Popular home farm irrigation 4 inch centrifugal pump
: 2 sets of sealed, balanced impeller, high-speed bearings.Mechanical seal, to be exact, oil cup seal.
2. 4 inch irrigation agriculture centrifugal water pump: pump casing, impeller, pump shaft, bearing, seal, elbow, etc.
3. Power: electric motor or diesel engine, using direct connection, coupling, triangle belt connection.
Specification
|
Modle
|
Flow (m³/h)
|
Head Lift (m)
|
Suction (m)
|
Power (kw)
|
Speed (r/min)
|
|
Inlet/Outlet(mm)
|
N.W (KG)
|
|
|
IQ100-210
|
150-280
|
8-18
|
8-15
|
7.5-11
|
1450
|
|
150/150
|
35
|
|
Product Introduction
Pump Casing
Adopt cast iron pump casing, good heat dissipation effect, durable, improve the running ability of the pump.
Impeller
Cast iron impeller, using advanced hydraulic design, anti-corrosion and wear-resistant, durable and long life.
Pump Shaft
The main function is to transfer power, support the impeller to maintain normal operation in the working position. The shaft is equipped with bearings, axial seals and other parts.
