Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-

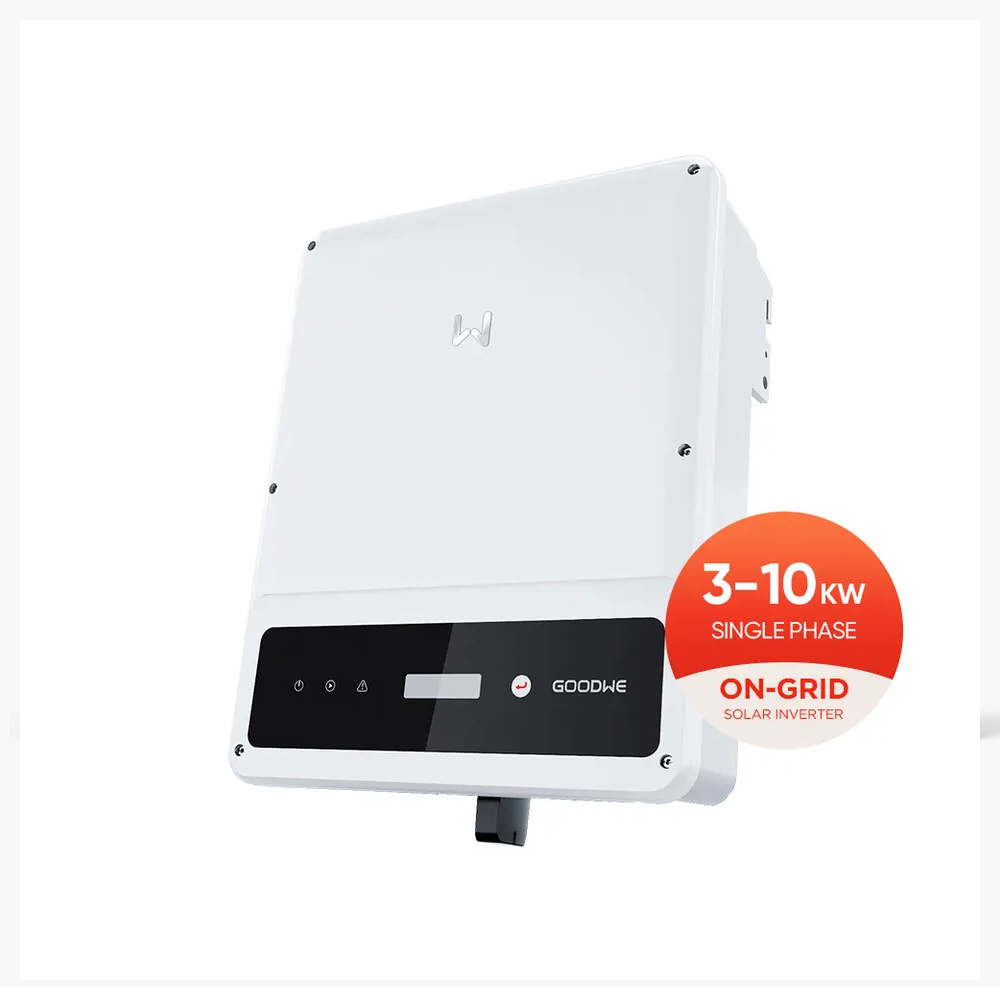

Goodwe
-
Model Number:
-
DNS Series 3~6KW;MS Series 5~10KW
-
Input Voltage:
-
80-550 V
-
Output Voltage:
-
220 / 230V
-
Output Current:
-
13.6-27.3A
-
Output Frequency:
-
50/60Hz
-
Size:
-
354/ 433 /147
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years
-
Weight:
-
13-13.5kg
-
PV Input Power:
-
3KW-6KW
-
MPPT Voltage Range:
-
80-550 V
-
Max. Input Current per MPPT (A):
-
11-13A
-
Number of MPP Trackers:
-
2
-
Number of Strings per MPPT:
-
1
-
Max. Total Harmonic Distortion:
-
<3%
-
DC Surge Protection:
-
Type III
-
AC Surge Protection:
-
Type III
-
User Interface:
-
LED, LCD (Optional), WLAN + APP
-
Communication:
-
WiFi, LAN or RS485 (Optional)
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
97.8%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Goodwe
-
Model Number:
-
DNS Series 3~6KW;MS Series 5~10KW
-
Input Voltage:
-
80-550 V
-
Output Voltage:
-
220 / 230V
-
Output Current:
-
13.6-27.3A
-
Output Frequency:
-
50/60Hz
-
Size:
-
354/ 433 /147
-
Certificate:
-
CE/IEC
-
Warranty:
-
10 Years
-
Weight:
-
13-13.5kg
-
PV Input Power:
-
3KW-6KW
-
MPPT Voltage Range:
-
80-550 V
-
Max. Input Current per MPPT (A):
-
11-13A
-
Number of MPP Trackers:
-
2
-
Number of Strings per MPPT:
-
1
-
Max. Total Harmonic Distortion:
-
<3%
-
DC Surge Protection:
-
Type III
-
AC Surge Protection:
-
Type III
-
User Interface:
-
LED, LCD (Optional), WLAN + APP
-
Communication:
-
WiFi, LAN or RS485 (Optional)
Product Description
|
Technical Data
|
GW3000/3600/4200/5000/6000D-NS
GW3000/3600/4200/5000/6000T-DS
|
|
|
|
|
|
|
|
|
|||||||||
|
Input
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Input Voltage (V)
|
600
|
|
|
|
|
|
|
|
|
|||||||||
|
MPPT Operating Voltage Range (V)
|
80~550
|
|
|
|
|
|
|
|
|
|||||||||
|
Start-up Voltage (V)
|
80
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Input Voltage (V)
|
360
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Input Current per MPPT (A)
|
11
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Short Circuit Current per MPPT (A)
|
13.8
|
|
|
|
|
|
|
|
|
|||||||||
|
Number of MPP Trackers
|
2
|
|
|
|
|
|
|
|
|
|||||||||
|
Number of Strings per MPPT
|
1
|
|
|
|
|
|
|
|
|
|||||||||
|
Output
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal Output Power (W)
|
3000
|
3680
|
4200
|
5000
|
6000
|
3000
|
3680
|
4200
|
5000
|
|||||||||
|
Nominal Output Apparent Power (VA)
|
3000
|
3680
|
4200
|
5000
|
6000
|
3000
|
3680
|
4200
|
5000
|
|||||||||
|
Max. AC Active Power (W)
|
3000
|
3680
|
4200
|
5000
|
6000
|
3000
|
3680
|
4200
|
5000
|
|||||||||
|
Max. AC Apparent Power (VA)
|
3000
|
3680
|
4200
|
5000
|
6000
|
3000
|
3680
|
4200
|
5000
|
|||||||||
|
Nominal Output Voltage (V)
|
220 / 230
|
|
|
|
|
|
|
|
|
|||||||||
|
Nominal AC Grid Frequency (Hz)
|
50 / 60
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Output Current (A)
|
13.6
|
|
|
|
|
|
|
|
|
|||||||||
|
Power Factor
|
~1 (Adjustable from 0.8 leading to 0.8 lagging)
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Total Harmonic Distortion
|
<3%
|
|
|
|
|
|
|
|
|
|||||||||
|
Efficiency
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Efficiency
|
97.8%
|
|
|
|
|
|
|
|
|
|||||||||
|
European Efficiency
|
97.5%
|
|
|
|
|
|
|
|
|
|||||||||
|
Protection
|
|
|
|
|
|
|
|
|
|
|||||||||
|
PV String Current Monitoring
|
-
|
|
|
|
|
Integrated
|
|
|
|
|||||||||
|
PV Insulation Resistance Detection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
Residual Current Monitoring
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
PV Reverse Polarity Protection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
Anti-islanding Protection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
AC Overcurrent Protection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
AC Short Circuit Protection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
AC Overvoltage Protection
|
Integrated
|
|
|
|
|
|
|
|
|
|||||||||
|
DC Switch
|
Optional
|
|
|
|
|
|
|
|
|
|||||||||
|
DC Surge Protection
|
Type III
|
|
|
|
|
Type III (Type II Optional)
|
|
|
|
|||||||||
|
AC Surge Protection
|
Type III
|
|
|
|
|
|
|
|
|
|||||||||
|
AFCI
|
Optional
|
|
|
|
|
Optional
|
|
|
|
|||||||||
|
Emergency Power Off
|
Optional
|
|
|
|
|
|
|
|
|
|||||||||
|
Remote Shutdown
|
Optional
|
|
|
|
|
|
|
|
|
|||||||||
|
General Data
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Operating Temperature Range (ºC)
|
-25 ~ +60
|
|
|
|
|
|
|
|
|
|||||||||
|
Relative Humidity
|
0 ~ 100%
|
|
|
|
|
|
|
|
|
|||||||||
|
Max. Operating Altitude (m)*4
|
4000
|
|
|
|
|
|
|
|
|
|||||||||
|
Cooling Method
|
Natural Convection
|
|
|
|
|
|
|
|
|
|||||||||
|
User Interface
|
LED, LCD, WLAN + APP
|
|
|
|
|
|
|
|
|
|||||||||
|
Communication
|
WiFi, RS485 or 4G or 2G or LAN (Optional)
|
|
|
|
|
|
|
|
|
|||||||||
|
Weight (kg)
|
13.0
|
13.0
|
13.0
|
13.0
|
13.5
|
13.0
|
13.0
|
13.0
|
13.0
|
|||||||||
|
Dimension (W × H × D mm)
|
354 × 433 × 147
|
|
|
|
|
|
|
|
|
|||||||||
|
Noise Emission (dB)
|
<25
|
<25
|
<25
|
<25
|
<50
|
<25
|
<25
|
<25
|
<25
|
|||||||||
|
Topology
|
Non-isolated
|
|
|
|
|
|
|
|
|
|||||||||
|
Self-consumption at Night (W)
|
<1
|
|
|
|
|
|
|
|
|
|||||||||
|
Ingress Protection Rating
|
IP65
|
|
|
|
|
|
|
|
|
|||||||||
|
DC Connector
|
MC4
|
|
|
|
|
|
|
|
|
|||||||||
|
AC Connector
|
Plug and play connector
|
|
|
|
|
|
|
|
|
|||||||||
|
Technical Data
|
GW5000-MS
|
GW6000-MS
|
GW7000-MS
|
GW8500-MS
|
GW10K-MS
|
|||||
|
Input
|
|
|
|
|
|
|||||
|
Max.Input Voltage (V)
|
600
|
600
|
600
|
600
|
600
|
|||||
|
MPPT Operating Voltage Range (V)
|
80 ~ 550
|
80 ~ 550
|
80 ~ 550
|
80 ~ 550
|
80 ~ 550
|
|||||
|
Start-up Voltage (V)
|
80
|
80
|
80
|
80
|
80
|
|||||
|
Nominal Input Voltage (V)
|
360
|
360
|
360
|
360
|
360
|
|||||
|
Max. Input Current per MPPT (A)
|
16
|
16
|
16
|
16
|
16
|
|||||
|
Max. Short Circuit Current per MPPT (A)
|
20
|
20
|
20
|
20
|
20
|
|||||
|
Number of MPP Trackers
|
3
|
3
|
3
|
3
|
3
|
|||||
|
Number of Strings per MPPT
|
1
|
1
|
1
|
1
|
1
|
|||||
|
Output
|
|
|
|
|
|
|||||
|
Nominal Output Power (W)
|
5000
|
6000
|
7000
|
8500
|
10000
|
|||||
|
Nominal Output Apparent Power (VA)
|
5000
|
6000
|
7000
|
8500
|
10000
|
|||||
|
Max. AC Active Power (W)*1
|
5500
|
6600
|
7700
|
9350
|
10000
|
|||||
|
Max. AC Apparent Power (VA)*2
|
5500
|
6600
|
7700
|
9350
|
10000
|
|||||
|
Nominal Output Voltage (V)
|
220 / 230 / 240
|
220 / 230 / 240
|
220 / 230 / 240
|
220 / 230 / 240
|
220 / 230 / 240
|
|||||
|
Nominal AC Grid Frequency (Hz)
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
50 / 60
|
|||||
|
Max. Output Current (A)
|
25.0
|
30.0
|
35.0
|
42.5
|
45.5
|
|||||
|
Power Factor
|
~1 (Adjustable from 0.8 leading to 0.8 lagging)
|
|
|
|
|
|||||
|
Max. Total Harmonic Distortion
|
<3%
|
<3%
|
<3%
|
<3%
|
<3%
|
|||||
|
Efficiency
|
|
|
|
|
|
|||||
|
Max. Efficiency
|
97.7%
|
97.7%
|
97.7%
|
97.7%
|
97.7%
|
|||||
|
European Efficiency
|
97.3%
|
97.3%
|
97.3%
|
97.3%
|
97.3%
|
|||||
|
Protection
|
|
|
|
|
|
|||||
|
PV Insulation Resistance Detection
|
Integrated
|
|
|
|
|
|||||
|
Residual Current Monitoring
|
Integrated
|
|
|
|
|
|||||
|
PV Reverse Polarity Protection
|
Integrated
|
|
|
|
|
|||||
|
Anti-islanding Protection
|
Integrated
|
|
|
|
|
|||||
|
AC Overcurrent Protection
|
Integrated
|
|
|
|
|
|||||
|
AC Short Circuit Protection
|
Integrated
|
|
|
|
|
|||||
|
AC Overvoltage Protection
|
Integrated
|
|
|
|
|
|||||
|
DC Switch
|
Integrated
|
|
|
|
|
|||||
|
DC Surge Protection
|
Type II
|
|
|
|
|
|||||
|
AC Surge Protection
|
Type III (Type II Optional)
|
|
|
|
|
|||||
|
AFCI
|
Optional
|
|
|
|
|
|||||
|
Remote Shutdown
|
Optional
|
|
|
|
|
|||||
|
General Data
|
|
|
|
|
|
|||||
|
Operating Temperature Range (°C)
|
-25 ~ +60
|
-25 ~ +60
|
-25 ~ +60
|
-25 ~ +60
|
-25 ~ +60
|
|||||
|
Relative Humidity
|
0 ~ 100%
|
0 ~ 100%
|
0 ~ 100%
|
0 ~ 100%
|
0 ~ 100%
|
|||||
|
Max. Operating Altitude (m)*3
|
4000
|
4000
|
4000
|
4000
|
4000
|
|||||
|
Cooling Method
|
Natural Convection
|
Natural Convection
|
Natural Convection
|
Natural Convection
|
Natural Convection
|
|||||
|
User Interface
|
LED, LCD
|
LED, LCD
|
LED, LCD
|
LED, LCD
|
LED, LCD
|
|||||
|
Communication
|
WiFi, RS485 or LAN (Optional)
|
|
|
|
|
|||||
|
Communication Protocols
|
Modbus-RTU (SunSpec Compliant)
|
|
|
|
|
|||||
|
Weight (kg)
|
22.5
|
22.5
|
22.5
|
22.5
|
22.5
|
|||||
|
Dimension (W × H × D mm)
|
415 × 511 × 175
|
415 × 511 × 175
|
415 × 511 × 175
|
415 × 511 × 175
|
415 × 511 × 175
|
|||||
|
Topology
|
Non-isolated
|
Non-isolated
|
Non-isolated
|
Non-isolated
|
Non-isolated
|
|||||
|
Self-consumption at Night (W)
|
<1
|
<1
|
<1
|
<1
|
<1
|
|||||
|
Ingress Protection Rating
|
IP65
|
IP65
|
IP65
|
IP65
|
IP65
|
|||||
|
DC Connector
|
MC4 (4 ~ 6mm²)
|
MC4 (4 ~ 6mm²)
|
MC4 (4 ~ 6mm²)
|
MC4 (4 ~ 6mm²)
|
MC4 (4 ~ 6mm²)
|
|||||
