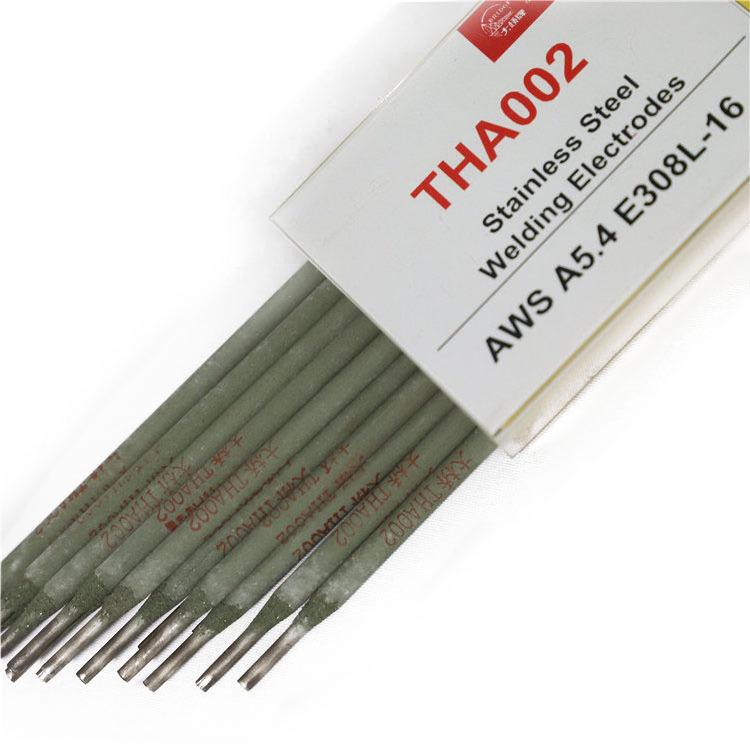

Bridge Brand electrode E308L-16 A002 Stainless Steel Welding

Bridge Brand electrode E308L-16 A002 Stainless Steel Welding

APPLICATIONS:

It is suitable for welding low carbon 0 0cr18ni9 stainless steel structure, also can be used to the corrosion resistance of stainless steel structure, such as the 0cr19ni11ti , whose working temperature below 300 ℃, it is mainly used for manufacture of synthetic fiber, fert ilizer, oil and other equipment.

FEATURES:

THA002 is a coated rutile type of ultra-low carbon Cr18Ni9 stainless steel electrode.Both AC and DC can be used and can be all-position welding. It can reach  excellent welding performance, stable arc, little spatter, easy slag removal and good weld appearance. The deposited metal has good resistance to intergranular corrosion.

ATTENTION:

1. Electrode must be approved by 320-350 ℃ for 1 hour b efore welding, dry the e lectrode when use it.

2. The rust, oil, water and other impurities of the weld must be removed before welding.

3. Recommended DC power supply, because AC welding ha s a shallow penetration, the current should not be too large, in order to avoid the coating redness and cracking.

4. To minimize the amount of heat input and welding electrode oscillating amplitude shoulds not be too big .

5.Preheat and interlayer-temperature should remain below 150 ℃

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project

Tianjin Bridge Welding Materials Group Co., Ltd., founded in 1957, is one of the largest welding consumables manufacturing enterprises in China. In the past half century, "BRIDGE " welding consumables sell well in more than 60 countries and regions. "BRIDGE”welding consumables has 4 categories, 500 types more,including covered electrodes (SMAW), solid wire/Rod (GMAW & GTAW), flux-cored wire/Rod (FCAW) and sub arc wire/strip & flux (SAW/ESW). They are for welding steel of non-alloy & fine grain steel, creep resistant & weatherproof steel, stainless steel, surfacing welding, cast iron, Ni & Ni-alloy steel, AI & Al-alloy steel, Cu & Cu-alloy steel and other special welding & cutting. Our products are widely used in construction, shipbuilding and offshore, land traffic and aerospace, boiler and pressure vessel, energy, household appliance, machinery manufacturing,military industries and many other fields.

Keeping improvement and development for product technology and quality continually, which always make us the leader in welding consumables industry. Tianjin Bridge Welding Materials Group Co., Ltd. Passed ISO9001, ISO14001, OHSAS18001 and ISO5001 approvals. Our products of shipbuilding & offshore are approved by ABS, BV, CCS, DNV.GL, LR, NK, KR, RINA, RS, BKI and CWB. Main products are approved by CPD-CE, DB-AG and VD-TUV.

Our: Guiding Ideology- "People-oriented, pursuing sustainable development" Quality policy- "pursuing perfect quality, establishing a good corporation reputation, with excellent quality and service" Principle- "Customers' satisfaction is the first"

We are the professional and perfect partner

of yours in welding consumables.

Q: what is delivery time / lead time ?

A: 30 days

Q: what is your minimum order ?

A: 5000kgs

Q: what is your payment term ?

A: 1- 30% down payment for order confirmation, 70% before shipment.

2- 100% at sight LC

Q: can we visit your factory ?

A: yes you can at your free time.
