Quick Details
-
surface treatment:
-
Sand plating,CNC line,Polish
-
Thickness:
-
6.5~6.7MM,6.8-7.0MM
-
Advantage:
-
Teeth Harden
-
Material:
-
1023,1045steel,Mn16
-
Technology:
-
Hobbing,forging,stamping
-
Color:
-
Print,self color
-
Trip distance:
-
20000KM
-
Tooth profile:
-
Spur gear
-
Brand:
-
Qidong
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Qidong
-
Model Number:
-
zongshen
-
surface treatment:
-
Sand plating,CNC line,Polish
-
Thickness:
-
6.5~6.7MM,6.8-7.0MM
-
Advantage:
-
Teeth Harden
-
Material:
-
1023,1045steel,Mn16
-
Technology:
-
Hobbing,forging,stamping
-
Color:
-
Print,self color
-
Trip distance:
-
20000KM
-
Tooth profile:
-
Spur gear
-
Brand:
-
Qidong

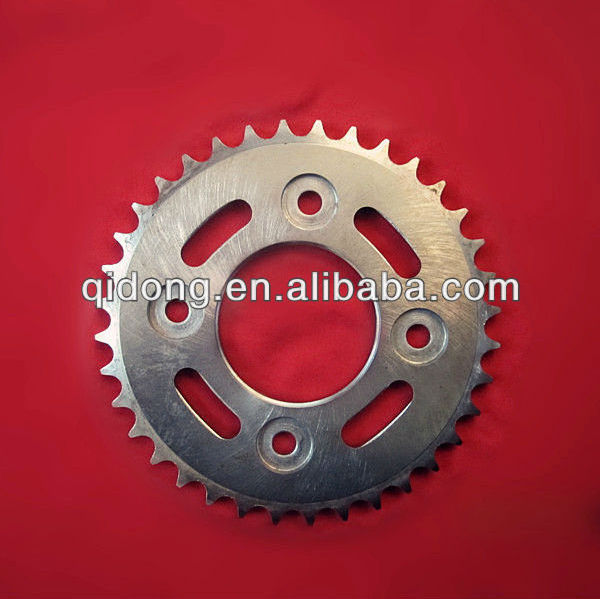

zongshen parts atv sprocket 250cc
- Product;zongshen motorcycle sprocket
- Brand:Qidong
- 10Years of production experience
-
Type diversification
-
We can Custome any Type you need
-
Life Time:10 Years
Buying tips
- The most popular, the low speed, small power, can choose the A3steel
- Carburizing, quenching,tempering, HRC50 ~ 60 have impact load, Teeth more than 25, can choose 35 # steel
- With fire, 160 ~ 200HB requirements wear resisting, no violent impact, can chose 45 #steel
We also have specification for bajaj and all indian models
|
Product name |
Motorcycke sprocket,chain gear |
|
Suitable for market |
North America ,South America , Southeast Asia , Africa ,Mid east,
|
|
Specification |
Rear gear:34T 35T 36T 37T 38T .....etc. |
|
Front gear:12T 13T 14T 15T 16T ....etc |
|
|
415 415H 420 420H 428 428H 520 520H 525 530 530H 630 |
|
|
Material |
A3steel,1045#steel,16Mn |
|
Heat treatment |
high-frequency hardening , carburization |
|
Surface treatment |
Sand plating,zinc plating,grind,polish,CNC line |
|
All special color is welcomed |
|
--chain--
main specification: 415 415H 420 420H 428 428H 520 520H 525 530 530H 630
A style and B style
roller chain:RS series,RO series,RF series
silent chain:SC3(CL06),Pitch is 9.525
conveyor chain:C2040,C2060,CA650
Leaf chain;AL422,BL546,LH0822,LL1044
TOP chain:TT,TS,TP
usual dimension
|
Chain model |
Pitch ( mm ) |
Roller sdiameter |
Width between inner plates |
Pin diameter |
Inner plate depth |
Ultimate tensile strength |
|
415 |
12.7 |
7.75 |
5.1 |
3.96 |
10.4 |
11.6 |
|
420 |
12.7 |
7.77 |
6.35 |
3.96 |
12 |
16 |
|
428 |
12.7 |
8.51 |
7.75 |
4.45 |
12 |
17.8 |
|
428H |
12.7 |
8.51 |
7.94 |
4.51 |
12 |
20.6 |
|
520 |
15.875 |
10.16 |
6.35 |
5.08 |
15 |
26.5 |
|
530 |
15.875 |
10.16 |
9.40 |
5.08 |
15 |
26.5 |
--our technology--
Heat treatment process
Electric galvanizing process
Nickel plating process
Plating bake process
Black turn grinding process
--our market--
Eastern Asia, Southeast Asia, Mid East, Africa, South America,North America....etc.
-- factory visit--
--product show--
--production line--
