Quick Details
-
Power:
-
55kw
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Driving type:
-
4 Wheel Driver
-
Capacity:
-
3.5m3
-
Color:
-
Customer's Requirement
-
Advantage:
-
High Productivity
-
Application:
-
Construction Industry
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
4200 kg
-
Dimension(L*W*H):
-
7200*2550*3400mm
-
Power:
-
55kw
-
Product name:
-
Self-loading Concrete Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Driving type:
-
4 Wheel Driver
-
Capacity:
-
3.5m3
-
Color:
-
Customer's Requirement
-
Advantage:
-
High Productivity
-
Application:
-
Construction Industry
We have different capacity
0.8m3, 1.2m3, 1.8m3, 2.0m3, 2.4m3, 3.5m3,4m3, 6.5m3
etc.

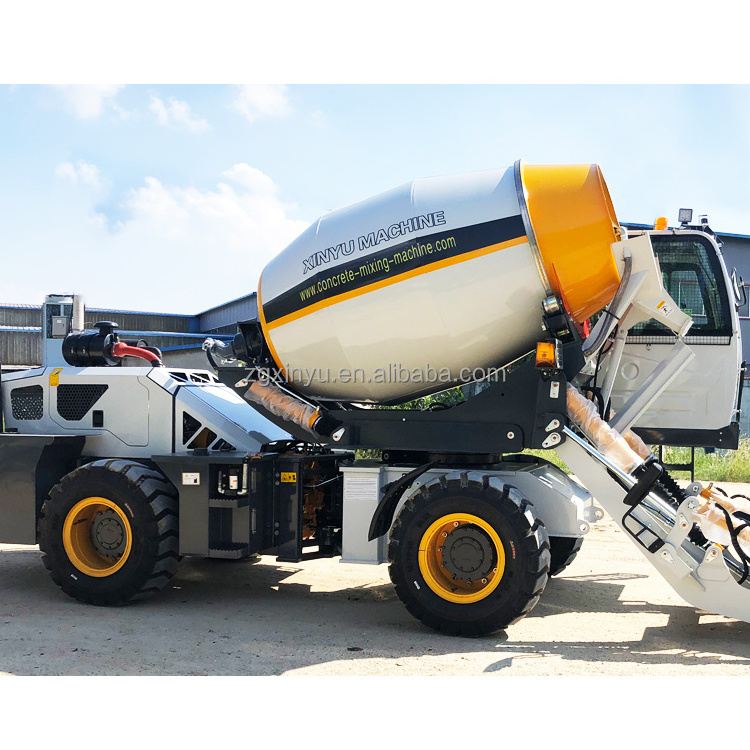

JBC series concrete mixer is the self loading concrete mixer with one mixing motor and one lifting motor.
The concrete mixer is feeding the material by the cone-shape motor transmission, the up and down of the hopper and the stir bin turn and reversal is controlled by the electrical appliance.
Technical Parameters of Self Loading Concrete Mixer :
|
Model
|
JBC1.2
|
JBC2.6
|
JBC3.5
|
JBC5.5
|
|
Drum geometrical capacity
|
1,700 L
|
3,580 L
|
4,740 L
|
7,800 L
|
|
Discharge Capacity
|
1,200 L
|
2,600 L
|
3,500 L
|
5,500 L
|
|
Engine Brand
|
Yuchai
|
Yuchai
|
Yuchai
|
Yuchai
|
|
Rated Power
|
55 kw
|
78 kw
|
85 kw
|
110 kw
|
|
Gear
|
4 forward 4 back
|
4 forward 4 back
|
4 forward + 4 back
|
4 forward + 4 back
|
|
Fuel tank
|
63 L
|
75 L
|
75 L
|
75 L
|
|
Water tank
|
400 L
|
500 L
|
620 L
|
860 L
|
|
Water supply
|
Time relay
|
Time relay
|
Time relay
|
Time relay
|
|
Wheelbase
|
2,400 mm
|
2,800 mm
|
2,900 mm
|
3350 mm
|
|
Drive Form
|
Torque converter
|
Torque converter
|
Torque converter
|
Torque converter
|
Self loading concrete mixer:
1. Italian technology with improvement provides stable quality and low malfunction rate.
2. The mixing drum uses wear resistant alloy steel for longer service life.
3. Its patented obligatory double-spiral mixing screws ensures evenly mixing and complete unloading.
4. Together with the high accuracy electric weighting unit, it can supply various types of qualified concrete for projects of roads, bridges, tunnels, houses, water tunnels, etc.
5. The compact design makes it flexible in narrow space and suitable for mountainous and country areas.
6. Self loading concrete mixers adopt 4*4 driving system and off road tires which enable good pass-ability on rough terrains, thus it is widely used in various projects.
7. High efficiency. The truck only takes 12 minutes to finish one batch of concrete.
Its capacity is up to 200 cbm per day.
8. Convenient. The drum slews 270 degrees when unloading.
9. Low cost. The truck automatically fulfill loading, mixing and unloading, replacing the labor of
4-6 workers.
10. Easy operation. The extensive use of hydraulic system makes it easy to operate.
