Quick Details
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
40 KG
-
Name:
-
curved semi automatic desktop cylinder screen printing machine
-
Application:
-
glass plastic osmetics cup bottle logo
-
Type:
-
Automatic Screen Printing Machine
-
Product name:
-
cylinder silk screen printing machine for round plastic glass tube
-
Keywords:
-
cosmetics screen printing machine
-
Printing type:
-
Automtic Screen Printing Machine
-
Printing products:
-
Curved
-
Function:
-
cosmetic tube printing machine
-
Printing Area:
-
120*160mm
-
Key words:
-
screen printing machine for plastic cup
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V
-
Place of Origin:
-
Shanghai, China
-
Weight:
-
40 KG
-
Name:
-
curved semi automatic desktop cylinder screen printing machine
-
Application:
-
glass plastic osmetics cup bottle logo
-
Type:
-
Automatic Screen Printing Machine
-
Product name:
-
cylinder silk screen printing machine for round plastic glass tube
-
Keywords:
-
cosmetics screen printing machine
-
Printing type:
-
Automtic Screen Printing Machine
-
Printing products:
-
Curved
-
Function:
-
cosmetic tube printing machine
-
Printing Area:
-
120*160mm
-
Key words:
-
screen printing machine for plastic cup

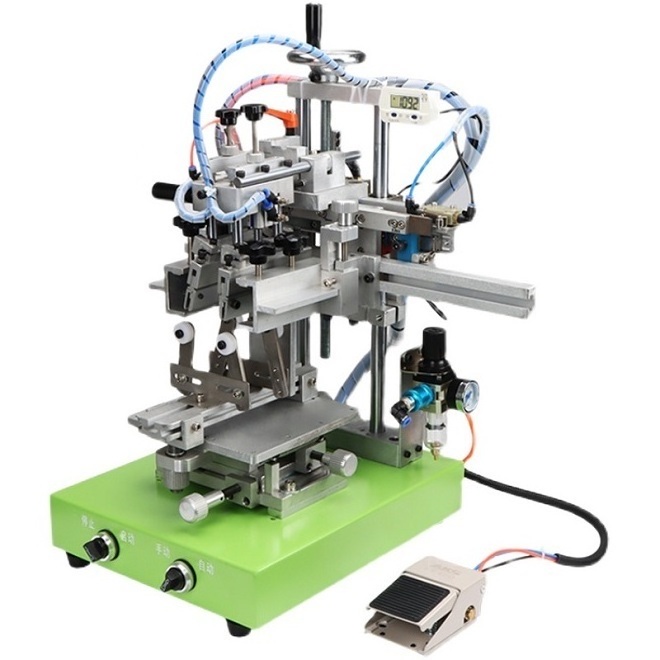

automatic cylinder silk screen printing machine for round plastic glass lip silicone tube label tube paper tube
Scope of application: It is suitable for plastic packaging, glass bottles, stainless steel cups and other products, and screen printing on the entire circumferential surface of circular products with large diameters.
Features:
1. Microcomputer control operation, high degree of automation, simple and convenient operation.
2. Equipped with an automatic counter, it has the function of printing on circular and conical surfaces.
3. Simple operation, automatic ink scraping, ink return, workbench lifting, and balanced scraper to ensure balanced printing pressure.
4. The printing stroke and speed are adjustable to meet different printing requirements.
5. The scraper part can be lifted independently, making it easy to replace and clean the screen frame.
6. The workbench and screen frame can be fine-tuned front and back, left and right, up and down, with high printing precision and convenient and fast adjustment.
Model 1 ( Diameter of round bottle(mm)<100)
Model 2 ( Diameter of round bottle(mm)>100)
| ProductName | curved semi automatic desktop screen printing machine for round glass plastic cosmetics cup bottle |
| drive system | pneumatic |
| air pressure intput | 5-6bar |
| size(mm) | 570*520*630 |
| Maximum screen(mm) | 250*400 |
| Diameter of round bottle(mm) | 10-100 |
| up/down stroke(mm) | 130 |
| Weight(kg) | 80 |
| printing speed | 1200piece(h) |
| Machine name | Curved screen printing machine-400 |
| Max printing size | 120*385 mm |
| Voltage | 220v 50hz single phase |
| Power | 0.06 kw |
| Barometric pressure | 5 bar |
| Machine size | 960*900*1280 mm |
| Machine weight | 130 kg |
